Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JD7509ASWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
- |
JD | Tray | Obsolete | SP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
PLKB3120SWITCH KEYLK 2POS SPDT 500MA 30V |
0 |
|
- |
PLK | Tray | Obsolete | SPDT | 2 | On-On | Not Specified | 500mA (DC) | - | 30 V | Flat Key | 1 only | 90° | Brass | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | -20°C ~ 65°C |
|
|
PLKB8321SWITCH KEYLK 3POS SPDT 500MA 30V |
0 |
|
- |
PLK | Tray | Obsolete | SPDT | 3 | On-On-Off | Not Specified | 500mA (DC) | - | 30 V | Flat Key | All | 180° | Brass | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | -20°C ~ 65°C |
|
|
PLKB3220SWITCH KEYLK 2POS SPDT 500MA 30V |
0 |
|
- |
PLK | Tray | Obsolete | SPDT | 2 | On-On | Not Specified | 500mA (DC) | - | 30 V | Flat Key | All | 90° | Brass | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | -20°C ~ 65°C |
|

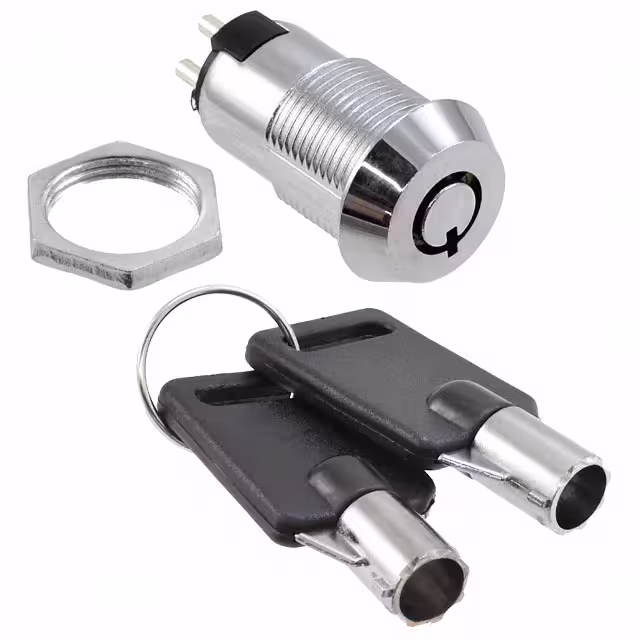

KO104A10001SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104A10002SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104A10003SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104A10004SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104A10005SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104B10002SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104B10003SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104B10004SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104B10005SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104B10006SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104B10007SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104B10008SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
KO104B10009SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
83518001SWITCH KEYLOCK |
0 |
|
Datasheet |
83518 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Solder Lug | - | - | - |
|
|
JD83072SWITCH KEYLOCK 2POS SPST 4A 125V |
0 |
|
- |
JD | Tray | Active | SPST | 2 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | - | 90° | - | Silver | Panel Mount | - | Circular - 18.70mm Dia | Dust Proof Shutter | - |
-10 SERIES.jpg)
|
A22RK-2ML-10SWITCH KEYLCK 2POS SPST 10A 120V |
0 |
|
Datasheet |
A22RK | Bulk | Obsolete | SPST-NO | 2 | Off-On | Not Specified | 10A (AC) | 120 V | - | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 60°C |
