Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

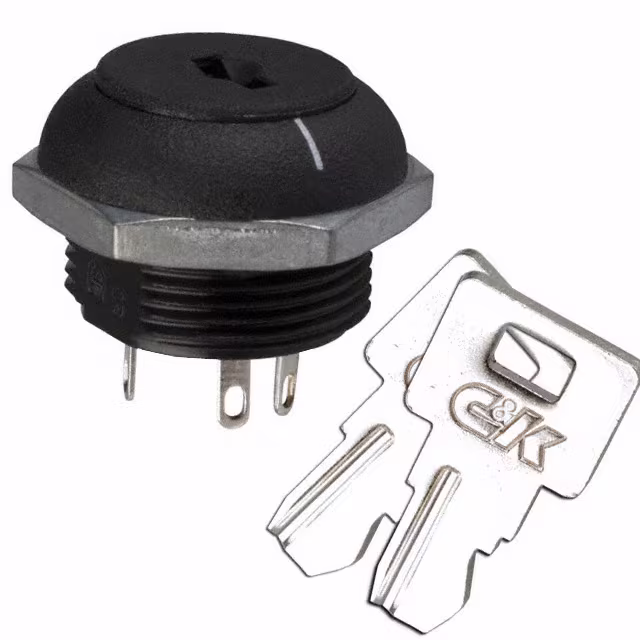

P101132WM03NQ2SWITCH KEY 2POS SPDT 4A 125V 4PC |
0 |
|
Datasheet |
P | Tray | Obsolete | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 65°C |
|
H101132C205NQSWITCH KEYLCK 2POS SPDT 12A 125V |
0 |
|
Datasheet |
H | - | Obsolete | SPDT | 2 | On-On | Not Specified | 12A (AC), 1A (DC) | 125 V | 125 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

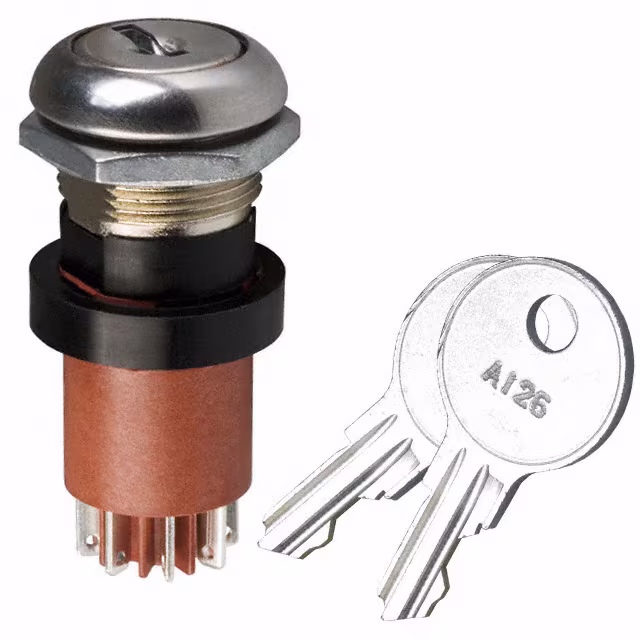

W201132C205AQSWITCH KEYLOCK 2POS DPDT 4A 125V |
0 |
|
Datasheet |
W | - | Obsolete | DPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 19.30mm Dia | - | - |
|
|
H201132C205NQSWITCH KEYLCK 2POS DPDT 12A 125V |
0 |
|
Datasheet |
H | - | Obsolete | DPDT | 2 | On-On | Not Specified | 12A (AC), 1A (DC) | 125 V | 125 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

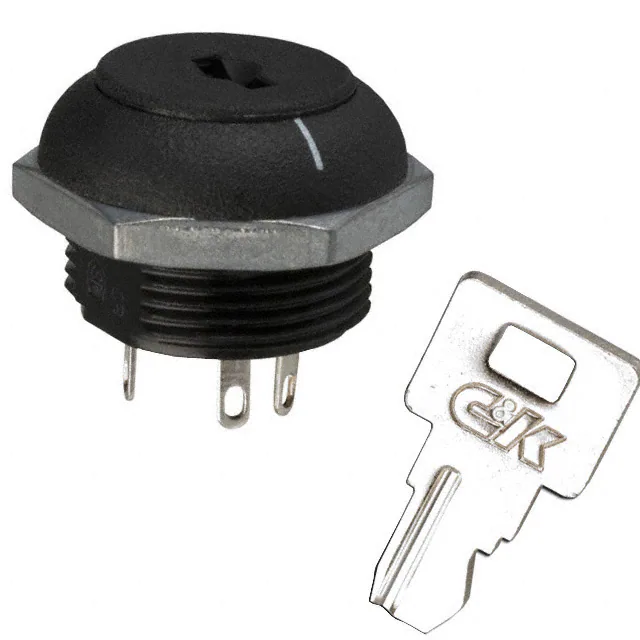

P201133WM03NQ2SWITCH KEYLOCK 2POS DPDT 4A 125V |
0 |
|
Datasheet |
P | Tray | Obsolete | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 65°C |
|
|
W200132C205AQSWITCH KEYLOCK 3POS DP3T 4A 125V |
0 |
|
Datasheet |
W | - | Obsolete | DP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 19.30mm Dia | - | - |
|

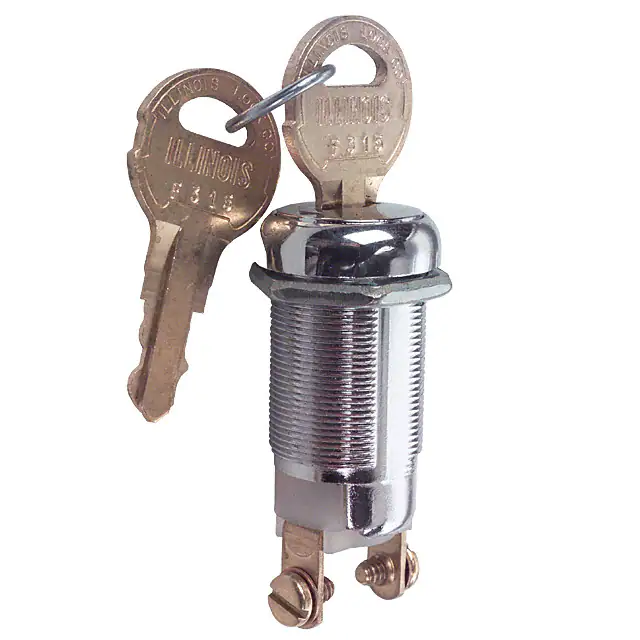

SWK123F315SWITCH KEYLOCK 2POS SPST 5A 115V |
0 |
|
Datasheet |
SWK12 | Bulk | Active | SPST | 2 | On-Off | Non-Shorting (BBM) | 5A (AC), 15A (DC) | 115 V | 24 V | Flat Key | 1 only | 90° | Silver (Ag) | - | Panel Mount | Screw Terminal | Circular - 19.20mm Dia | - | -30°C ~ 85°C |
|
|
SKT132GAEL01SWITCH KEYLK 2POS SPDT 0.4VA 20V |
0 |
|
Datasheet |
SKT | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | All | 80° | - | Gold | Panel Mount | Solder Lug | Circular - 16.20mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
SKT131GAEL01SWITCH KEYLK 2POS SPDT 0.4VA 20V |
0 |
|
Datasheet |
SKT | Bulk | Obsolete | SPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 80° | - | Gold | Panel Mount | Solder Lug | Circular - 16.20mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
164J0A11SWITCH KEYLOCK 2POS SPDT 5A 250V |
0 |
|
Datasheet |
Command | Bulk | Active | SPDT | 2 | On-Mom | Not Specified | 5A (AC/DC) | 250 V | 24 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 7.95mm Dia | - | -20°C ~ 50°C |
|
|
164J3C22SWITCH KEYLOCK 3POS DPDT 5A 250V |
0 |
|
Datasheet |
Command | Bulk | Active | DPDT | 3 | On-On-On | Not Specified | 5A (AC/DC) | 250 V | 24 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 7.95mm Dia | - | -20°C ~ 50°C |
|
|
164J2A22SWITCH KEYLOCK 2POS DPDT 5A 250V |
0 |
|
Datasheet |
Command | Bulk | Obsolete | DPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 250 V | 24 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 7.95mm Dia | - | -20°C ~ 50°C |
|
|
164J2B22SWITCH KEYLOCK 2POS DPDT 5A 250V |
0 |
|
Datasheet |
Command | Bulk | Active | DPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 250 V | 24 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 7.95mm Dia | - | -20°C ~ 50°C |
|

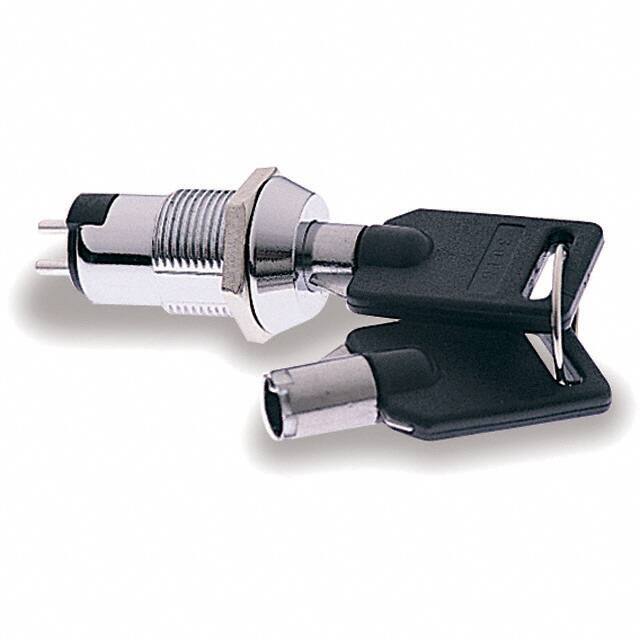

KO104B10001SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | - |
|
|
165J2A11SWITCH KEYLOCK 2POS SPDT 5A 250V |
0 |
|
Datasheet |
Command | Bulk | Obsolete | SPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 250 V | 24 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 7.95mm Dia | Oil-Tight | -20°C ~ 50°C |
|
CKL12ATW01-077SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Obsolete | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12BFW01-077SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Obsolete | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-077SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Obsolete | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
JD7509BSWITCH KEYLOCK 3POS DP3T 4A 125V |
0 |
|
- |
JD | Bulk | Obsolete | DP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7509ESWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
- |
JD | Tray | Obsolete | SP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 and 3 | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
