Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2484-02-BXSWITCH KEYLCK 2POS SPST 175A 36V |
59 |
|
Datasheet |
2484 | Bulk | Active | SPST | 2 | Off-On | Not Specified | 175A (DC) | - | 36 V | Flat Key | - | 45° | Silver Alloy | Silver | Panel Mount | Stud | - | - | - |
|
95521-BSWITCH KEYLOCK 3POS 70A 12V |
33 |
|
Datasheet |
95 | Bulk | Active | - | 3 | Off-On-Mom | Not Specified | 70A (DC) | - | 12 V | Flat Key | 1 only | - | Silver (Ag) | Silver | Panel Mount | Screw Terminal | - | - | - |
|
956-4141SWITCH KEYLOCK 4POS 10A 12V |
32 |
|
Datasheet |
956 | Bulk | Active | - | 4 | On-Off-On-Mom | Not Specified | 10A (DC) | - | 12 V | Flat Key | 2 only | - | Copper | - | Panel Mount | Screw Terminal | - | - | - |
|
|
14-415.036KSWITCH KEYLK 2POS DPST 100MA 42V |
38 |
|
Datasheet |
14 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 100mA (AC/DC) | 42 V | 42 V | Flat Key | 1 only | 90° | - | - | Panel Mount | PC Pin, Solder Lug | Circular - 30.50mm Dia | IP65 | -25°C ~ 55°C |
|
|
PCF7945AA/CABC0913SWITCH KEYLOCK |
41,535 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1571487-1SWITCH KEYLOCK 2POS SPST 6A 125V |
0 |
|
Datasheet |
- | Bulk | Active | SPST | 2 | Off-On | Not Specified | 6A (AC) | 125 V | - | Flat Key | Center | 36° | Brass | Silver | Panel Mount | Wire Leads | - | - | -18°C ~ 65°C |
|
HDI3-2B-1-BSWITCH KEYLOCK 2POS SPST 10A 12V |
195 |
|
Datasheet |
HDI3 | Bulk | Active | SPST | 2 | On-Off | Not Specified | 10A (DC) | - | 12 V | Flat Key | 2 only | - | Bronze | - | Panel Mount | Screw Terminal | Circular - 19.00mm Dia | - | - |
|

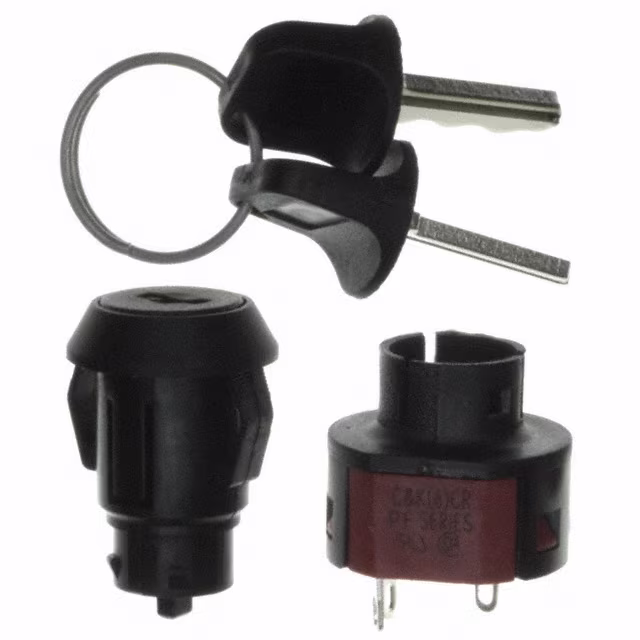

PF011UEBM03KQ22SWITCH KEYLOCK 2POS SPDT 4A 125V |
114 |
|
Datasheet |
PF | Tray | Obsolete | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount, Snap-In | Solder Lug | Circular - 11.81mm Dia | Epoxy Sealed Terminals | - |
|
M6K-A20S1-ASWITCH KEYLOCK 2POS SPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | SPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | All | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A20S2-BSWITCH KEYLOCK 2POS DPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | DPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Left | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A22S2-ASWITCH KEYLOCK 2POS DPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | DPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Left | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
KSL25K2-1125mm SELECTOR SWITCH |
1,990 |
|
Datasheet |
K | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | - | 6A (AC), 3A (DC) | 250 V | 125 V | Flat Key | All | 90° | - | - | Panel Mount | Screw Terminal | Circular - 25.00mm Dia | IP40 | -25°C ~ 50°C |
.jpg)
|
M6K-B20S2-CSWITCH KEYLOCK 2POS DPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | DPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Right | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-B20S1-BSWITCH KEYLOCK 2POS SPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | SPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Left | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
.jpg)
|
M6K-C20S1-CSWITCH KEYLOCK 2POS SPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | SPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Right | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-C20S2-BSWITCH KEYLOCK 2POS DPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | DPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Left | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-C20S2-ASWITCH KEYLOCK 2POS DPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | DPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | All | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-C22S2-ASWITCH KEYLOCK 2POS DPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | DPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Left | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A30S2-GSWITCH KEYLOCK 3POS SPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | SPDT | 3 | On-On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Left | 45° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
M22K-20SB20-BSWITCH KEYLOCK 2POS DPST 6A 230V |
750 |
|
Datasheet |
M22 | Bulk | Active | DPST | 2 | - | - | 6A (AC), 3A (DC) | 230 V | 24 V | Flat Key | All | 45° | Silver-Nickel Alloy | Silver | - | Screw Terminal | Circular - 22.30mm Dia | - | - |
