Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKL12ATW01-040SWITCH KEYLOCK 2POS SPDT 3A 250V |
160 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
KO129BA126SWITCH KEYLOCK 3POS SP3T 4A 125V |
334 |
|
Datasheet |
KO | Bulk | Active | SP3T | 3 | On-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45°, 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO129B606SWITCH KEYLOCK 3POS SP3T 4A 125V |
198 |
|
Datasheet |
KO | Bulk | Active | SP3T | 3 | On-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45°, 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
CKL12AFW01-016SWITCH KEYLOCK 2POS SPDT 3A 250V |
387 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
Y1907U2CF07NQSWITCH KEYLOCK 3POS SP3T 4A 125V |
160 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
LK6RGB126M3SWITCH KEYLOCK 2POS SPDT 4A 125V |
542 |
|
Datasheet |
LK | Bag | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
Y1011U2C203NBESWITCH KEYLK 2POS SPDT 0.4VA 20V |
209 |
|
Datasheet |
Y | Bulk | Active | SPDT | 2 | On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | All | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
SK14DGMG01SWITCH KEYLK 3POS SP3T 0.4VA 28V |
128 |
|
Datasheet |
SK | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 45° | Beryllium Copper | Gold | Panel Mount, Snap-In | Solder Lug | Circular - 14.50mm Dia | Antistatic | -40°C ~ 85°C |
|
Y1011U2R203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
2,189 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | - |
|

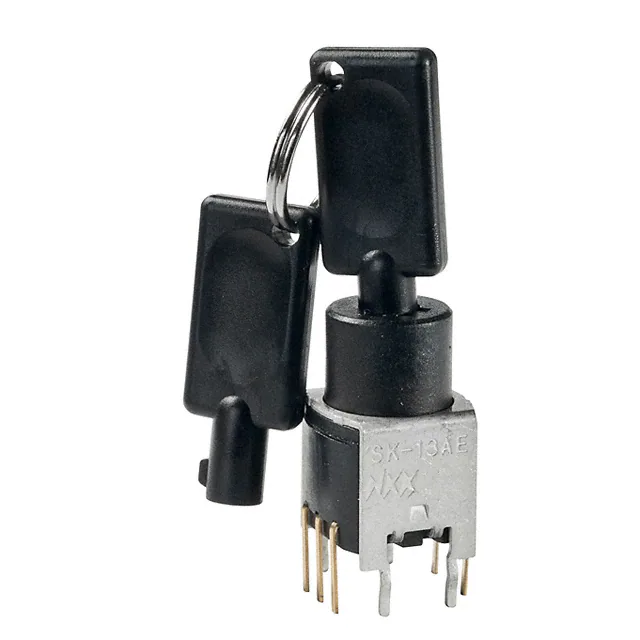

SK13AEG13SWITCH KEYLK 3POS SP3T 0.4VA 28V |
127 |
|
Datasheet |
SK | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 45° | Beryllium Copper | Tin | Through Hole | PC Pin | - | Antistatic, Process Sealed | -25°C ~ 70°C |
|
Y1907U2C207NQSWITCH KEYLOCK 3POS SP3T 4A 125V |
1,979 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
Y201132C201NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
199 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
CKM13ETW01SWITCH KEYLOCK 3POS SPDT 3A 250V |
7 |
|
Datasheet |
CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
YM061U2C2WCNQSWITCH KEYLOCK 2POS SPST 4A 125V |
2,404 |
|
Datasheet |
YM | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 11.99mm Dia | - | - |
|

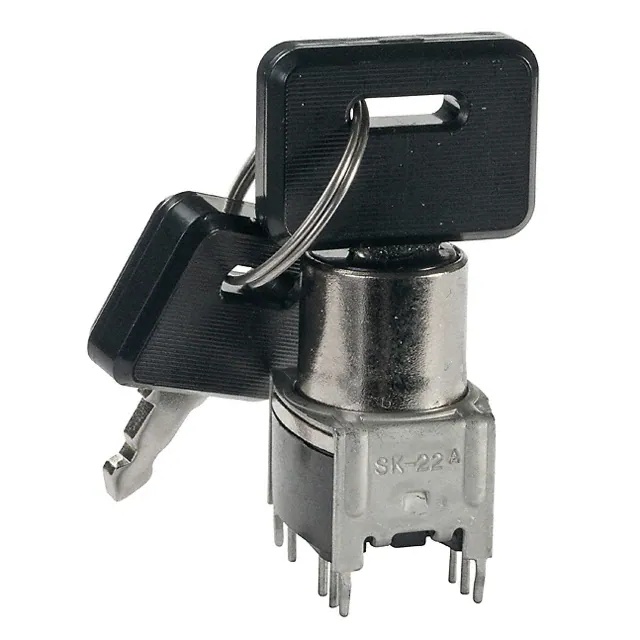

SK22AG13SWITCH KEYLK 2POS DPDT 0.4VA 28V |
249 |
|
Datasheet |
SK | Bulk | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 90° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
Y100822C203NQSWITCH KEYLOCK 3POS SP3T 4A 125V |
214 |
|
Datasheet |
Y | Bulk | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
CKL13EFW01SWITCH KEYLOCK 3POS SPDT 3A 250V |
6 |
|
Datasheet |
CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL13EFW01-002SWITCH KEYLOCK 3POS SPDT 3A 250V |
3 |
|
Datasheet |
CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
H2011U2F205NQSW KEY 2POS DPDT 12A 125V 5PC |
176 |
|
Datasheet |
H | Tray | Active | DPDT | 2 | On-On | Not Specified | 12A (AC), 1A (DC) | 125 V | 125 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
YF01132C203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
220 |
|
Datasheet |
YF | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 11.99mm Dia | Epoxy Sealed Terminals | - |
Keylock Switches Electronic Components
Explore Keylock Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
