Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MRK 286 B-2KEY SWITCH, ON-ON |
100 |
|
Datasheet |
MRK | Box | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 2 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 286 B-1KEY SWITCH, ON-ON |
100 |
|
Datasheet |
MRK | Box | Active | SPDT | 1 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 286 A-1KEY SWITCH, OFF-ON |
89 |
|
Datasheet |
MRK | Box | Active | SPST | 1 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 202-1KEY SWITCH, OFF-ON |
100 |
|
Datasheet |
MRK | Box | Active | SPST | 1 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 202-2KEY SWITCH, OFF-ON |
96 |
|
Datasheet |
MRK | Box | Active | SPST | 2 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 2 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 202-AKEY SWITCH, OFF-MOM |
98 |
|
Datasheet |
MRK | Box | Active | SPST-NO | 1 | Off-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 2 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 202-DAKEY SWITCH, ON-MOM |
100 |
|
Datasheet |
MRK | Box | Active | SPST-NC | 1 | On-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 2 only | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
MRK 2021 RKEY SWITCH, ON-ON, GOLD PLATED |
99 |
|
Datasheet |
MRK | Box | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | Right | 90° | - | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 70°C |
|
|
K1-101S1S1N2 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
17 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
CKL12AFW01-005SWITCH KEYLOCK 2POS SPDT 3A 250V |
5 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
K1-100S1S1N2 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
50 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K1-101S1S1N1 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
50 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
CKM12BFW01-002SWITCH KEYLOCK 2POS SPDT 3A 250V |
65 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-010SWITCH KEYLOCK 2POS SPDT 3A 250V |
19 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-005SWITCH KEYLOCK 2POS SPDT 3A 250V |
11 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

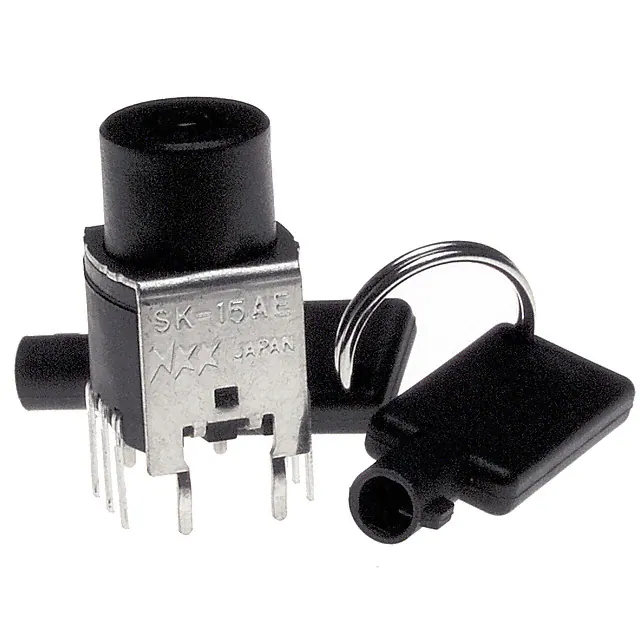

SK15AEG13SWITCH KEYLK 5POS SP5T 0.4VA 28V |
16 |
|
Datasheet |
SK | Bulk | Active | SP5T | 5 | On-On-On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Tubular Key | All | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Antistatic, Process Sealed | -25°C ~ 70°C |
|
CKL12AFW01-003SWITCH KEYLOCK 2POS SPDT 3A 250V |
75 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12AFW01-007SWITCH KEYLOCK 2POS SPDT 3A 250V |
49 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12BFW01-016SWITCH KEYLOCK 2POS SPDT 3A 250V |
25 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12ATW01-037SWITCH KEYLOCK 2POS SPDT 3A 250V |
29 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
Keylock Switches Electronic Components
Explore Keylock Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
