Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A165K-T2M-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
2 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|

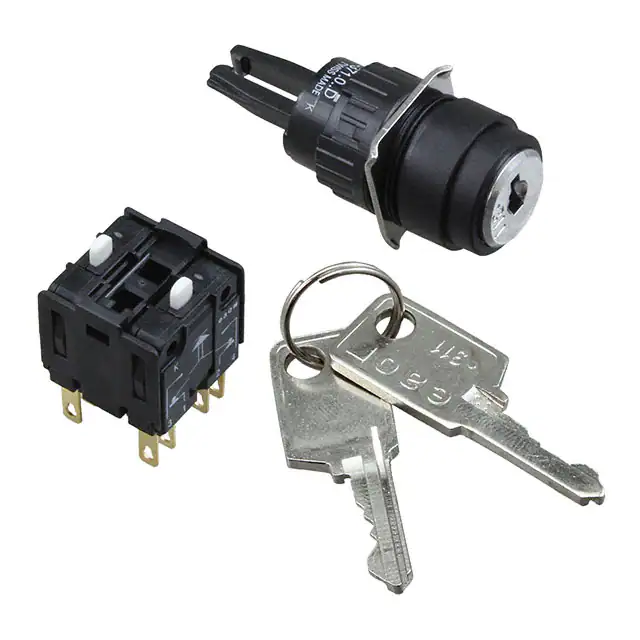

51-371.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V |
2 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | On-Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | Center | 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 | -25°C ~ 55°C |
|
14-236.025KSWITCH KEYLOCK 2POS 4PST 5A 250V |
2 |
|
Datasheet |
14 | Bulk | Active | 4PST-2NO/2NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder Lug | Circular - 22.30mm Dia | IP65 | -25°C ~ 55°C |
|

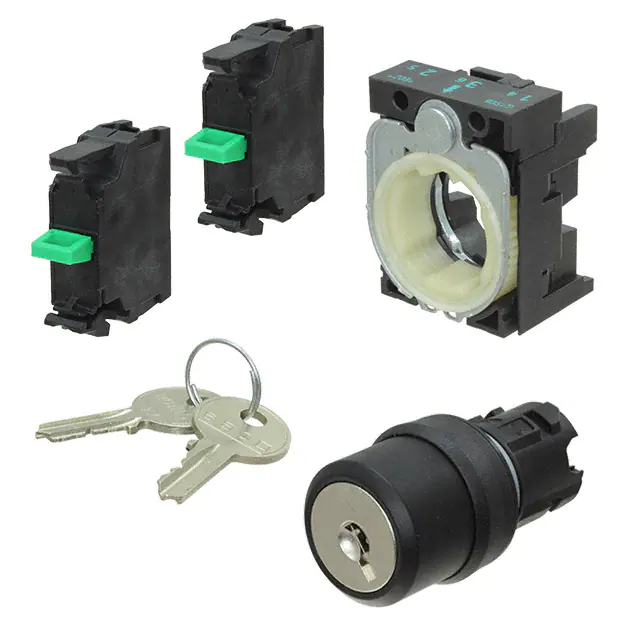

45-190F.1000.113.108SWITCH KEYLCK 3POS DPST 10A 500V |
2 |
|
Datasheet |
45 | Bulk | Active | DPST-NO | 3 | On-Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 45° | Silver (Ag) | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66, IP67, IP69K | -25°C ~ 70°C |
|

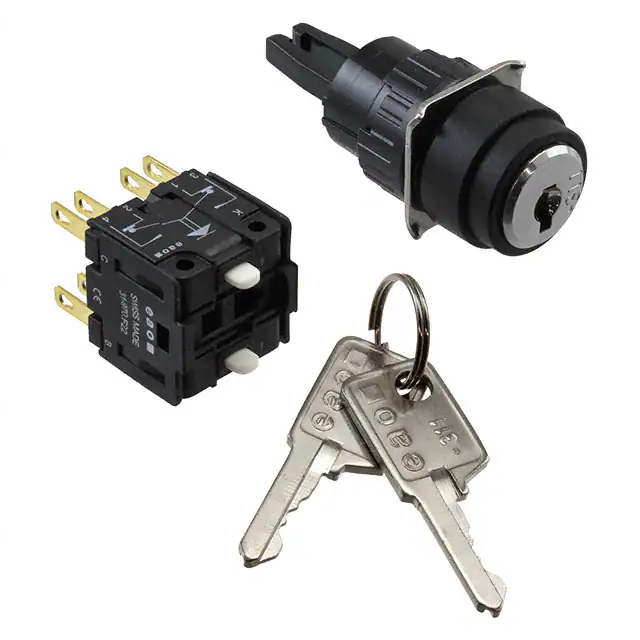

51-372.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V |
3 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | On-Off-Off, On-On-Off | Not Specified | 5A (AC) | 250 V | - | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|
A22TK-2RR-01-K01SWITCH KEYLCK 2POS SPST 10A 110V |
3 |
|
Datasheet |
A22TK | Bulk | Active | SPST-NC | 2 | Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Right | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|

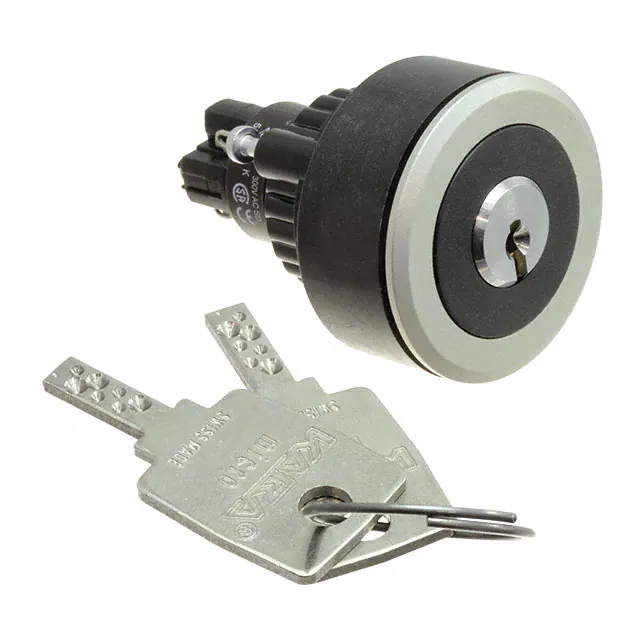

K14-135.22200SWITCH KEYLOCK 2POS DPST 5A 250V |
2 |
|
Datasheet |
14 | Box | Active | DPST-NO/NC | 2 | Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 30.50mm Dia | IP65 | -25°C ~ 55°C |
|
K14-141.22100SWITCH KEYLOCK 2POS DPST 5A 250V |
2 |
|
Datasheet |
14 | Box | Active | DPST-NO/NC | 2 | Off-Mom | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 42° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 30.50mm Dia | IP65 | -25°C ~ 55°C |
|
A22TK-2LR-11-K02SWITCH KEYLCK 2POS DPST 10A 110V |
10 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2RR-21-K05SWITCH KEYLCK 2POS DPST 10A 110V |
4 |
|
Datasheet |
A22TK | Tray | Active | DPST-NO + SPST-NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Right | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2LR-11-K04SWITCH KEYLCK 2POS DPST 10A 110V |
3 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2RL-02-K01SWITCH KEYLCK 2POS DPST 10A 110V |
6 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NC | 2 | On-Off | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Right | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2LL-03-K01SWITCH KEYLCK 2POS 3PST 10A 110V |
3 |
|
Datasheet |
A22TK | Bulk | Active | 3PST-NC | 2 | On-Off | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2LR-03-K03SWITCH KEYLCK 2POS 3PST 10A 110V |
13 |
|
Datasheet |
A22TK | Bulk | Active | 3PST-NC | 2 | Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
|
A22LK-2RLB-22-K01-SJSWITCH KEYLOCK 2POS DPST 3A 240V |
10 |
|
Datasheet |
A22LK | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 3A (AC), 270mA (DC) | 240 V | 250 V | Tubular Key | Right | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | - | -10°C ~ 55°C |
|
SW-R-K11B-ASWITCH KEYLOCK 2POS SPDT 4A 125V |
91 |
|
Datasheet |
SW | Bag | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | - | - | - | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 85°C |
|
SW-R-K13A-ASWITCH KEYLOCK 2POS SPDT 4A 125V |
96 |
|
Datasheet |
SW | Bag | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | - | - | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 85°C |
|
CKL12BFW01-014SWITCH KEYLOCK 2POS SPDT 3A 250V |
16 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-012SWITCH KEYLOCK 2POS SPDT 3A 250V |
13 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
G3PK003SWITCH KEYLOCK |
18 |
|
Datasheet |
- | Bulk | Active | - | - | - | Not Specified | - | - | - | Flat Key | - | - | - | - | - | - | - | - | - |
