Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS5V330DRIC VIDEO SWITCH QUAD SPDT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Video | 2:1 | SPDT | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz (Min) | Bi-Directional, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS5V330RGYRIC VIDEO SWITCH QUAD SPDT 16VQFN |
0 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:1 | SPDT | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz (Min) | Bi-Directional, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-VQFN (4x3.5) |
|
FSUSB104UMXIC USB SWITCH DUAL DPDT 10UMLP |
13,767 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Obsolete | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.4V | - | 720MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UMLP (1.8x1.4) |
|
NLAS7222BMUTAGIC ANALOG SW DPDT USB2.0 10UQFN |
5,878 |
|
- |
- | 10-UFQFN | Tape & Reel (TR) | Obsolete | USB | - | DPDT | 1 | 12Ohm | 3V ~ 3.6V | - | 750MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|

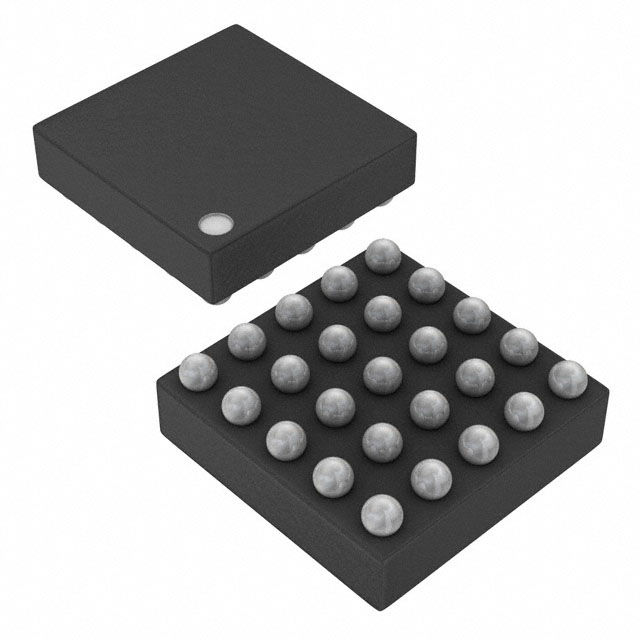

TSU6712YFPRBIC USB SWITCH SP4T 25DSBGA |
0 |
|
Datasheet |
- | 25-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Detection | - | SP4T | 1 | - | 1.65V ~ 3.6V | - | - | I2C, UART, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 25-DSBGA |
|
NL3HS644BFCTAGIC ANLG SWITCH 2:1 4LINE 36WLCSP |
0 |
|
Datasheet |
- | 36-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | - | 2:1 | SPDT | 4 | 9Ohm | 1.65V ~ 4.5V | - | 1.05GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-WLCSP (2.34x2.34) |
|
|
NL3HS644FCTAGIC ANLG SWITCH 2:1 4LINE 36WLCSP |
0 |
|
Datasheet |
- | 36-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | - | 2:1 | SPDT | 4 | 9Ohm | 1.65V ~ 4.5V | - | 1.05GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-WLCSP (2.34x2.34) |
|

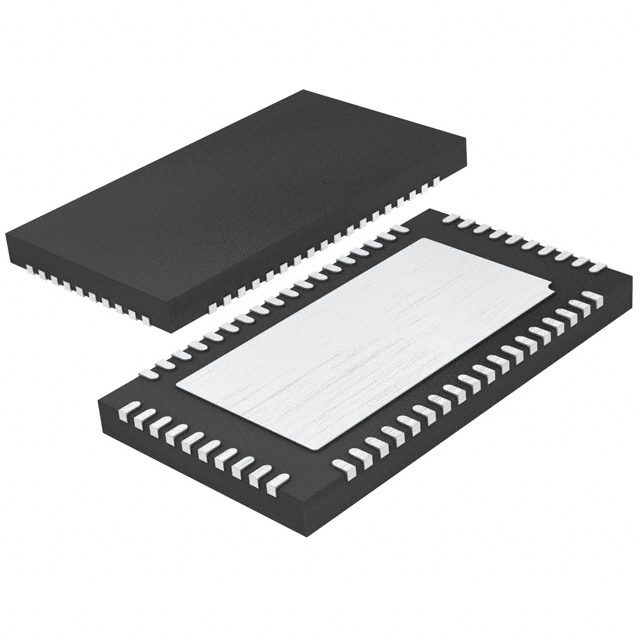

NCN2612MTTWGIC TXRX 1CHAN USB 56WQFN |
0 |
|
Datasheet |
- | 56-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | DisplayPort, PCIe | 2:1 | SPDT | 6 | 13Ohm | 3V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-WQFN (5x11) |
|
|
NCN3612BMTTWGIC TXRX 1CHAN USB 56WQFN |
0 |
|
Datasheet |
- | 56-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | DisplayPort, PCIe | 2:1 | SPDT | 6 | 13Ohm | 3V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-WQFN (5x11) |
|
|
TS5L100RGYRIC ETHERNET SWITCH QUAD 16VQFN |
0 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Networking | 2:1 | SPDT | 4 | 19Ohm | 6V ~ 6.5V | - | 350MHz | 10/100 Base-T | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-VQFN (4x3.5) |
|
GX4201-CDACROSS POINT SWITCH, BIPOLAR |
5,047 |
|
Datasheet |
- | 8-DIP | Bulk | Active | Video | 1:1 | SPST | 1 | - | - | ±4.5V ~ 5.5V | 300MHz | - | 0°C ~ 70°C (TA) | - | - | - | 8-PDIP |
|
ISL54225IRTZIC MULTIPLEXER DUAL 2:1 10TDFN |
32,631 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tube | Obsolete | USB | 2:1 | SPDT | 2 | 20Ohm | 2.7V ~ 5.25V | - | 780MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
MAX4529EPAIC VIDEO SWITCH SPST 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Video | 1:1 | SPST | 1 | 120Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 300MHz | Bi-Directional, Buffered, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
FSUSB31L8XIC USB SWITCH DPST 8MICROPAK |
3,780 |
|
Datasheet |
- | 8-UFQFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPST | 1 | 10Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MicroPak™ |
|
ADG751BRMZ-REEL7IC VIDEO SWITCH SPST 8MSOP |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Video | 1:1 | SPST | 1 | 35Ohm | 1.8V ~ 5.5V | - | 180MHz | T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
FSUSB22QSCXIC USB SWITCH QUAD 2X1 16QSOP |
0 |
|
Datasheet |
- | 16-LSSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 4 | 6.5Ohm | 3V ~ 3.6V | - | 750MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|

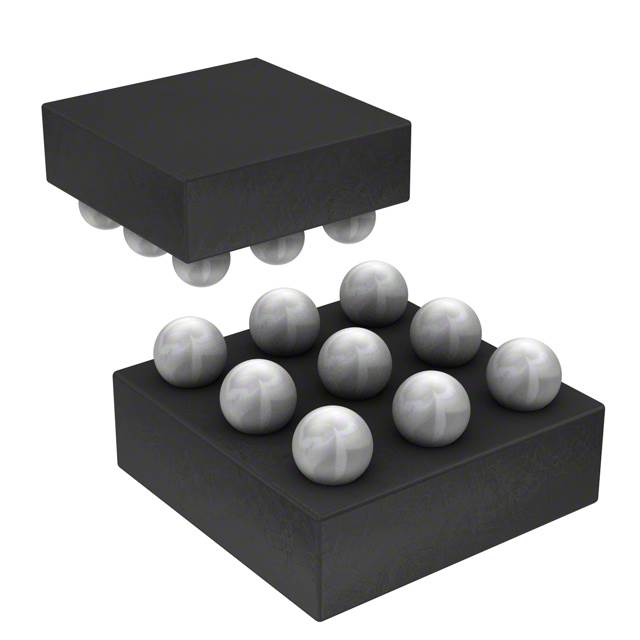

FSUSB242UCXTYPE C USB PROTECT SWITCH |
2,896 |
|
- |
- | 9-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPDT | 2 | 5Ohm (Typ) | 2.7V ~ 5.5V | - | 1GHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-WLCSP (1.2x1.2) |
|
MAX4764EBCAUDIO CLICKLESS SWITCH |
8,595 |
|
Datasheet |
- | 10-WFBGA, CSPBGA | Bulk | Active | Audio | 2:1 | SPDT | 2 | 850mOhm | 1.8V ~ 5.5V | - | 27MHz | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UCSP (2.02x1.54) |
|
|
NL3S22SMUTAGIC SWITCH AUDIO USB DPDT 10UQFN |
359 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Obsolete | Audio, USB | 2:2 | DPDT | 2 | 5Ohm | 2.7V ~ 5.5V | - | - | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
ADG751BRT-REEL7IC VIDEO SWITCH SPST SOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | Video | 1:1 | SPST | 1 | 35Ohm | 1.8V ~ 5.5V | - | 180MHz | T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
