Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSUSB22QSCDPDT, 2 FUNC, 1 CHANNEL, PDSO16 |
4,042 |
|
Datasheet |
- | 16-LSSOP (0.154", 3.90mm Width) | Tube | Obsolete | USB | 2:1 | SPDT | 4 | 6.5Ohm | 3V ~ 3.6V | - | 750MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
TS3V340RGYRIC VIDEO SWITCH QUAD SPDT 16VQFN |
0 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 4 | 6Ohm | 3V ~ 3.6V | - | 500MHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-VQFN (4x3.5) |
|
TS3V340DBQRIC VIDEO SWITCH QUAD SPDT 16SSOP |
0 |
|
Datasheet |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 4 | 6Ohm | 3V ~ 3.6V | - | 500MHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|
TS3V340DGVRIC VIDEO SWIT QUAD SPDT 16TVSOP |
0 |
|
Datasheet |
- | 16-TFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 4 | 6Ohm | 3V ~ 3.6V | - | 500MHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TVSOP |
|
TS3V340DRIC VIDEO SWITCH QUAD SPDT 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 4 | 6Ohm | 3V ~ 3.6V | - | 500MHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS3V340PWRIC VIDEO SWIT QUAD SPDT 16TSSOP |
0 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 4 | 6Ohm | 3V ~ 3.6V | - | 500MHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
SN103642NANALOG INTERFACE |
13,850 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAX9656AEP+IC VIDEO SWIT DUAL SCART 20QSOP |
0 |
|
Datasheet |
- | 20-SSOP (0.154", 3.90mm Width) | Tube | Obsolete | Video | - | - | 2 | - | 2.7V ~ 3.6V | - | - | Buffers, RGB, SCART | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QSOP |
|
FSUSB23BQXDIFFERENTIAL MUX, 2 CHANNEL |
31,000 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Bulk | Obsolete | USB | - | DPDT | 1 | 10Ohm | 3V ~ 3.6V | - | 720MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-DQFN (2.5x3.5) |
|
FSA203MTCXDPDT, PDSO20 |
9,687 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | Audio, USB, Video | - | SPDT, DPDT | 2 | 6Ohm (USB), 5Ohm (Audio) | 3V ~ 5.5V | - | 780MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
NCN2411MTTWGIC TXRX 1CHAN USB 42WQFN |
0 |
|
Datasheet |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 2:1 | SPDT | 4 | 13Ohm | 1.5V ~ 2V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|

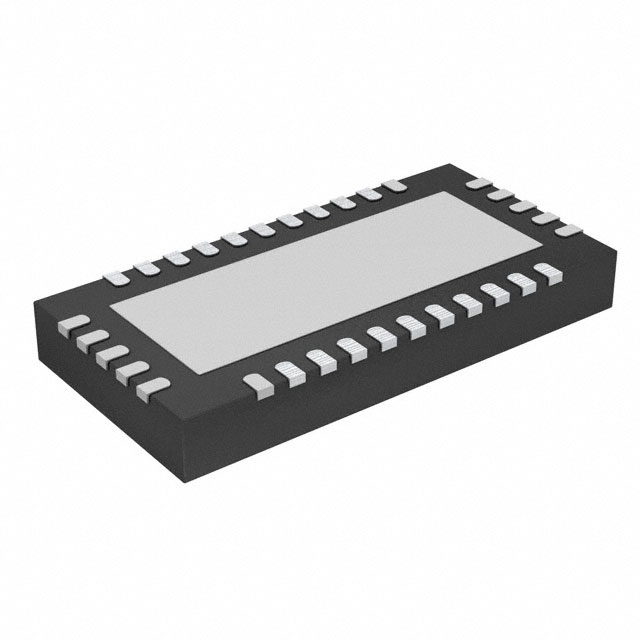

NX5DV715HF,118IC VGA SWITCH 32HWQFN |
2,559 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:1 | - | 2 | 4Ohm (Typ) | 2V ~ 5.5V | - | 600MHz | Buffers, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-HWQFN (3x6) |
|
MAX4574CWICLICKLESS AUDIO/VIDEO SWITCH |
769 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Bulk | Active | Audio, Video | 1:1 | SPST | 11 | 35Ohm | 2.7V ~ 5.25V | - | 150MHz | Clickless, I2C | 0°C ~ 70°C | - | - | - | 28-SOIC |
|
IH5341IJDIH5341 DUAL RF/VIDEO SWITCH |
423 |
|
Datasheet |
- | 14-CDIP (0.300", 7.62mm) | Bulk | Active | Video | 1:1 | SPST | 2 | 300Ohm | - | ±5V ~ 15V | - | Break-Before-Make | - | - | - | Through Hole | 14-CDIP |
|
MAX4540CWPIC MUX DUAL CAL 4-1 CMOS 20-SOIC |
339 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 20-SOIC |
|
FSAV330MTCXIC VIDEO SWITCH QUAD 2X1 16TSSOP |
230 |
|
- |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Video | 2:1 | SPDT | 4 | 10Ohm | 4V ~ 5.5V | - | 300MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
FSUSB23L10XDIFFERENTIAL MUX, 2 CHANNEL |
89,346 |
|
Datasheet |
- | 10-UFQFN Exposed Pad | Bulk | Obsolete | USB | - | DPDT | 1 | 10Ohm | 3V ~ 3.6V | - | 720MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MicroPak™ |
|
|
TS3V340DIC VIDEO SWITCH QUAD SPDT 16SOIC |
469 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Active | Video | 2:1 | SPDT | 4 | 6Ohm | 3V ~ 3.6V | - | 500MHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
FSA3000L10X-F131IC ANLG VIDEO SWITCH 10-MICROPAK |
0 |
|
Datasheet |
- | 10-UFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | - | DPDT | - | 4.8Ohm (USB), 6Ohm (MHL) | 2.7V ~ 4.3V | - | 2.46GHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MicroPak™ |
|
FHP3194IM14XSINGLE-ENDED MUX, 4 CHANNEL |
6,840 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Video | 4:1 | - | 1 | - | 5V ~ 12V | ±2.5V ~ 6V | 800MHz | Shutdown, Disable | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
