Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

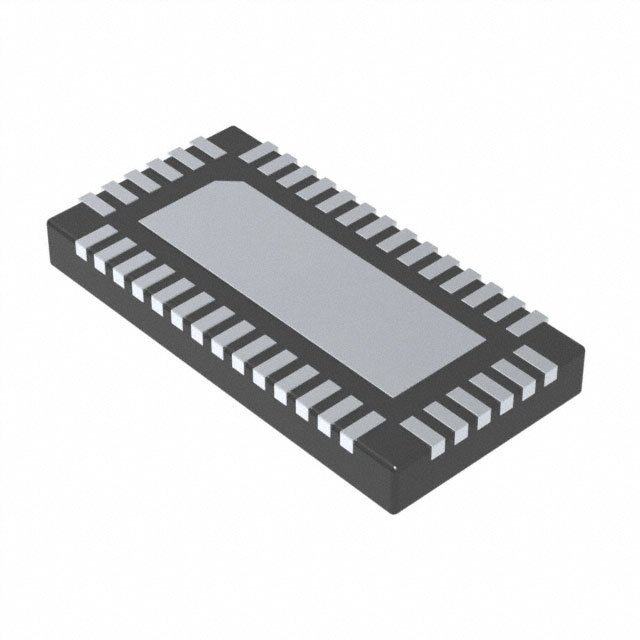

PI3DBS16412ZLCEXPCIE SWITCH W-QFN3060-40 T&R 3.5 |
3,463 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | PCIe 4.0, USB | 2:1 | SPDT | 4 | - | 3.3V | - | 13GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 40-TQFN (3x6) |
|

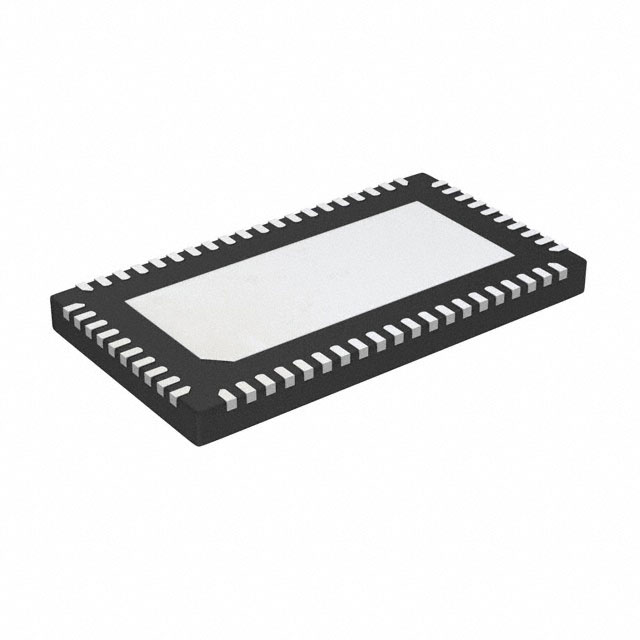

PI3WVR31310AZLEXIC MUX/DEMUX 3:1 15 OHM 60TQFN |
1,357 |
|
Datasheet |
- | 60-WFQFN Exposed Pad | Tape & Reel (TR) | Active | HDMI | 3:1 | - | 1 | 15Ohm | 3V ~ 3.6V | - | 5.4GHz | - | - | - | - | Surface Mount | 60-TQFN (5x9) |
|
TS3DDR3812RUARIC MUX/DEMUX DDR3 1:2 42WQFN |
1,470 |
|
Datasheet |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Memory | 2:1 | - | 12 | 12Ohm | 3V ~ 3.6V | - | 1.675GHz | DDR3 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
MAX4745ELB+TIC SWITCH DUAL SPDT 10UDFN |
3,661 |
|
Datasheet |
- | 10-WFDFN | Tape & Reel (TR) | Active | Audio | 2:1 | SPDT | 2 | 950mOhm | 1.8V ~ 5.5V | - | - | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
ADG751ARTZ-REEL7IC VIDEO SWITCH SPST SOT23-6 |
4,051 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Video | 1:1 | SPST | 1 | 18Ohm | 1.8V ~ 5.5V | - | 300MHz | T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
MAX4740ETE+TIC SWITCH QUAD SPDT 16TQFN |
5,155 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Audio | 2:1 | SPDT | 4 | 900mOhm | 1.6V ~ 5.5V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
LMH6574MAX/NOPBIC VIDEO MULTIPLEXER 4X1 14SOIC |
1,557 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Video | 4:1 | - | 1 | - | 6V ~ 12V | ±3V ~ 6V | 500MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
ADG752BRTZ-REEL7IC VIDEO SWITCH SPDT SOT23-6 |
3,957 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Video | 2:1 | SPDT | 1 | 18Ohm | 1.8V ~ 5.5V | - | 250MHz | T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
MAX4906EFELB+TIC USB SWITCH DUAL 1X2 10UDFN |
6,113 |
|
Datasheet |
- | 10-WFDFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 7Ohm | 2.7V ~ 3.6V | - | 500MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
|
MAX4906FELB+TIC USB SWITCH DUAL 1X2 10UDFN |
12,236 |
|
Datasheet |
- | 10-WFDFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 7Ohm | 3V ~ 3.6V | - | 1GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
MAX14531EEWC+TIC USB SWITCH DP3T 12WLP |
15,150 |
|
Datasheet |
- | 12-WFBGA, WLBGA | Tape & Reel (TR) | Active | Audio, USB | 3:1 | - | 2 | 3Ohm | 2.7V ~ 5.5V | - | 800MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLP (2.14x1.56) |
|
MAX4983EEVB+TIC USB SWITCH DPDT 10UTQFN |
1,143 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 10Ohm | 2.8V ~ 5.5V | - | 950MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.4x1.8) |
|
MAX7357ETG+TIC MULTIPLEXER 8X1 24TQFN |
3,819 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | I2C | 8:1 | - | 1 | 24Ohm | 2.3V ~ 5.5V | - | - | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TQFN (4x4) |
|
AD8184ARZIC VIDEO MULTIPLEXER 4X1 14SOIC |
442 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Active | Video | 4:1 | - | 1 | - | - | ±4V ~ 6V | 700MHz | Buffered | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
MAX4999ETJ+TIC MULTIPLEXER 8X1 32TQFN |
869 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 8:1 | - | 1 | 12Ohm | 3V ~ 3.6V | - | 1.2GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (5x5) |
|
MAX4545CAP+IC VIDEO SWITCH QUAD SPST 20SSOP |
11 |
|
Datasheet |
- | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Video | 1:1 | SPST | 4 | 20Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 300MHz | Bi-Directional, T-Switch Configuration | 0°C ~ 70°C (TA) | - | - | Surface Mount | 20-SSOP |
|
ADG2128BCPZ-REEL7IC CROSSPOINT SWIT 8X12 32LFCSP |
9,685 |
|
Datasheet |
- | 32-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Telecommunications, Ultrasound | 12:8 | - | 1 | 50Ohm | 12V | ±5V | 210MHz | I2C | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-LFCSP-VQ (5x5) |
|
HV2321FG-GIC ULTRASOUND SWITCH 1:1 48LQFP |
255 |
|
Datasheet |
- | 48-LQFP | Tray | Active | Ultrasound | 1:1 | SPST | 8 | 23Ohm | 15V ~ 50V | ±100V ~ 225V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
|
HV2607T-C/R8X16-CH 200V NO HV BIAS SWITCH SPS |
442 |
|
Datasheet |
- | 48-LQFP | Tape & Reel (TR) | Active | Ultrasound | 1:1 | SPST | 16 | 23Ohm | 4.5V ~ 6.3V | - | 100MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
|
HV2705FG-GIC SWITCH SPST 38 OHM 48LQFP |
288 |
|
Datasheet |
- | 48-LQFP | Tray | Active | Ultrasound | 1:1 | SPST | 16 | 38Ohm | 40V ~ 200V | ±40V ~ 160V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
