Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSA2567UMXIC SWITCH 4PDT 16UMLP |
30,395 |
|
Datasheet |
- | 16-UFQFN | Tape & Reel (TR) | Active | Telecommunications | - | 4PDT | 1 | 10Ohm | 1.65V ~ 4.3V | - | 475MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UMLP (1.8x2.6) |
|
TS3USB30RSWRIC USB SWITCH DUAL 1X2 10UQFN |
15,782 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 10Ohm | 3V ~ 4.3V | - | 955MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
TS3L501ERUARIC LAN MUX/DMUX 16B TO 8B 42WQFN |
4,732 |
|
Datasheet |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Networking | 2:1 | SPDT | 11 | 8Ohm | 3V ~ 3.6V | - | 600MHz | 10/100,1000 Base-T, LVDS, LVPECL | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
CBTU02044HEJSWITCH 1-2 PCIE GEN4 HUQFN16 |
35,637 |
|
Datasheet |
- | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Active | PCIe | 1:2 | SPDT | 2 | 14Ohm | 1.62V ~ 3.63V | - | 17GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-HUQFN (1.6x2.4) |
|
CBTL02043ABQ,115IC MUX/DEMUX 2:1 PCI 20DHVQFN |
11,676 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort, PCIe, USB | 2:1 | - | 2 | 6Ohm (Typ) | 3V ~ 3.6V | - | 10GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-DHVQFN (4.5x2.5) |
|
|
FSUSB74UMXIC USB MUX/SWITCH 16UMLP |
11,150 |
|
Datasheet |
- | 16-UFQFN | Tape & Reel (TR) | Active | USB | 4:1 | - | 1 | 9Ohm | 2.5V ~ 4.4V | - | - | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UMLP (1.8x2.6) |
|

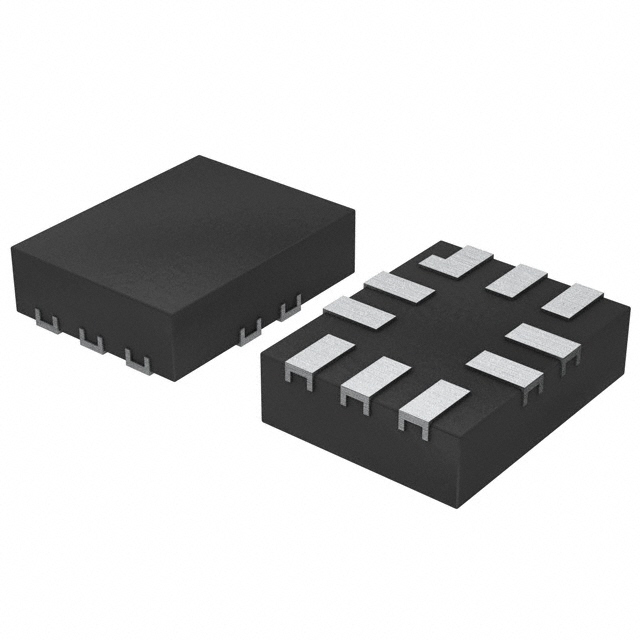

PI3USB102EZLEXIC USB 2.0 SWITCH 10TQFN |
23,773 |
|
Datasheet |
- | 10-WFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 4Ohm (Typ) | 3V ~ 5.5V | - | 1GHz | Bi-Directional, USB 2.0 | - | - | - | Surface Mount | 10-TQFN (1.3x1.6) |
|
|
CBTL02042ABQ,115IC MUX/DEMUX 2:1 PCI 20DHVQFN |
10,414 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort, PCIe, USB | 2:1 | - | 2 | 6Ohm (Typ) | 3V ~ 3.6V | - | 7GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-DHVQFN (4.5x2.5) |
|

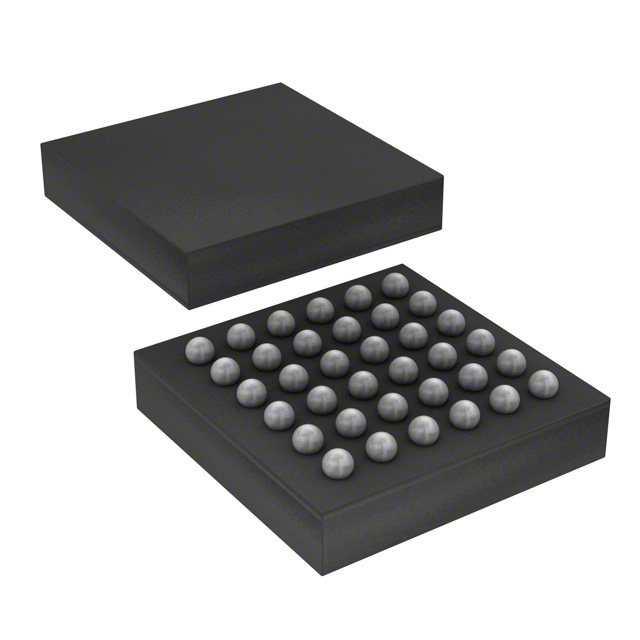

PI3WVR646GEEXANALOG SWITCH 3V-5V U-WLB2424-36 |
8,515 |
|
Datasheet |
- | 36-UFBGA, WLCSP | Tape & Reel (TR) | Active | Telecommunications | 2:1 | SPDT | 10 | 6Ohm (Typ) | 1.5V ~ 5V | - | 4.5GHz | Differential Compatibility | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-CSP (2.44x2.44) |
|
FSUSB43L10XIC USB MUX/SWITCH 10MICROPAK |
7,982 |
|
Datasheet |
- | 10-UFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MicroPak™ |
|

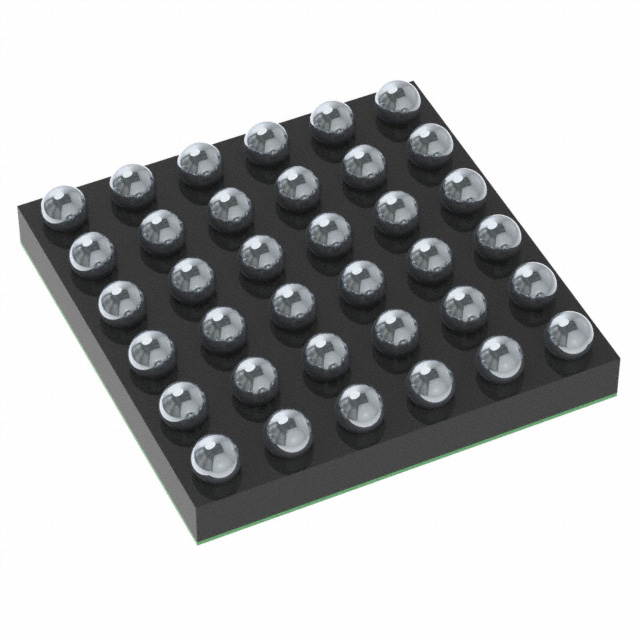

PI3WVR648GEAEXMIPI SWITCH U-WLB2424-36 |
107 |
|
Datasheet |
- | 36-UFBGA, WLCSP | Tape & Reel (TR) | Active | Telecommunications | 2:1 | SPDT | 10 | - | 1.5V ~ 5V | - | 6GHz | - | - | - | - | Surface Mount | 36-WLCSP (2.44x2.44) |
|
FSA553UCXIC AUDIO SWITCH SPST DUAL WLCSP |
11,453 |
|
Datasheet |
- | 9-UFBGA, WLCSP | Tape & Reel (TR) | Active | Audio | 1:1 | SPST | 2 | 800mOhm | 1.5V ~ 3V | - | 200MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-WLCSP (1.22x1.22) |
|
TS3DDR4000ZBARIC DDR SWITCH/MUX 48NFBGA |
3,049 |
|
Datasheet |
- | 48-TFBGA | Tape & Reel (TR) | Active | Memory | 2:1 | - | 1 | 11.2Ohm | 2.375V ~ 3.6V | - | 5.6GHz | DDR2, DDR3, DDR4 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-NFBGA (8x3) |
|
FSA660TMXIC SWITCH 2:1 MIPI C-PHY 18TMLP |
4,135 |
|
Datasheet |
- | 18-XFQFN Exposed Pad | Tape & Reel (TR) | Active | MIPI | 2:1 | SPDT | 1 | 8Ohm | 1.5V ~ 5V | - | 5GHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-TMLP (2x2.8) |
|

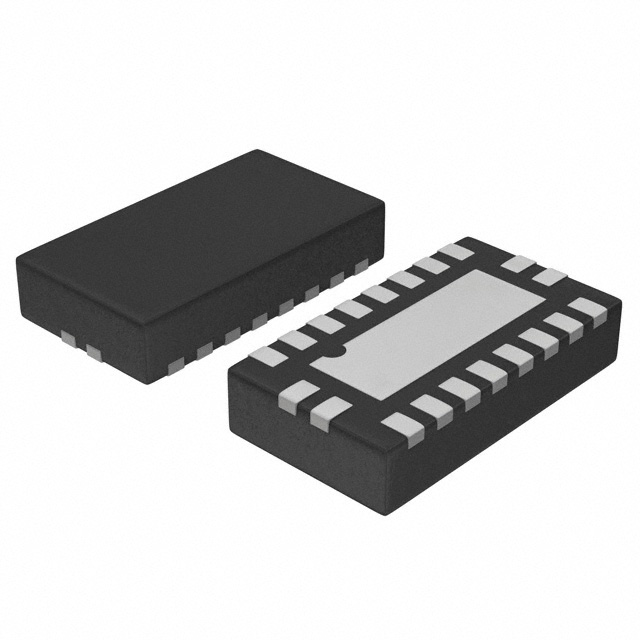

PI3USB302-AZBEXIC MUX/DEMUX USB 3.0 20TQFN |
3,300 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | - | 2 | - | 3V ~ 3.6V | - | - | Bi-Directional, USB 3.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QFN (2.5x4.5) |
|
FSA636UCXULTRA SMALL, LOW POWER, 4-DATA L |
132 |
|
Datasheet |
- | 36-XFBGA, WLCSP | Tape & Reel (TR) | Active | DisplayPort, PCIe, Telecommunications, USB | 2:1 | SPDT | 10 | 9Ohm | 1.5V ~ 5V | - | 4GHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-WLCSP (2.06x2.06) |
|

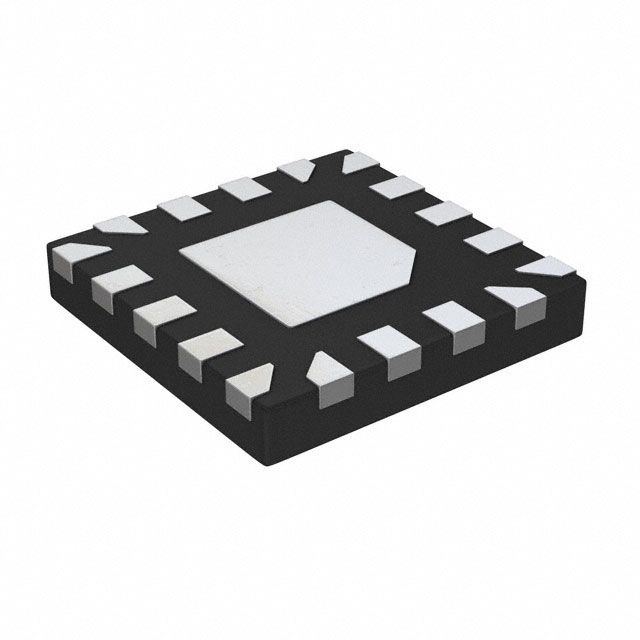

PI3DBS16212XUAEXPCIE SWITCH X2-QFN2020-18 |
12,291 |
|
Datasheet |
- | 18-XFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | - | 3.3V | - | 13GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 18-X2QFN (2x2) |
|

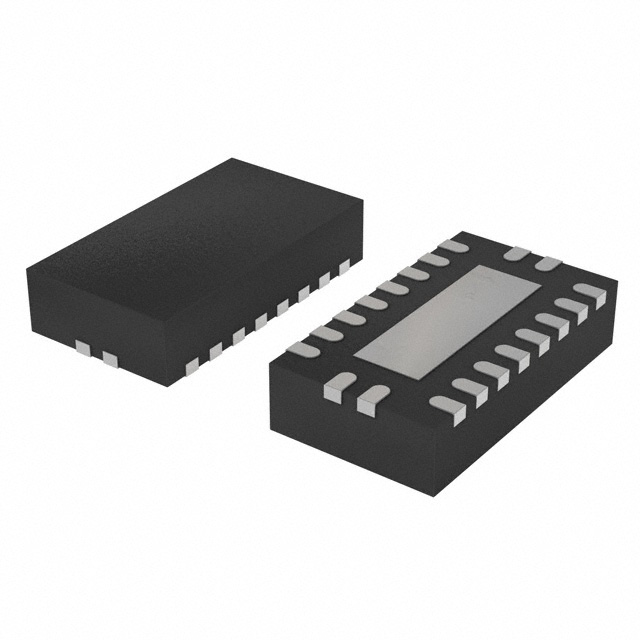

PI3DBS16212ZBBEXPCIE SWITCH V-QFN2545-20 T&R 3.5 |
61,110 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | - | 3.3V | - | 13GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 20-TQFN (2.5x4.5) |
|

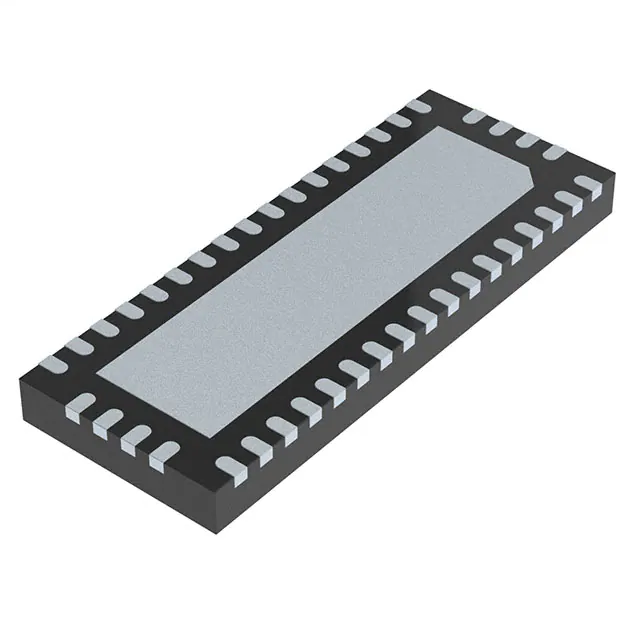

PI3PCIE3412AZHEXPCI SWITCH 2:1 4 CHAN 42TQFN |
24,341 |
|
Datasheet |
PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 2:1 | - | 4 | 5Ohm (Typ) | 3V ~ 3.6V | - | 8.2GHz | Bi-Directional, SATA, USB 3.0 | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (9x3.5) |
|

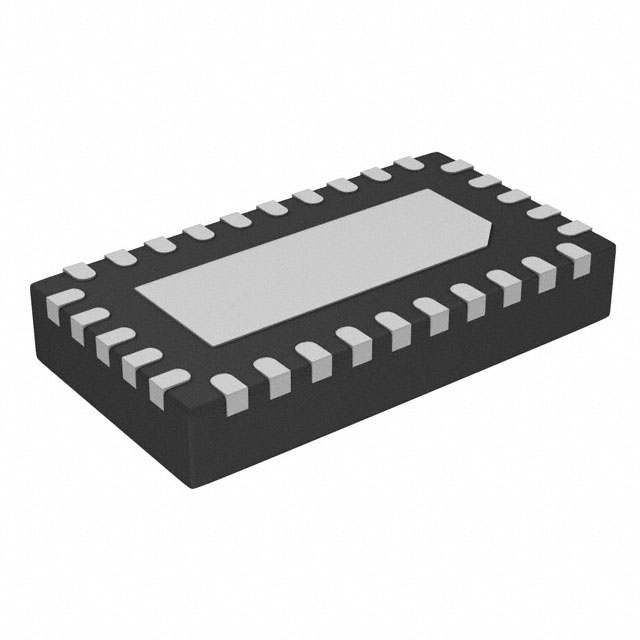

PI3DBS16213ZLEXPCIE SWITCH W-QFN2545-30 |
6,260 |
|
Datasheet |
- | 30-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 3:1 | SP3T | 2 | - | 3.3V | - | 12GHz | Bi-Directional, USB 3.0, USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 30-TQFN (2.5x4.5) |
Analog Switches - Special Purpose Electronic Components
Explore Analog Switches - Special Purpose electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
