Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI5A3166CEX-1516IC SW SPST-NOX1 1.2OHM SC70-5 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 1.2Ohm | - | 1.65V ~ 5.5V | - | 2ns, 5ns | 200MHz | 35pC | 15pF | 20nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
PI5A4157CEX-1516IC SWITCH SPDTX1 1.2OHM SOT363-6 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.2Ohm | 10mOhm | 1.65V ~ 5.5V | - | 18ns, 20ns | 150MHz | 35pC | 3.5pF | 20nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363-6 (SC-70) |
|

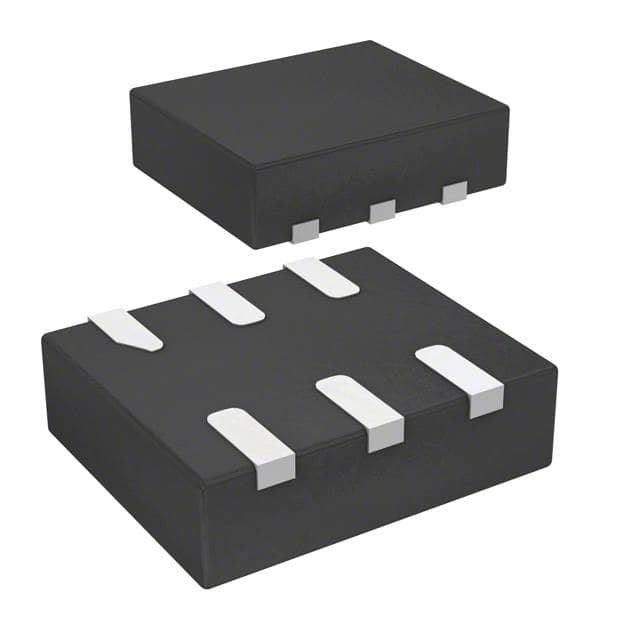

PI5A4157ZUEXIC SWITCH SPDT X 1 1.2OHM 6UDFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 1.2Ohm | 10mOhm | 1.65V ~ 5.5V | - | 18ns, 20ns | 150MHz | 35pC | 3.5pF | 20nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UDFN (1x1) |
|
MPQ2735GG-ZIC SWITCH SPDT X 2 450MOHM 10QFN |
0 |
|
- |
- | Tape & Reel (TR) | Active | SPDT | - | 2 | 450mOhm | 10mOhm (Typ) | 1.65V ~ 5.5V | - | 24ns, 20ns (Typ) | 50MHz | - | 6pF | - | -70dB @ 100kHz | - | Automotive | AEC-Q100 | Surface Mount | 10-QFN (2x2) |
|
NC7SB3157L6X_F131IC SWITCH SPDTX1 15OHM 6MICROPAK |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 15Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 3.5ns | 250MHz | 7pC | 6.5pF | 100nA | -54dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroPak |
|
5962-8996101EAIC SWITCH DPST-NOX2 30OHM 16CDIP |
0 |
|
- |
- | Tube | Active | DPST - NO | 2:1 | 2 | 30Ohm | 500mOhm | 10V ~ 30V | ±4.5V ~ 20V | 150ns, 100ns | - | 10pC | 12pF, 12pF | 250pA | -90dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
5962-9073102MEAIC SWITCH SPST-NOX4 30OHM 16CDIP |
0 |
|
- |
- | Tube | Active | SPST - NO | 1:1 | 4 | 30Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
5962-9073103MEAIC SW SPST-NO/NCX4 30OHM 16CDIP |
0 |
|
- |
- | Tube | Active | SPST - NO/NC | 1:1 | 4 | 30Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
5962-9073703MPAIC SWITCH SPDT X 1 30OHM 8CERDIP |
0 |
|
- |
- | Tube | Active | SPDT | 2:1 | 1 | 30Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 3pC | 8pF, 8pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
5962-9204101MEAIC SWITCH SPST-NCX4 85OHM 16CDIP |
0 |
|
- |
- | Tube | Active | SPST - NC | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
5962-9204102MEAIC SWITCH SPST-NOX4 85OHM 16CDIP |
0 |
|
- |
- | Tube | Active | SPST - NO | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
5962-9204201MEAIC MUX 8:1 100OHM 16CDIP |
0 |
|
- |
- | Tube | Active | SP8T | 8:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 26pF | 500pA | -92dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
5962-9204202MEAIC SWITCH SP4T X 2 100OHM 16CDIP |
0 |
|
- |
- | Tube | Active | SP4T | 4:1 | 2 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 14pF | 500pA | -92dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
DG612EEQ-T1-GE3IC SW SPST-NOX4 115OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 115Ohm | 600mOhm | 3V ~ 12V | ±3V ~ 5V | 50ns, 35ns | 1GHz | 1.4pC | 3pF, 3pF | 100pA | -74dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG2715EDL-T1-GE3IC ANALOG SWITCH SC70-5 |
0 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DG2716EDL-T1-GE3IC ANALOG SWITCH SC70-5 |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SC-70-5 |
|
|
DG604EEQ-T1-GE3IC MULTIPLEXER 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | 3V ~ 16V | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DG611EEQ-T1-GE3IC SW SPST-NCX4 115OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 115Ohm | 600mOhm | 3V ~ 12V | ±3V ~ 5V | 50ns, 35ns | 1GHz | 1.4pC | 3pF, 3pF | 100pA | -74dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
DG612EEY-T1-GE3IC SW SPST-NOX4 115OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 115Ohm | 600mOhm | 3V ~ 12V | ±3V ~ 5V | 50ns, 35ns | 1GHz | 1.4pC | 3pF, 3pF | 100pA | -74dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG636EEQ-T1-GE3IC SWITCH SPDT X 2 96OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 96Ohm | 300mOhm | 3V ~ 16V | ±3V ~ 8V | 46ns, 55ns | 700MHz | -0.33pC | 3.7pF, 4.4pF | 1nA | -62dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
