Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4646EUT-TIC SWITCH SPST-NCX1 2.5OHM SOT6 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 2.5Ohm | 100mOhm | 1.8V ~ 5V | - | 15ns, 10ns | - | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
TC4053BFTELIC SWITCH SPDTX3 160OHM 16TSSOP |
0 |
|
- |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 160Ohm | 4Ohm | 3V ~ 18V | - | - | 30MHz | - | 0.2pF, 5pF | 100nA | -50dB @ 1.5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4582CPEIC SWITCH SP4T X 2 80OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 80Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 200ns, 100ns | - | 0.5pC | 4pF, 10pF | 1nA | -96dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
MAX4582CSEIC SWITCH SP4T X 2 80OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 80Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 200ns, 100ns | - | 0.5pC | 4pF, 10pF | 1nA | -96dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
CD4067BPWG4IC MUX 16:1 240OHM 24TSSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 16:1 | 1 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 14MHz | - | 0.2pF, 55pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
CD4067BME4IC MUX 16:1 240OHM 24SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 16:1 | 1 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 14MHz | - | 0.2pF, 55pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-SOIC |
|

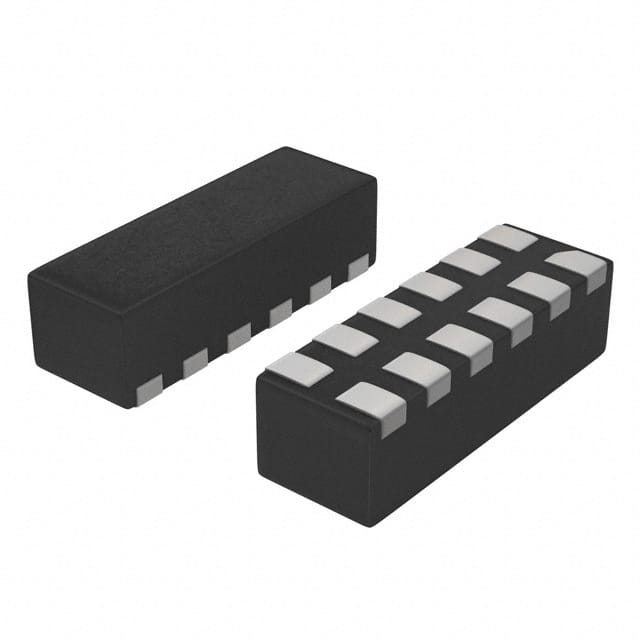

NLAS3158MNR2GIC SWITCH SPDT X 2 13OHM 12DFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 13Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 3.5ns | 250MHz | 7pC | 2.3pF | 100nA | -54dB @ 10MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 12-DFN (3x1) |
|
HEF4051BTS,118IC MUX 8:1 155OHM 16SSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SSOP |
|
ISL54060IRUZ-TIC SW SPST-NOX2 520MOHM 10UTQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 520mOhm (Typ) | 10mOhm | 1.8V ~ 6.5V | - | 35ns, 10ns | 60MHz | 170pC | 36pF | 8.13nA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
|
ISL54061IRUZ-TIC SW SPST-NCX2 520MOHM 10UTQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 520mOhm (Typ) | 10mOhm | 1.8V ~ 6.5V | - | 35ns, 10ns | 60MHz | 170pC | 36pF | 8.13nA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
MAX4502EXK+TIC SW SPST-NCX1 250OHM SC70-5 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 250Ohm | - | 2V ~ 12V | - | 75ns, 50ns | - | 1pC | 3pF, 3pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
ISL54060IRTZIC SW SPST-NOX2 520MOHM 10TDFN |
0 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 2 | 520mOhm (Typ) | 10mOhm | 1.8V ~ 6.5V | - | 35ns, 10ns | 60MHz | 170pC | 36pF | 8.13nA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
ISL54061IRTZIC SW SPST-NCX2 520MOHM 10TDFN |
0 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 2 | 520mOhm (Typ) | 10mOhm | 1.8V ~ 6.5V | - | 35ns, 10ns | 60MHz | 170pC | 36pF | 8.13nA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
DG9251EN-T1-E4IC MUX 8:1 182OHM 16MINIQFN |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 182Ohm | 3.1Ohm | 2.7V ~ 16V | ±2.7V ~ 5V | 250ns, 125ns | 314MHz | 4.1pC | 2.7pF, 10.7pF | 1nA | -67dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
PS323CUAEXIC SWITCH SPST-NOX2 35OHM 8MSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 35Ohm | 800mOhm | 2.5V ~ 16V | - | 75ns, 50ns | - | 1pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
|
MAX4541ESA-TIC SWITCH SPST-NOX2 60OHM 8SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MAX4541CUA-TIC SWITCH SPST-NOX2 60OHM 8UMAX |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
DG2515DQ-T1-E3IC SWITCH SPDT X 2 4OHM 10MSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 50ns, 40ns | 235MHz | 49pC | 17pF | 1nA | -74dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2516DQ-T1-E3IC SWITCH SPDT X 2 4OHM 10MSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 50ns, 40ns | 235MHz | 49pC | 17pF | 1nA | -74dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2531DQ-T1-E3IC SWITCH SPDTX2 600MOHM 10MSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 600mOhm | 50mOhm (Max) | 1.8V ~ 5.5V | - | 70ns, 65ns | - | 54pC | 143pF | 1nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
