Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4503CPAIC SWITCH SPST-NOX1 250OHM 8DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 1 | 250Ohm | - | - | ±1V ~ 6V | 150ns, 100ns | - | 1pC | 3pF, 3pF | 1nA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
MAX4504ESAIC SWITCH SPST-NCX1 250OHM 8SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 1 | 250Ohm | - | - | ±1V ~ 6V | 150ns, 100ns | - | 1pC | 3pF, 3pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
SN74LVC2G66YEARIC SWITCH SPST-NOX2 10OHM 8XFBGA |
0 |
|
Datasheet |
74LVC | Cut Tape (CT) | Obsolete | SPST - NO | 1:1 | 2 | 10Ohm | 2Ohm (Max) | 1.65V ~ 5.5V | - | 3.9ns, 6.3ns | 300MHz | - | 6pF | 100nA | -58dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-XFBGA, DSBGA |
|
|
SN74LVC2G53YEARIC SWITCH SPDT X 1 13OHM 8XFBGA |
0 |
|
Datasheet |
74LVC | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 13Ohm | 2Ohm (Max) | 1.65V ~ 5.5V | - | 4.5ns, 8ns | 300MHz | - | 10pF | 100nA | -58dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-XFBGA, DSBGA |
|
CD74HC4067SM96E4IC MUX 16:1 160OHM 24SSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | - | 16:1 | 1 | 160Ohm | 8.5Ohm | 2V ~ 6V | - | 51ns, 49ns | 89MHz | - | 5pF, 50pF | 800nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-SSOP |
|
|
CD74HC4067SM96G4IC MUX 16:1 160OHM 24SSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | - | 16:1 | 1 | 160Ohm | 8.5Ohm | 2V ~ 6V | - | 51ns, 49ns | 89MHz | - | 5pF, 50pF | 800nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-SSOP |
|
CD4067BM96E4IC MUX 16:1 240OHM 24SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | - | 16:1 | 1 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 14MHz | - | 0.2pF, 55pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-SOIC |
|
|
CD4067BM96G4IC MUX 16:1 240OHM 24SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 14MHz | - | 0.2pF, 55pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-SOIC |
|
MAX4516CUK-TIC SWITCH SPST-NOX1 20OHM SOT23 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | ±1V ~ 6V | 100ns, 75ns | - | 10pC | 9pF, 9pF | 1nA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
MAX4517EUK-TIC SWITCH SPST-NCX1 20OHM SOT23 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | ±1V ~ 6V | 100ns, 75ns | - | 10pC | 9pF, 9pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MAX4597EXK-TIC SWITCH SPST-NCX1 10OHM SC70-5 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 10Ohm | - | 2V ~ 5.5V | - | 35ns, 40ns | 300MHz | 2pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
MC74VHC1G66DTT1IC SWITCH SPST-NOX1 40OHM 5TSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 40Ohm | - | 2V ~ 5.5V | - | 20ns, 20ns | 180MHz | - | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 5-TSOP |
|
|
MC74VHC1GT66DTT1IC SWITCH SPST-NOX1 40OHM 5TSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 40Ohm | - | 2V ~ 5.5V | - | - | 180MHz | - | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 5-TSOP |
|
HEF4067BTTJHEF4067BTT/SOT355/TSSOP24 |
0 |
|
Datasheet |
4000B | Tape & Reel (TR) | Active | - | 16:1 | 1 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 1µA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
CD4051BMIC MUX 8:1 240OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 1 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 20MHz | - | 0.2pF, 30pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
SN74HC4066PWRIC SW SPST-NOX4 30OHM 14TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 30Ohm (Typ) | - | 2V ~ 6V | - | 31ns, 34ns | 30MHz | - | 0.5pF, 9pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
NLAS4599DTT1GIC SWITCH SPDT X 1 25OHM 6TSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 25Ohm | 2Ohm | 2V ~ 5.5V | - | 14ns, 8ns | 220MHz | 3pC | 10pF, 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 6-TSOP |
|
M74HC4852TTRIC SWITCH SP4TX2 195OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 195Ohm | 3Ohm | 2V ~ 6V | - | - | - | - | 6.7pF, 22pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

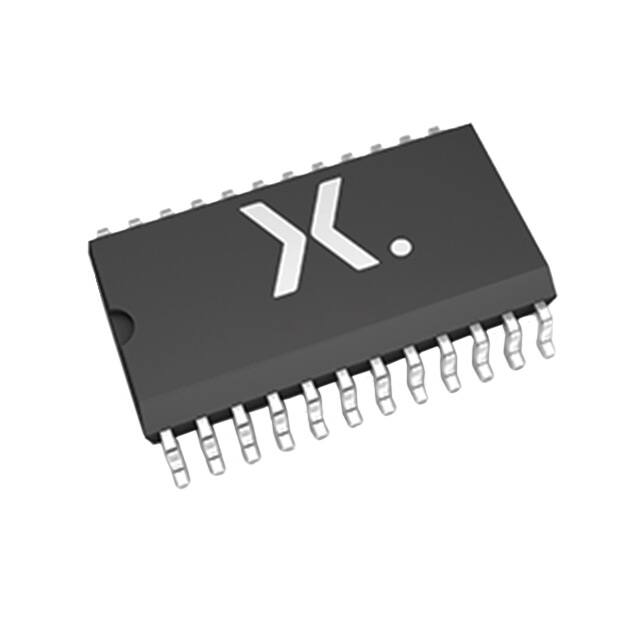

74HCT4067D-Q100JIC MUX 16:1 120OHM 24SO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | - | 65ns, 60ns | 100MHz | - | 3.5pF | 800nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-SO |
|
|
MAX4501EXK-TIC SW SPST-NOX1 250OHM SC70-5 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 250Ohm | - | 2V ~ 12V | - | 75ns, 50ns | - | 1pC | 3pF, 3pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
