Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4053BNS16 LEAD SOP |
1,650 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RS2254XQIC SWITCH SPST X 4 30OHM 14TSSOP |
11,840 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 30Ohm | 1Ohm (Typ) | 2.5V ~ 5.5V | - | 90ns (Typ), 70ns (Typ) | 180MHz | 6pC | 12.7pF | 100nA | -110dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
ISL84716IH-TIC SW SPST-NCX1 400MOHM SC70-5 |
2,017 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 400mOhm | - | 1.65V ~ 3.6V | - | 12ns, 8ns | - | 70pC | 68pF, 68pF | 3nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
TS3DS26227YZTRIC SWITCH SPDT X 2 5OHM 12DSBGA |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 5Ohm | 50mOhm | 2.3V ~ 3.6V | - | 9ns, 4ns | 80MHz | 5.5pC | 3.5pF | 5nA | -39dB @ 200MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DSBGA (1.9x1.4) |
|
CD74HC4016M96IC SW SPST-NOX4 170OHM 14SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 170Ohm | 8.5Ohm | 2V ~ 10V | - | - | 20MHz | - | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-SOIC |
|

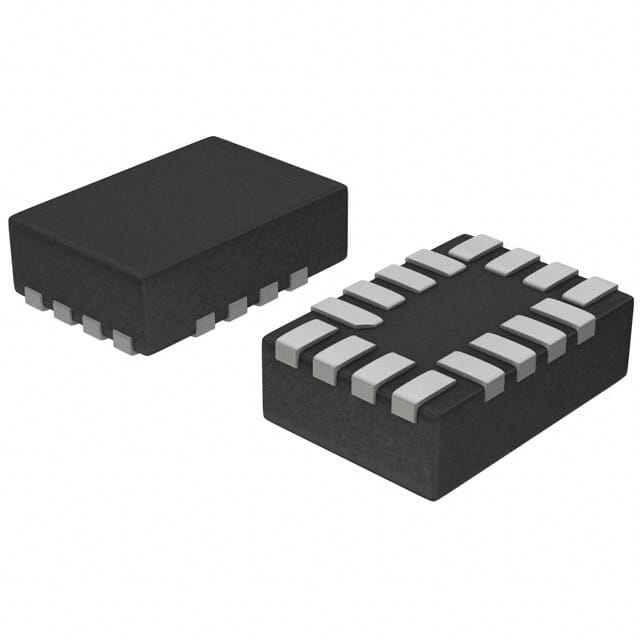

NLAS54405MT2TBGIC SWITCH SPDT X 2 2.1OHM 16WQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 2.1Ohm | 46mOhm | 3V ~ 3.6V | - | 11µs, 95ns (Typ) | 450MHz | - | 3.3pF | - | -97dB @ 20kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WQFN (1.8x2.6) |
|
FSAV433MTCX-ONIC SWITCH SP3T X 3 9OHM 20TSSOP |
52,000 |
|
Datasheet |
- | Bulk | Active | SP3T | 3:1 | 3 | 9Ohm | - | 2.3V ~ 3.6V | - | 5.5ns, 4ns | 550MHz | - | 3pF, 4pF | 1µA | -70dB @ 30MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
SN74HC4851QPWRG4Q1IC MUX 8:1 195OHM 16TSSOP |
3,950 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 195Ohm | 3Ohm | 2V ~ 6V | - | 78ns, 78ns | - | - | 22pF | 200nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|
MAX4611ESDIC SW SPST-NCX4 100OHM 14SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
NS5A4684SMNTAGIC SWITCH SPDTX2 400MOHM 10WQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 400mOhm | 100mOhm (Max) | 1.65V ~ 5.5V | - | 50ns, 30ns | 19MHz | 38pC | 60pF | 100nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WQFN (1.4x1.8) |
|
CD4053BM96G3IC SWITCH SPDT X 3 240OHM 16SOIC |
18,730 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 30MHz | - | 0.2pF, 9pF | 100nA | -40dB @ 6MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
CD4053BPWRG3IC SWITCH SPDTX3 240OHM 16TSSOP |
7,275 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 30MHz | - | 0.2pF, 9pF | 100nA | -40dB @ 6MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
RS2102XNIC SWITCH SPDT X 2 4OHM 10MSOP |
7,588 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 4Ohm | 100mOhm (Typ) | 1.8V ~ 5.5V | - | 29ns (Typ), 17ns (Typ) | 120MHz | - | 15pF | 1µA | - | -40°C ~ 125°C | - | - | Surface Mount | 10-MSOP |
|
TS5N412DBQRIC SWITCH SPDTX4 12.5OHM 16SSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 12.5Ohm | - | 4.75V ~ 5.25V | - | 200ns, 200ns | 25MHz (Min) | - | - | - | -50dB @ 25MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
.jpg)
|

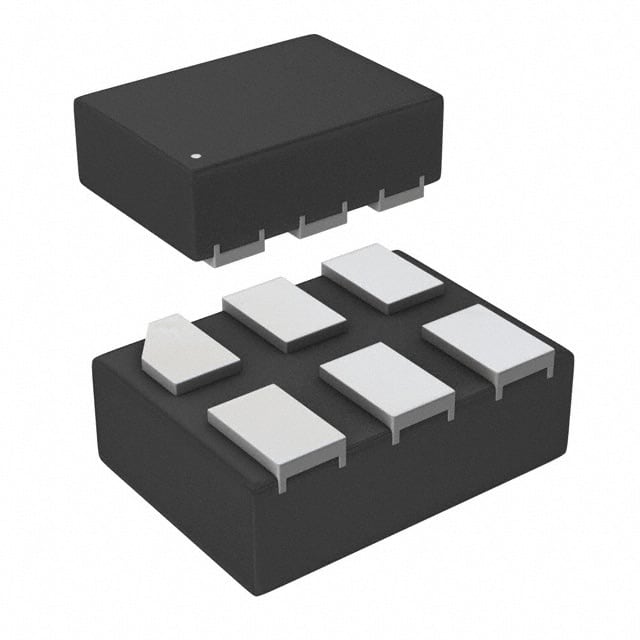

STG3155DTRIC SWITCH SPDT X 1 600MOHM 6DFN |
10,472 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 600mOhm | 21mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 70MHz | 53pC | 6.6pF | 20nA | -72dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 6-DFN (1.45x1) |
|
ISL43L712IRIC SW SPST-NO/NCX2 250MOHM 8TDFN |
3,822 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
ISL43L711IRIC SW SPST-NCX2 250MOHM 8TDFN |
3,336 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
ISL43L122IRIC SW SPST-NO/NCX2 250MOHM 8TDFN |
3,222 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
ISL43L710IRIC SW SPST-NOX2 250MOHM 8TDFN |
2,596 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
74HC4016N,652IC SWITCH SPST-NOX4 120OHM 14DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 120Ohm | 9Ohm | 2V ~ 10V | - | 28ns, 22ns | 160MHz | - | 3.5pF | 1µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Through Hole | 14-DIP |
