Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74HC4053FP-E74HC4053 TRIPLE SINGLE-POLE, DOU |
6,631 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NLAST44599MNR2IC SWITCH DPDT X 2 25OHM 16QFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 25Ohm | - | 2V ~ 5.5V | - | 14ns, 5ns | 175MHz | 3pC | 10pF, 10pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|

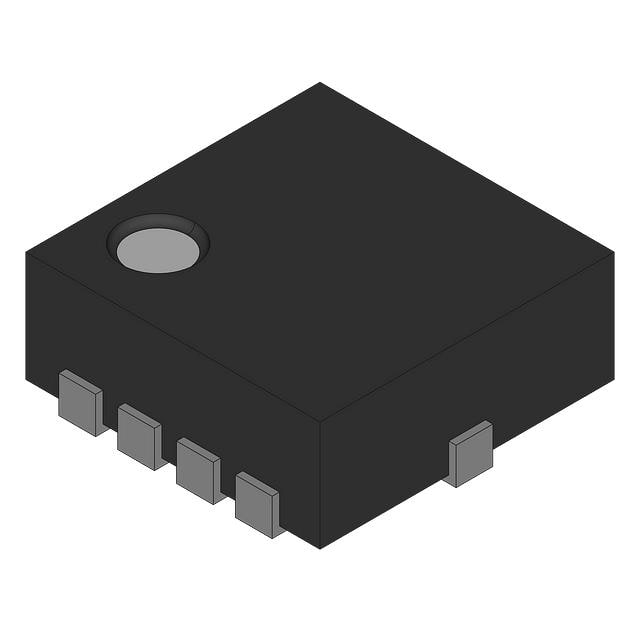

NLAS5223LMNRIC SWITCH DUAL SPDT 10WQFN |
3,000 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74LV4051APWRG4IC MUX 8:1 75OHM 16TSSOP |
1,458 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 75Ohm | 1.3Ohm | 2V ~ 5.5V | - | 14ns, 14ns | 35MHz | - | 0.5pF, 23.4pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ISL84521IVIC SW SPST-NCX4 100OHM 16TSSOP |
1,387 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TS5A1066YZPRIC SWITCH SPST-NOX1 10OHM 5DSBGA |
10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 1.65V ~ 5.5V | - | 5.5ns, 4.5ns | 400MHz | 1pC | 6.8pF, 6.8pF | 200nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-DSBGA (1.4x0.9) |
|
NLV14051BDGIC MUX 8:1 280OHM 16SOIC |
0 |
|
Datasheet |
- | Bulk | Obsolete | SP8T | 8:1 | 1 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOIC |
|
|
MC74LVXT4051DIC MUX 8:1 26OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 1 | 26Ohm | 10Ohm | 2.5V ~ 6V | ±2.5V ~ 6V | - | 80MHz | 12pC | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MC74LVX4052DIC SWITCH SP4T X 2 26OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 26Ohm | 10Ohm | 2.5V ~ 6V | ±2.5V ~ 6V | - | 80MHz | 12pC | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
SN74LV4053ATDRQ1IC SWITCH SPDT X 3 75OHM 16SOIC |
2,500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 75Ohm | 1.3Ohm | 2V ~ 5.5V | - | 14ns, 14ns | 50MHz | - | 0.5pF, 8.2pF | 100nA | -45dB @ 1MHz | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOIC |
|
|
SN74LV4053APWRG4IC SWITCH SPDT X 3 75OHM 16TSSOP |
3,567 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 75Ohm | 1.3Ohm | 2V ~ 5.5V | - | 14ns, 14ns | 50MHz | - | 0.5pF, 8.2pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
RS2166XF5IC SWITCH SPST X 1 8OHM SOT23-5 |
2,604 |
|
Datasheet |
- | Cut Tape (CT) | Active | SPST | 1:1 | 1 | 8Ohm | - | 1.8V ~ 5.5V | - | 30ns (Typ), 25ns (Typ) | 300MHz | - | 5pF, 5pF | 1µA | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
ISL43410IRIC SWITCH DPDT X 1 50OHM 16QFN |
1,033 |
|
Datasheet |
- | Tube | Obsolete | DPDT | 2:2 | 1 | 50Ohm | 500mOhm | 2.7V ~ 12V | - | 25ns, 24ns (Typ) | - | 1.2pC | 4pF, 6pF | 3nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
NLAS6234MUTBGIC SWITCH DPDTX2 550MOHM 10UQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 550mOhm | 190mOhm | 2.7V ~ 4.5V | - | 17ns, 9ns | 36MHz | - | 45pF | 1µA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
NX3L4053HR,115IC SWITCH SPDTX3 800MOHM 16HXQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | SPDT | 2:1 | 3 | 800mOhm | 120mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-HXQFN (3x3) |
|
|
SN74LV4053ATPWRQ1IC SWITCH SPDT X 3 75OHM 16TSSOP |
20,994 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 75Ohm | 1.3Ohm | 2V ~ 5.5V | - | 14ns, 14ns | 50MHz | - | 0.5pF, 8.2pF | 100nA | -45dB @ 1MHz | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|

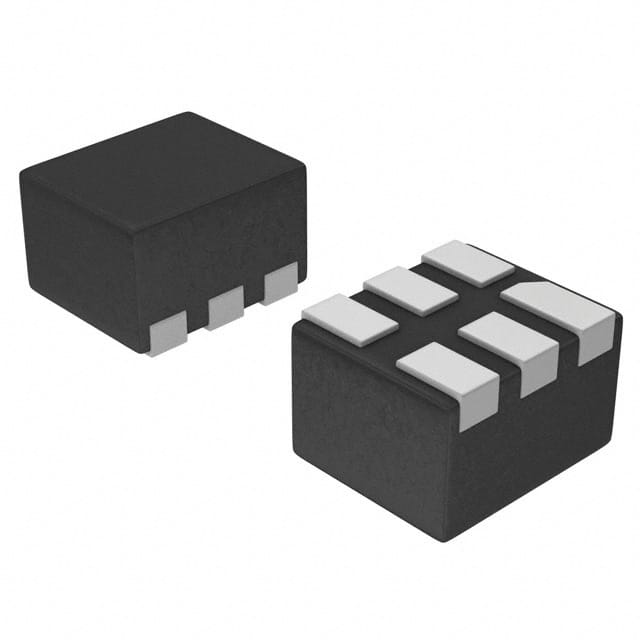

NLASB3157MTR2GIC SWITCH SPDT X 1 7OHM 6WDFN |
3,213 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 7Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 3.5ns | 250MHz | 7pC | 6.5pF | 100nA | -54dB @ 10MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 6-WDFN (1.2x1) |
|
MC74LVX4052DTGIC SWITCH SP4T X 2 26OHM 16TSSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 26Ohm | 10Ohm | 2.5V ~ 6V | ±2.5V ~ 6V | - | 80MHz | 12pC | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
NLAS3699MN1R2GIC SWITCH DPDT X 2 550MOHM 16QFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 550mOhm | 50mOhm | 1.65V ~ 4.5V | - | 50ns, 50ns | 20MHz | 50pC | 7pF | 500nA | -62dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
CLV4052ATPWRG4Q1IC SWITCH SP4TX2 100OHM 16TSSOP |
3,999 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 20Ohm (Max) | 2V ~ 5.5V | - | 18ns, 18ns | 50MHz | - | - | 1µA | -45dB @ 1MHz | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
