Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

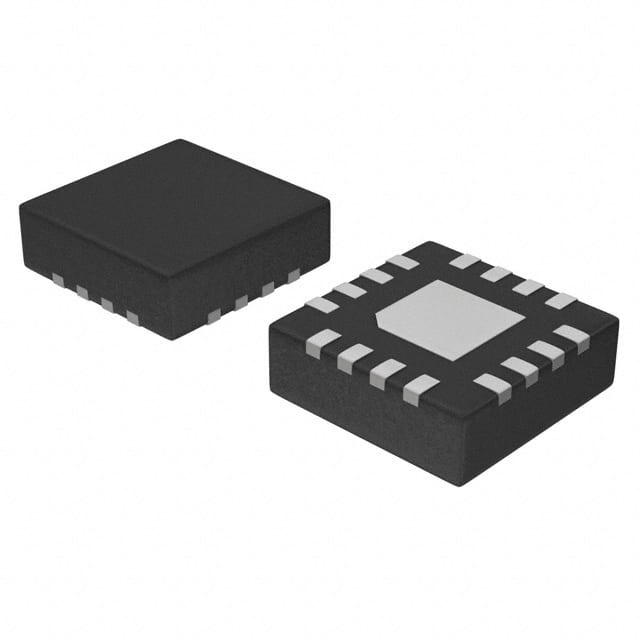

NLAS3699BMN1R2GIC SWITCH DPDT X 2 550MOHM 16QFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 550mOhm | 50mOhm | 1.65V ~ 4.5V | - | 50ns, 50ns | 20MHz | 50pC | 7pF | 500nA | -62dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
MAX14550AEETB+TIC INTEGRATED CIRCUIT |
0 |
|
- |
* | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TS12A4515DRIC SWITCH SPST-NCX1 10OHM 8SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 10Ohm | - | 2.7V ~ 12V | - | 75ns, 45ns | 520MHz | -11.5pC | 7.5pF, 7.5pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
NLAS4685FCT1IC SW SPDTX2 800MOHM 10MICROBUMP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 800mOhm | 60mOhm | 1.8V ~ 5.5V | - | 30ns, 25ns | 11.5MHz | 20pC | 208pF, 102pF | 1µA | -81dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-Microbump |
|
|
MAX14550AEETB+IC ANLG SW USB HOST ID TDFN |
0 |
|
- |
* | Strip | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ISL43143IVIC SW SPST-NCX4 25OHM 16TSSOP |
3,772 |
|
Datasheet |
- | Bag | Obsolete | SPST - NC | 1:1 | 4 | 25Ohm | 500mOhm | 2.7V ~ 12V | ±2.6V ~ 6V | 65ns, 50ns | - | 5pC (Max) | 10pF, 26pF | 100pA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MC74HC4852ANGIC SWITCH SP4T X 2 400OHM 16DIP |
0 |
|
- |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 400Ohm | - | 2V ~ 6V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
|
ISL84523IBIC SW SPST-NO/NCX4 100OHM 16SOIC |
3,044 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
SN74AUC2G53YZTRIC SWITCH SPDT X 1 15OHM 8DSBGA |
0 |
|
Datasheet |
74AUC | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 15Ohm | 1Ohm (Max) | 0.8V ~ 2.7V | - | 2.2ns, 2.3ns | 500MHz | - | 3pF, 4.5pF | 1µA | -60dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DSBGA |
|
MAX4720EYT+T4.5 OHMS DUAL SPST ANALOG SWITCH |
42,500 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74LV4052ANSDIFFERENTIAL MUX, 4 CHANNEL |
16,400 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SN74LV4053ANSSINGLE-ENDED MUX, 2 CHANNEL |
10,450 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RS2057XC6IC SWITCH SPDT X 1 8OHM SC70-6 |
8,673 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 8Ohm | 150mOhm (Typ) | 1.8V ~ 5.5V | - | 30ns (Typ), 25ns (Typ) | 300MHz | - | 5pF | 1µA | - | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 (SOT-363) |
|
NX3L4053HRZIC ANALOG SWITCH SPDT HXQFN16U |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 16-HXQFN (3x3) |
|
NX3L4684GM,132IC SWITCH SPDTX2 750MOHM 10XQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 750mOhm | 40mOhm | 1.4V ~ 4.3V | - | 45ns, 20ns | 20MHz | 50pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
ISL43145IRIC SW SPST-NO/NCX4 25OHM 16QFN |
2,687 |
|
Datasheet |
- | Bag | Obsolete | SPST - NO/NC | 1:1 | 4 | 25Ohm | 500mOhm | 2.7V ~ 12V | ±2.6V ~ 6V | 65ns, 50ns | - | 5pC (Max) | 10pF, 26pF | 100pA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (4x4) |
|
|
MAX4720EYT+4.5 OHMS DUAL SPST ANALOG SWITCH |
1,611 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC74HC4067ADWGIC MUX 16:1 140OHM 24SOIC |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | 16:1 | 1 | 140Ohm | 8.5Ohm | 2V ~ 6V | - | - | 90MHz | - | 10pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-SOIC |
|
SN74LVC2G53DCT3IC SWITCH SPDT X 1 13OHM SM8 |
2,987 |
|
Datasheet |
74LVC | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 13Ohm | 2Ohm (Max) | 1.65V ~ 5.5V | - | 4.5ns, 8ns | 300MHz | - | 10pF | 1µA | -58dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SM8 |
|
NX3L1T66GM,115IC SW SPST-NOX1 750MOHM 6XSON |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 750mOhm | - | 1.4V ~ 4.3V | - | 28ns, 20ns | 60MHz | 6pC | 35pF | 10nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
