Single IGBTs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IKW50N65EH5XKSA1IGBT TRENCH 650V 80A TO247-3 |
28 |
|
Datasheet |
TrenchStop™ | TO-247-3 | Tube | Active | Trench | 650 V | 80 A | 200 A | 2.1V @ 15V, 50A | 275 W | 1.5mJ (on), 500µJ (off) | Standard | 120 nC | 25ns/172ns | 400V, 50A, 12Ohm, 15V | 81 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
AIKQ120N75CP2XKSA1IGBT 750V 150A TO247-3 |
54 |
|
Datasheet |
- | TO-247-3 | Tube | Active | - | 750 V | 150 A | 360 A | 1.5V @ 15V, 120A | 682 W | 6.82mJ (on), 3.8mJ (off) | Standard | 731 nC | 71ns/244ns | 470V, 120A, 5Ohm, 15V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3-46 |
|
NGTB50N65FL2WGIGBT TRENCH FS 650V 100A TO247-3 |
50 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 100 A | 200 A | 2V @ 15V, 50A | 417 W | 1.5mJ (on), 460µJ (off) | Standard | 220 nC | 100ns/237ns | 400V, 50A, 10Ohm, 15V | 94 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
APT43GA90BD30IGBT PT 900V 78A TO247 |
80 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PT | 900 V | 78 A | 129 A | 3.1V @ 15V, 47A | 337 W | 875µJ (on), 425µJ (off) | Standard | 116 nC | 12ns/82ns | 600V, 25A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
APT35GN120BGIGBT NPT FS 1200V 94A TO247 |
26 |
|
Datasheet |
- | TO-247-3 | Tube | Active | NPT, Trench Field Stop | 1200 V | 94 A | 105 A | 2.1V @ 15V, 35A | 379 W | 2.315mJ (off) | Standard | 220 nC | 24ns/300ns | 800V, 35A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
|
IKZA50N120CH7XKSA1IGBT TRENCH FS 1200V 100A TO247 |
85 |
|
Datasheet |
TRENCHSTOP™ | TO-247-4 | Tube | Active | Trench Field Stop | 1200 V | 100 A | 200 A | 2.15V @ 15V, 50A | 398 W | 950µJ (on), 1.42mJ (off) | Standard | 372 nC | 39ns/333ns | - | 96 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-4-U02 |
|

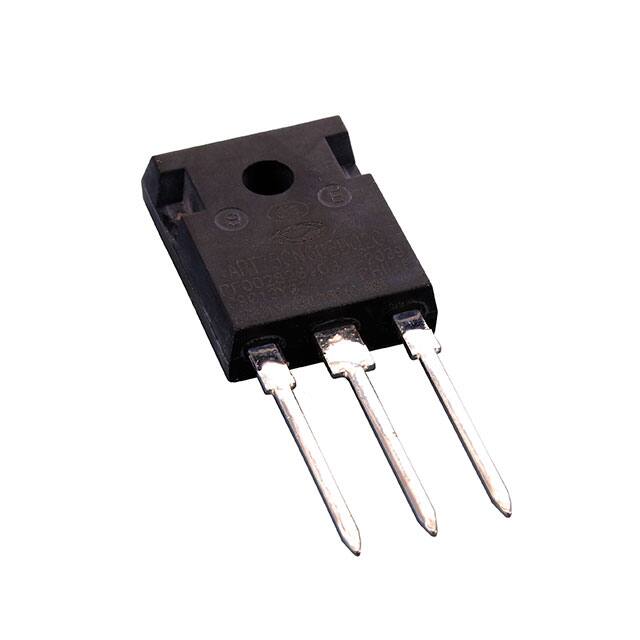

APT75GN60BDQ2GIGBT TRENCH FS 600V 155A TO247-3 |
97 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench Field Stop | 600 V | 155 A | 225 A | 1.85V @ 15V, 75A | 536 W | 2.5mJ (on), 2.14mJ (off) | Standard | 485 nC | 47ns/385ns | 400V, 75A, 1Ohm, 15V | 25 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IKFW75N65EH5XKSA1IGBT TRENCH FS 650V 80A HSIP247 |
68 |
|
Datasheet |
Trenchstop™ 5 | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 80 A | 240 A | 2.1V @ 15V, 60A | 148 W | 1.8mJ (on), 600µJ (off) | Standard | 144 nC | 30ns/206ns | 400V, 60A, 12Ohm, 15V | 75 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-HSIP247-3-2 |
|
APT35GN120L2DQ2GIGBT NPT FIELD STOP 1200V 94A |
60 |
|
Datasheet |
- | TO-264-3, TO-264AA | Tube | Active | NPT, Trench Field Stop | 1200 V | 94 A | 105 A | 2.1V @ 15V, 35A | 379 W | 2.315mJ (off) | Standard | 220 nC | 24ns/300ns | 800V, 35A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
|
APT80GA90BIGBT PT 900V 145A TO247 |
17 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PT | 900 V | 145 A | 239 A | 3.1V @ 15V, 47A | 625 W | 1652µJ (on), 1389µJ (off) | Standard | 200 nC | 18ns/149ns | 600V, 47A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
IXGT6N170AIGBT NPT 1700V 6A TO268AA |
8 |
|
Datasheet |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | NPT | 1700 V | 6 A | 14 A | 7V @ 15V, 3A | 75 W | 590µJ (on), 180µJ (off) | Standard | 18.5 nC | 46ns/220ns | 850V, 6A, 33Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
IXA37IF1200HJIGBT 1200V 58A 195W TO247 |
45 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PT | 1200 V | 58 A | - | 2.1V @ 15V, 35A | 195 W | 3.8mJ (on), 4.1mJ (off) | Standard | 106 nC | - | 600V, 35A, 27Ohm, 15V | 350 ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|
APT45GP120B2DQ2GIGBT PT 1200V 113A |
20 |
|
- |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 1200 V | 113 A | 170 A | 3.9V @ 15V, 45A | 625 W | 900µJ (on), 905µJ (off) | Standard | 185 nC | 18ns/100ns | 600V, 45A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
IXYH25N250CHVIGBT 2500V 235A TO-247HV |
55 |
|
Datasheet |
XPT™ | TO-247-3 | Tube | Active | - | 2500 V | 95 A | 235 A | 4V @ 15V, 25A | 937 W | 8.3mJ (on), 7.3mJ (off) | Standard | 147 nC | 15ns/230ns | 1250V, 25A, 5Ohm, 15V | 34 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
APT75GP120B2GIGBT PT 1200V 100A |
31 |
|
Datasheet |
POWER MOS 7® | TO-247-3 Variant | Tube | Active | PT | 1200 V | 100 A | 300 A | 3.9V @ 15V, 75A | 1042 W | 1620µJ (on), 2500µJ (off) | Standard | 320 nC | 20ns/163ns | 600V, 75A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | - |
|
IXYK100N120C3IGBT 1200V 188A 1150W TO264 |
76 |
|
Datasheet |
GenX3™, XPT™ | TO-264-3, TO-264AA | Tube | Active | - | 1200 V | 188 A | 490 A | 3.5V @ 15V, 100A | 1150 W | 6.5mJ (on), 2.9mJ (off) | Standard | 270 nC | 32ns/123ns | 600V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264 (IXYK) |
|
RGPR30NS40HRTLIGBT 430V 30A IGNITION LPDS |
1,039 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | - | 430 V | 30 A | - | 2.0V @ 5V, 10A | 125 W | - | Standard | 22 nC | 500ns/4µs | 300V, 8A, 100Ohm, 5V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LPDS |
|
RGCL60TK60GC11IGBT TRNCH FIELD 600V 30A TO3PFM |
45 |
|
Datasheet |
- | TO-3PFM, SC-93-3 | Tube | Active | Trench Field Stop | 600 V | 30 A | 120 A | 1.8V @ 15V, 30A | 54 W | 770µJ (on), 1.11mJ (off) | Standard | 68 nC | 44ns/186ns | 400V, 30A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-3PFM |
|
IKA15N65H5XKSA1IGBT 650V 14A TO220-3 |
36 |
|
Datasheet |
TrenchStop® | TO-220-3 Full Pack | Tube | Active | - | 650 V | 14 A | 45 A | 2.1V @ 15V, 15A | 33.3 W | 120µJ (on), 50µJ (off) | Standard | 38 nC | 17ns/160ns | 400V, 7.5A, 39Ohm, 15V | 48 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-111 |
|
|
RGCL60TK60DGC11IGBT TRNCH FIELD 600V 30A TO3PFM |
34 |
|
Datasheet |
- | TO-3PFM, SC-93-3 | Tube | Active | Trench Field Stop | 600 V | 30 A | 120 A | 1.8V @ 15V, 30A | 54 W | 770µJ (on), 1.11mJ (off) | Standard | 68 nC | 44ns/186ns | 400V, 30A, 10Ohm, 15V | 58 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-3PFM |
Single IGBTs Electronic Components
Explore Single IGBTs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
