| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GT75LA60UFMODULES IGBT - SOT-227 IGBT |
8,138 |
|
- |
FRED Pt® | SOT-227-4, miniBLOC | Bulk | Active | Trench Field Stop | Single Chopper | 600 V | 81 A | 231 W | 2.26V @ 15V, 70A | 100 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SOT-227 |
|
GA200SA60UIGBT MOD 600V 200A 500W SOT227B |
5,986 |
|
- |
- | SOT-227-4, miniBLOC | - | Obsolete | - | Single | 600 V | 200 A | 500 W | 1.9V @ 15V, 100A | 1 mA | 16.5 nF @ 30 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
APT100GT60JRDQ4IGBT MOD 600V 148A 500W ISOTOP |
3,514 |
|
- |
Thunderbolt IGBT® | ISOTOP | Tube | Obsolete | NPT | Single | 600 V | 148 A | 500 W | 2.5V @ 15V, 100A | 50 µA | 5.15 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
F3L50R06W1E3B11BOMA1IGBT MODULE 600V 75A 175W |
5,613 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 50 A | 175 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
DF200R12W1H3B27BOMA1IGBT MOD 1200V 30A 375W |
7,524 |
|
- |
- | Module | Tray | Active | - | 2 Independent | 1200 V | 30 A | 375 W | 1.3V @ 15V, 30A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
APTGT100A602GIGBT MODULE 600V 150A 340W SP2 |
2,781 |
|
- |
- | SP2 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 50 µA | 6.1 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Through Hole | SP2 |
|
|
APTGF25A120T1GIGBT MODULE 1200V 40A 208W SP1 |
5,332 |
|
- |
- | SP1 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
MWI30-12E6KIGBT MODULE 1200V 29A 130W E1 |
8,318 |
|
- |
- | E1 | Box | Obsolete | - | Three Phase Inverter | 1200 V | 29 A | 130 W | 2.9V @ 15V, 20A | 1 mA | 1.18 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
APTGT30TL60T3GIGBT MODULE 600V 50A 90W SP3 |
7,596 |
|
- |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Three Level Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT20DDA60T3GIGBT MODULE 600V 32A 62W SP3 |
3,026 |
|
- |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Dual Boost Chopper | 600 V | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT20DSK60T3GIGBT MODULE 600V 32A 62W SP3 |
6,341 |
|
- |
- | SP3 | Bulk | Obsolete | Trench Field Stop | Dual Buck Chopper | 600 V | 32 A | 62 W | 1.9V @ 15V, 20A | 250 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
FMG2G50US60IGBT MODULE 600V 50A 250W 7PMGA |
4,628 |
|
- |
- | 7PM-GA | Bulk | Obsolete | - | Half Bridge | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 250 µA | 3.46 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|

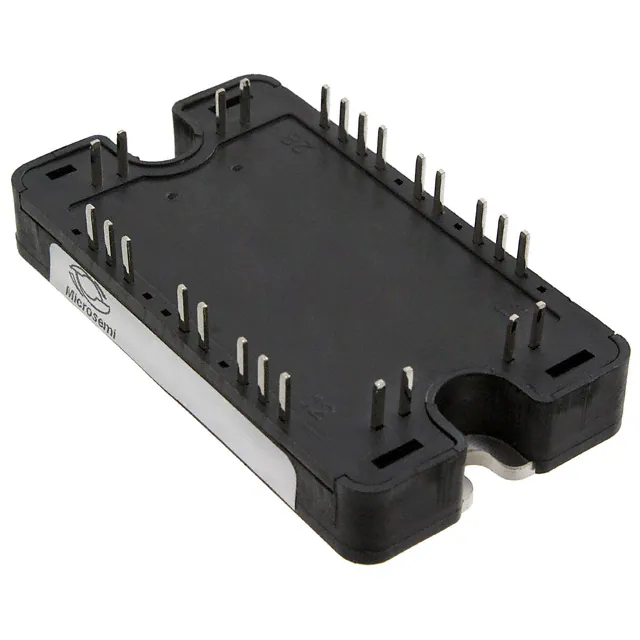

APTGF30H60T3GIGBT MODULE 600V 42A 140W SP3 |
2,118 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 42 A | 140 W | 2.45V @ 15V, 30A | 250 µA | 1.35 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
FP30R06W1E3PBPSA1LOW POWER EASY AG-EASY1B-311 |
2,706 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IXGN82N120B3H1IGBT MOD 1200V 145A 595W SOT227B |
5,178 |
|
- |
GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 1200 V | 145 A | 595 W | 3.2V @ 15V, 82A | 50 µA | 7.9 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

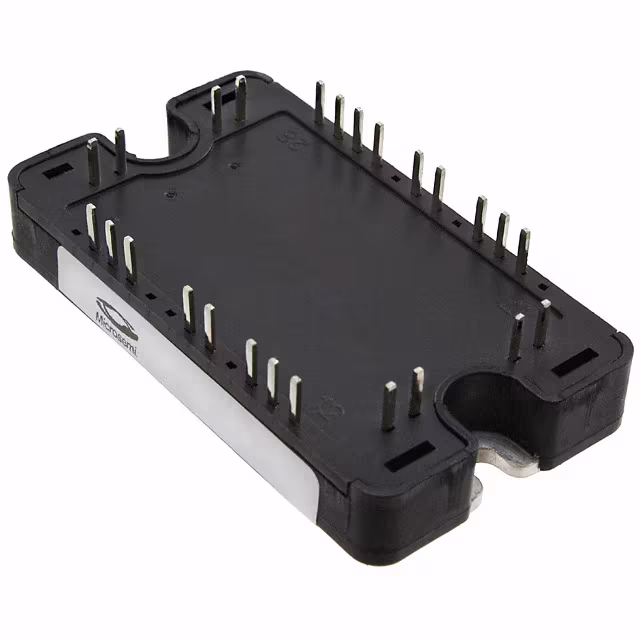

APTGF50VDA60T3GIGBT MODULE 600V 65A 250W SP3 |
7,770 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Dual Boost Chopper | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGT50A1202GIGBT MODULE 1200V 75A 277W SP2 |
5,319 |
|
- |
- | SP2 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 50 µA | 3.6 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP2 |
|
|
FMS6G10US60SIGBT MODULE 600V 10A 66W 25PMAA |
9,286 |
|
- |
- | 25PM-AA | Box | Obsolete | - | Three Phase Inverter | 600 V | 10 A | 66 W | 2.7V @ 15V, 10A | 250 µA | 710 pF @ 30 V | Single Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 25PM-AA |
|
|
APTGT25A120T1GIGBT MODULE 1200V 40A 156W SP1 |
4,471 |
|
- |
- | SP1 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 40 A | 156 W | 2.1V @ 15V, 25A | 250 µA | 1.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
.JPG)
|
FP7G100US60IGBT MODULE 600V 100A 400W EPM7 |
8,500 |
|
- |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 6.085 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
