IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STGE50NC60WDIGBT MOD 600V 100A 260W ISOTOP |
9,630 |
|
- |
PowerMESH™ | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 100 A | 260 W | 2.6V @ 15V, 40A | 500 µA | 4.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP |
|
APT100GF60JU2IGBT MOD 600V 120A 416W SOT227 |
4,444 |
|
- |
- | ISOTOP | Bulk | Obsolete | NPT | Single | 600 V | 120 A | 416 W | 2.5V @ 15V, 100A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | - | Chassis Mount | SOT-227 |
|
|
APT100GF60JU3IGBT MOD 600V 120A 416W SOT227 |
7,333 |
|
- |
- | ISOTOP | Bulk | Obsolete | NPT | Single | 600 V | 120 A | 416 W | 2.5V @ 15V, 100A | 100 µA | 4.3 nF @ 25 V | Standard | No | - | Chassis Mount | SOT-227 |
|
|
APT100GT60JRIGBT MOD 600V 148A 500W ISOTOP |
5,331 |
|
- |
Thunderbolt IGBT® | ISOTOP | Tube | Obsolete | NPT | Single | 600 V | 148 A | 500 W | 2.5V @ 15V, 100A | 25 µA | 5.15 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
IX526119ITF40PF1200DHGTLB-TRR |
2,656 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IX526112ITF40PF1200DHGTLB-TUB |
3,286 |
|
- |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HGT1N30N60A4DIGBT MOD 600V 96A 255W SOT227B |
6,466 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 96 A | 255 W | 2.7V @ 15V, 30A | 250 µA | - | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXGN120N60A3IGBT MOD 600V 200A 595W SOT227B |
4,470 |
|
- |
GenX3™ | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 200 A | 595 W | 1.35V @ 15V, 100A | 50 µA | 14.8 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
APT75GN120JDQ3GIGBT MOD 1200V 124A 379W ISOTOP |
8,954 |
|
- |
- | ISOTOP | Tube | Discontinued at Digi-Key | Trench Field Stop | Single | 1200 V | 124 A | 379 W | 2.1V @ 15V, 75A | 200 µA | 4.8 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
IXGN50N60BD3IGBT MOD 600V 75A 250W SOT227B |
5,358 |
|
- |
HiPerFAST™ | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 75 A | 250 W | 2.5V @ 15V, 50A | 200 µA | 4.1 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
MIXA10W1200TMHIGBT MOD 1200V 17A 65W MINIPACK2 |
5,930 |
|
- |
- | MiniPack2 | Box | Obsolete | PT | Three Phase Inverter | 1200 V | 17 A | 65 W | 2.1V @ 15V, 9A | 150 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | MiniPack2 |
|
|
IXGN400N30A3IGBT MOD 300V 400A 735W SOT227B |
3,575 |
|
- |
GenX3™ | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 300 V | 400 A | 735 W | 1.15V @ 15V, 100A | 50 µA | 19 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
MIXA80R1200VAIGBT MOD 1200V 120A 390W V1A-PAK |
6,088 |
|
- |
- | V1A-PAK | Box | Active | PT | Single | 1200 V | 120 A | 390 W | 2.2V @ 15V, 77A | 200 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | V1A-PAK |
|
|
IXGN100N120IGBT MODULE 1200V 160A SOT227B |
9,715 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 1200 V | 160 A | - | - | - | - | Standard | No | - | Chassis Mount | SOT-227B |
|
FS30R06W1E3B11BOMA1IGBT MODULE 600V 45A 150W |
4,312 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 45 A | 150 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
STGE50NC60VDIGBT MODULE 600V 90A 260W ISOTOP |
6,414 |
|
- |
PowerMESH™ | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 90 A | 260 W | 2.5V @ 15V, 40A | 150 µA | 4.55 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP |
|

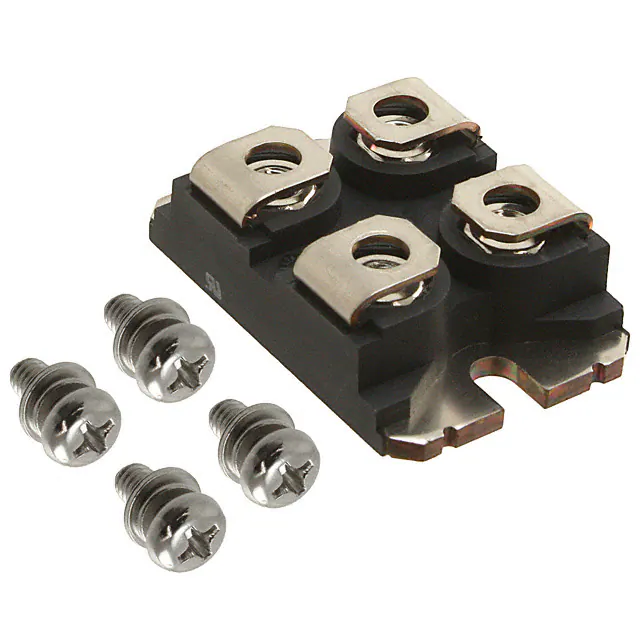

IXGN120N60A3D1IGBT MOD 600V 200A 595W SOT227B |
9,137 |
|
- |
GenX3™ | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 200 A | 595 W | 1.35V @ 15V, 100A | 650 µA | 14.8 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
APT50GLQ65JU2IGBT MODULE 650V 80A 220W ISOTOP |
8,440 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | Trench Field Stop | Boost Chopper | 650 V | 80 A | 220 W | 2.3V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
VS-GB75DA120UPIGBT MODULE 1200V 658W SOT227 |
4,793 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | NPT | Single | 1200 V | - | 658 W | 3.8V @ 15V, 75A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
CPV363M4FIGBT MODULE 600V 16A 36W IMS-2 |
4,644 |
|
- |
- | 19-SIP (13 Leads), IMS-2 | - | Obsolete | - | Three Phase Inverter | 600 V | 16 A | 36 W | 1.63V @ 15V, 16A | 250 µA | 1.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | IMS-2 |
