IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF400R17KE4EHOSA1IGBT MODULE 1700V 400A |
2,950 |
|
- |
C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | - | 2.3V @ 15V, 400A | 1 mA | 36 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF400R12KT3HOSA1IGBT MOD 1200V 580A 2000W |
2,722 |
|
- |
C | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | 580 A | 2000 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FS3L200R10W3S7FB94BPSA1LOW POWER EASY AG-EASY3B-7011 |
2,759 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 70 A | - | 1.53V @ 15V, 30A | 31 µA | 6.48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
MSCGLQ50H120CTBL2NGPM-IGBT-SBD-BL2 |
3,630 |
|
- |
- | Module | Bulk | Active | - | Full Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50DDU120CTBL2NGPM-IGBT-SBD-BL2 |
7,874 |
|
- |
- | Module | Bulk | Active | - | Full Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
FF500R17KE4BOSA1IGBT MODULE 1700V 500A |
2,481 |
|
- |
C | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 500 A | - | 2.3V @ 15V, 500A | 1 mA | 45 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
F3L400R10W3S7FB11BPSA1IGBT MODULE LOW POWER EASY |
2,784 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 220 A | - | 2V @ 15V, 150A | 71 µA | 49.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
|
NXH400N100H4Q2F2SGMASS MARKET 250KW 1500V Q2 PACK |
4,479 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1000 V | 409 A | 959 W | 2.3V @ 15V, 400A | 500 µA | 26.093 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 42-PIM/Q2PACK (93x47) |
|
|
FF600R12ME4WB73BPSA1MEDIUM POWER ECONO |
1 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
FF600R17ME4BOSA1IGBT MODULE VCES 1700V 600A |
4,041 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | - | - | 2.3V @ 15V, 600A | 1 mA | 48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

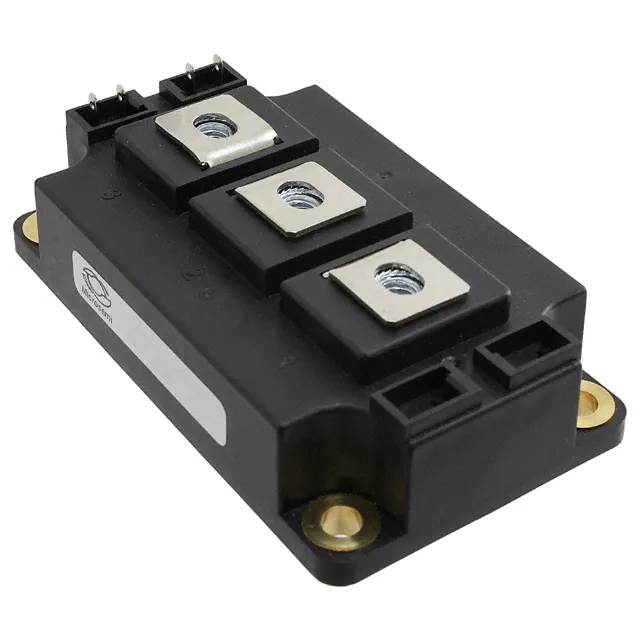

APTGT400A60D3GIGBT MODULE 600V 500A 1250W D3 |
1 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 500 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
FS300R12OE4BOSA1IGBT MOD 1200V 460A 1650W |
4,771 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 460 A | 1650 W | 2.1V @ 15V, 300A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF1500R12IE5BPSA1IGBT MOD 1200V 1500A 20MW |
9,730 |
|
- |
PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1500 A | - | 2.15V @ 15V, 1500A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF1200R12IE5PBPSA1IGBT MOD 1200V 2400A 20MW |
8,340 |
|
- |
PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 2400 A | - | 2.15V @ 15V, 1200A | 5 mA | 65.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
|
FF1800R12IE5PBPSA1IGBT MOD 1200V 1800A 20MW |
2,508 |
|
- |
PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1800 A | - | 2.15V @ 15V, 1800A | 5 mA | 98.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF2400RB12IP7PBPSA1PP IHM I XHP 1 7KV AG-PRIME3+-71 |
1 |
|
- |
PrimePACK™3 | - | Tray | Active | - | 2 Independent | 750 V | 2400 A | - | - | - | - | Standard | No | - | - | - |
|

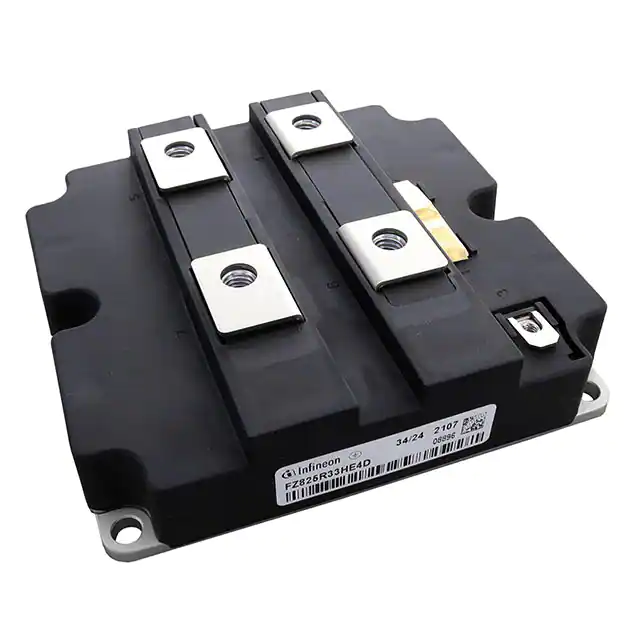

FZ825R33HE4DBPSA1HV B SINGLE SWITCH POWER MODULES |
9,522 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 3300 V | 825 A | 2400000 W | 2.65V @ 15V, 825A | 5 mA | 93.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB130-3 |
|
FZ2400R17HP4B29BOSA2IGBT MODULE 1700V 4800A |
1 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1700 V | 4800 A | 15500 W | 2.25V @ 15V, 2400A | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FZ750R65KE3NOSA1IGBT MOD 6500V 750A A-IHV190-6 |
1 |
|
- |
- | Module | Tray | Active | - | Single | 6500 V | 750 A | 14500 W | 3.4V @ 15V, 750A | 5 mA | 205 nF @ 25 V | Standard | No | -50°C ~ 125°C | Chassis Mount | Module |
|
P2000DL45X168HPSA1PRESS PACK IGBT |
1 |
|
- |
- | TO-200AF | Tray | Active | Trench | Single | 4500 V | 2000 A | - | 2.5V @ 15V, 2000A | 200 µA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | BG-P16826K-1 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
