IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F4100R12N2H3FB11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
2 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIP50R12E2ATN-BPIGBT MODULES 1200V 50A, E2A |
5 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 50 A | 288 W | 2.3V @ 15V, 50A | 1 mA | 2.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2A |
|
DDB6U180N16RRPB37BPSA1LOW POWER ECONO |
16 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DF450R17N2E4PB11BPSA1IGBT MODULE LOW POWER ECONO |
6 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF400R12KT4PBOSA1FF400R12KT4P - 1200 V, 400 A DUA |
3 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 400 A | - | 2.05V @ 15V, 400A | 5 mA | 28000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-62MMHB |
|
|
MSCGLQ200SK65TGPM-IGBT-SP4 |
6 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

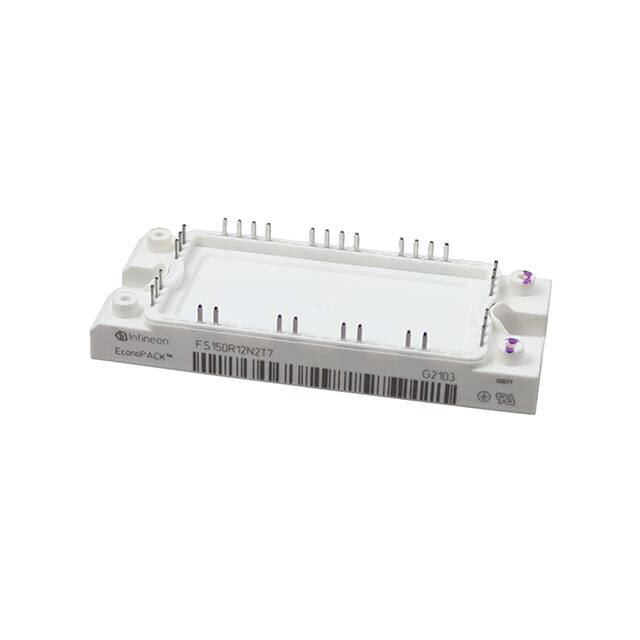

FS150R12N2T7BPSA1LOW POWER ECONO AG-ECONO2-6 |
10 |
|
- |
EconoPACK™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Level Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 1.2 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2 |
|
|
BSM400GA170DLSIGBT MODULE |
2 |
|
- |
- | Module | Bulk | Active | - | Single | 1700 V | 800 A | 3120 W | 3.3V @ 15V, 400A | 1 mA | 27 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
|
MIP75R12E2ATN-BPIGBT MODULES 1200V 75A, E2A |
3 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 75 A | 476 W | 2.15V @ 15V, 75A | 1 mA | 4.2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2A |
|
FF300R12KT3EHOSA1IGBT MOD 1200V 480A 1450W |
3,013 |
|
- |
C | Module | Bulk | Not For New Designs | - | 2 Independent | 1200 V | 480 A | 1450 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FF300R12KE3B2HOSA1MEDIUM POWER 62MM |
10 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Single Switch | 1200 V | 440 A | 1450 W | 2V @ 15V, 300A | 5 mA | 21000 pF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
FS150R12PT4INSULATED GATE BIPOLAR TRANSISTO |
10 |
|
- |
EconoPACK™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 680 W | 2.15V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO4-1-1 |
|
FS100R12KT4GB11BOSA1IGBT MOD 1200V 100A 515W |
8,094 |
|
- |
EconoPACK™ 3 | Module | Bulk | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FD900R12IP4DBOSA1IGBT MOD 1200V 900A 5100W |
5,430 |
|
- |
PrimePACK™2 | Module | Tray | Active | - | Single Chopper | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF300R17ME4B11BOSA1IGBT MOD 1700V 375A 1800W |
8,869 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 1700 V | 375 A | 1800 W | 2.3V @ 15V, 300A | 3 mA | 24.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R06ME3BOSA1MEDIUM POWER ECONO |
2 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP75R17N3E4B11BPSA1IGBT MOD 1700V 150A 20MW |
2,056 |
|
- |
EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | - | 2.3V @ 15V, 75A | 1 mA | 6.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF225R17ME3BOSA1IGBT MOD 1700V 340A 1400W |
5,674 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Not For New Designs | Trench Field Stop | Half Bridge Inverter | 1700 V | 340 A | 1400 W | 2.45V @ 15V, 225A | 3 mA | 20.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
A2F12M12W2-F1ACEPACK 2 POWER MODULE, FOURPACK |
21 |
|
- |
- | Module | Tray | Active | - | Full Bridge | - | - | - | - | - | 7 nF @ 800 V | Standard | Yes | 175°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
BYM300B170DN2HOSA1IGBT MOD 650V 40A 20MW |
4,202 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | 2 Independent | 650 V | 40 A | - | 1.55V @ 15V, 25A | 40 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
