IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

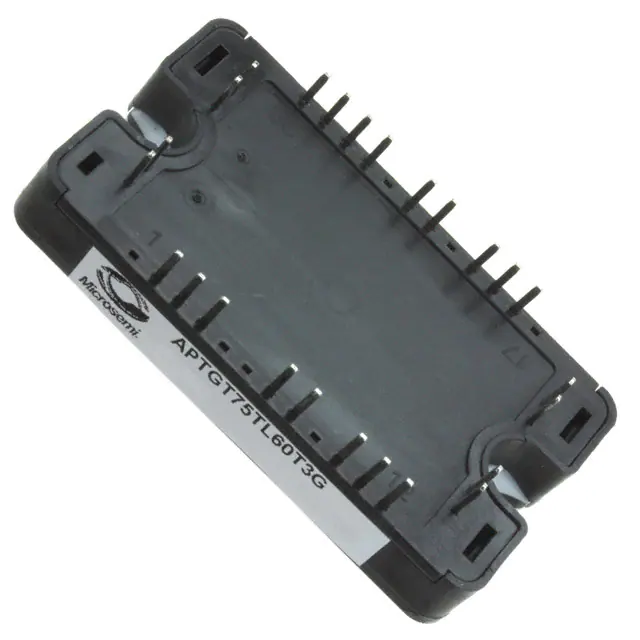

APTGT75TL60T3GIGBT MODULE 600V 100A 250W SP3 |
6 |
|
- |
- | SP3 | Tube | Active | Trench Field Stop | Three Level Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
FMG1G300US60HIGBT, 300A, 600V, N-CHANNEL |
15 |
|
- |
- | Module | Bulk | Active | - | Single | 600 V | 300 A | 892 W | 2.7V @ 15V, 300A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
FMG1G300US60LIGBT, 300A, 600V, N-CHANNEL |
14 |
|
- |
- | Module | Bulk | Active | - | Single | 600 V | 300 A | 892 W | 2.7V @ 15V, 300A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
FP50R12N2T7B11BPSA1LOW POWER ECONO AG-ECONO2B-711 |
7 |
|
- |
EconoPIM™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
MSCGLQ100A65TGPM-IGBT-SP4 |
9 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM75GB120DN2_E3223C-SEIGBT MODULE |
23 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP25R12KS4CBOSA1IGBT MOD 1200V 40A 230W |
6,847 |
|
- |
- | Module | Bulk | Obsolete | - | Single | 1200 V | 40 A | 230 W | 3.7V @ 15V, 25A | 5 mA | 1.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS3L40R07W2H5FB11BOMA1IGBT MODULE LOW POWER EASY |
3,291 |
|
- |
EasyPACK™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 650 V | 40 A | - | 1.81V @ 15V, 20A | 18 µA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
|
FMG1G400US60HIGBT, 400A, 600V, N-CHANNEL |
18 |
|
- |
- | Module | Bulk | Active | - | Single | 600 V | 400 A | 1136 W | 2.7V @ 15V, 400A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
FMG1G400US60LIGBT, 400A, 600V, N-CHANNEL |
8 |
|
- |
- | Module | Bulk | Active | - | Single | 600 V | 400 A | 1136 W | 2.7V @ 15V, 400A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
DDB6U180N16RRB37BOSA1IGBT MODULE |
9,914 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount | Module |
|
FF300R07ME4B11BOSA1IGBT MOD 650V 390A 1100W |
3 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 650 V | 390 A | 1100 W | 1.95V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FD300R06KE3HOSA1IGBT MOD 600V 400A 940W |
5,698 |
|
- |
C | Module | Bulk | Active | Trench Field Stop | Single | 600 V | 400 A | 940 W | 1.9V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS75R12KE3B9BOSA1IGBT MOD 1200V 105A 355W |
4,748 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM150GB170DN2E3256HDLA1BSM150GB170DN2 - INSULATED GATE |
14 |
|
- |
- | Module | Bulk | Active | - | 2 Independent | 1700 V | 300 A | 1250 W | 3.2V @ 15V, 150A | 300 µA | 10 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
NXH50C120L2C2ESGIGBT MODULE, CIB 1200 V, 50 A IG |
4,647 |
|
- |
- | 26-PowerDIP Module (1.199", 47.20mm) | Tube | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 50 A | 20 mW | 2.4V @ 15V, 50A | 250 µA | 11.897 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-DIP |
|
FP75R12N2T7BPSA1LOW POWER ECONO AG-ECONO2B-711 |
2 |
|
- |
EconoPIM™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.55V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FMG2G400US60IGBT, 400A, 600V, N-CHANNEL |
3 |
|
- |
- | 7PM-IA | Box | Obsolete | - | Half Bridge | 600 V | 400 A | 1136 W | 2.7V @ 15V, 400A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-IA |
|
|
MSCGLQ200A65TGPM-IGBT-SP4 |
9 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM50GD60DLCBOSA1IGBT MODULE 600V 70A 250W |
6,991 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 70 A | 250 W | 2.45V @ 15V, 50A | 500 µA | 2.2 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
