Helical Filters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency - Center | Bandwidth | Selectivity | Ripple | Insertion Loss | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

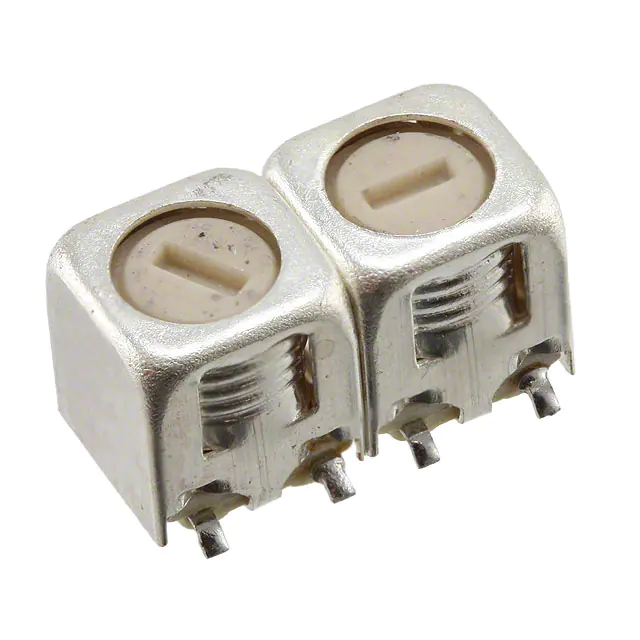

492S-1059A=P3HELICAL FILTER 456MHZ CENTER |
770 |
|
Datasheet |
5CHW | Cut Tape (CT) | Obsolete | 456 MHz | 10 MHz | 16dB (+50MHz) 12dB (-50MHz) | 0.5dB | 3.5dB | Surface Mount |
|

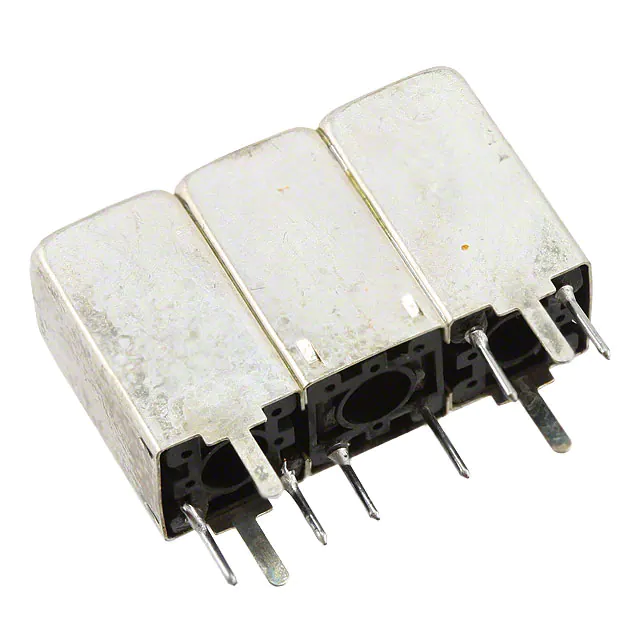

302HXPK-1035DHELICAL FILTER 456MHZ CENTER |
646 |
|
- |
7HT | Bulk | Obsolete | 456 MHz | 4.5 MHz | 22dB (+20MHz) 29dB (-20MHz) | 0.5dB | 5dB | Through Hole |
|
477MS-1036A=P3HELICAL FILTER 933MHZ CENTER |
1,290 |
|
Datasheet |
5CHLW | Tape & Reel (TR) | Obsolete | 933 MHz | 25 MHz | 18dB (+100MHz) 25dB (-100MHz) | 1dB | 2.5dB | Surface Mount |
|

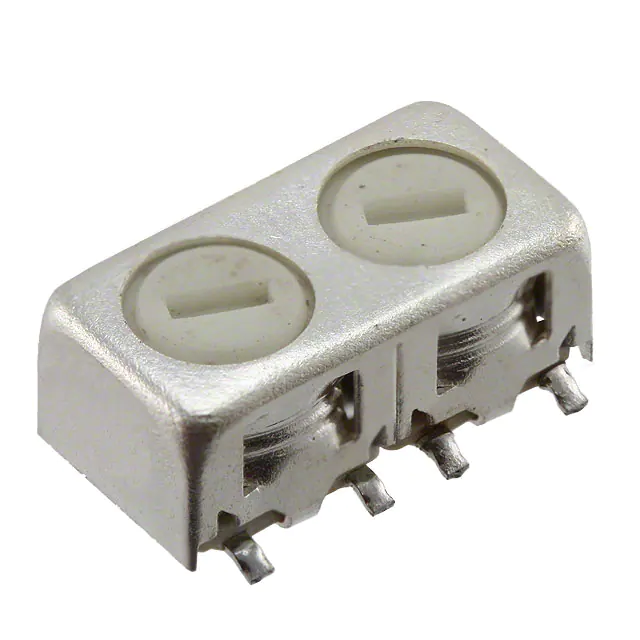

477MS-1035A=P3HELICAL FILTER 915MHZ CENTER |
6,403 |
|
Datasheet |
5CHLW | Tape & Reel (TR) | Obsolete | 915 MHz | 25 MHz | 18dB (+100MHz) 25dB (-100MHz) | 1dB | 2.5dB | Surface Mount |
|

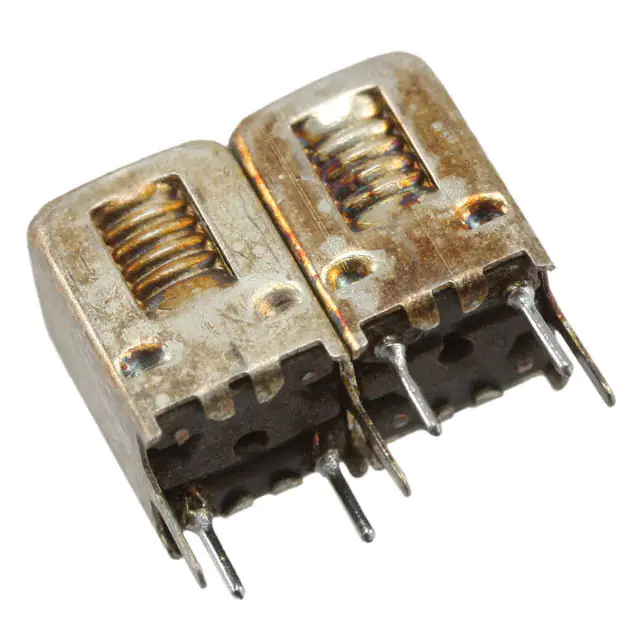

5HW-35045A-365HELICAL FILTER 365MHZ CENTER |
787 |
|
Datasheet |
5HW | Bulk | Obsolete | 365 MHz | 6 MHz | 20dB (+50MHz) 25dB (-50MHz) | 1dB | 4.5dB | Through Hole |
|

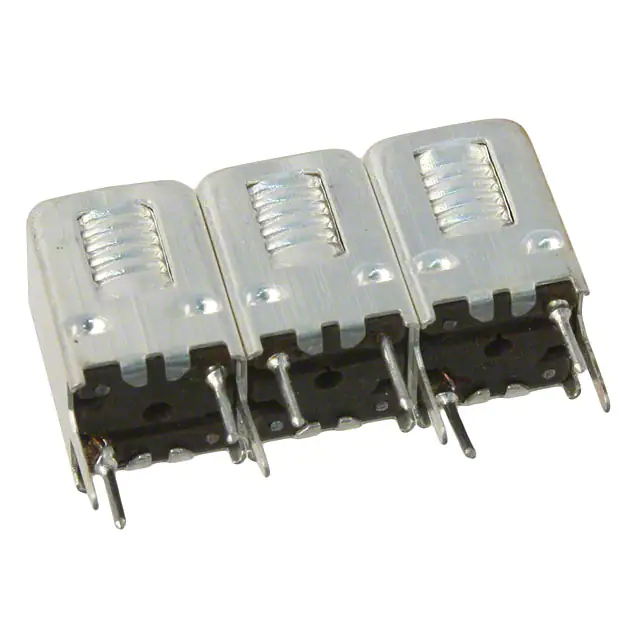

5HT-44020AS-440HELICAL FILTER 440MHZ CENTER |
108 |
|
Datasheet |
5HT | Bulk | Obsolete | 440 MHz | 14 MHz | 25dB (+50MHz) 28dB (-50MHz) | 1dB | 4dB | Through Hole |
|
#5HT-36020AS-360HELICAL FILTER 360MHZ CENTER |
283 |
|
- |
5HT | Bulk | Obsolete | 360 MHz | 16 MHz | 25dB (+50MHz) 33dB (-50MHz) | 1dB | 4dB | Through Hole |
|
302HXPK-1271BHELICAL FILTER 1.015GHZ CENTER |
313 |
|
- |
7HT | Bulk | Obsolete | 1.015 GHz | 10 MHz | 16dB (+40MHz) 20dB (-40MHz) | 2dB | 4dB | Through Hole |
|

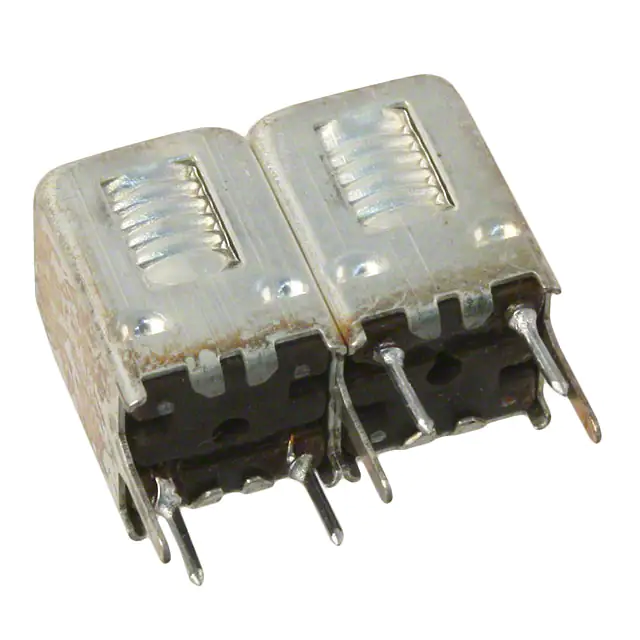

5HW-78045A-820HELICAL FILTER 820MHZ CENTER |
112 |
|
Datasheet |
5HW | Bulk | Obsolete | 820 MHz | 16 MHz | 24dB (+100MHz) 22dB (-100MHz) | 1dB | 3.5dB | Through Hole |
|

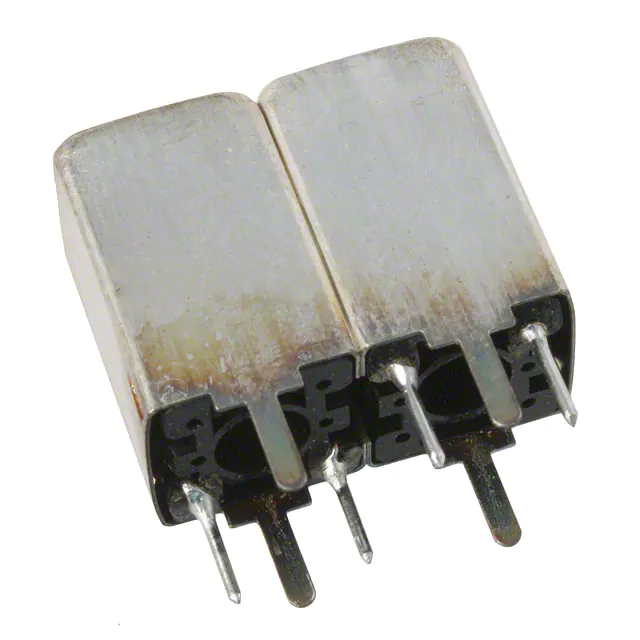

#252MXPR-2535AHELICAL FILTER 405MHZ CENTER |
144 |
|
- |
7HW | Bulk | Discontinued at Digi-Key | 405 MHz | - | - | - | - | Through Hole |
|

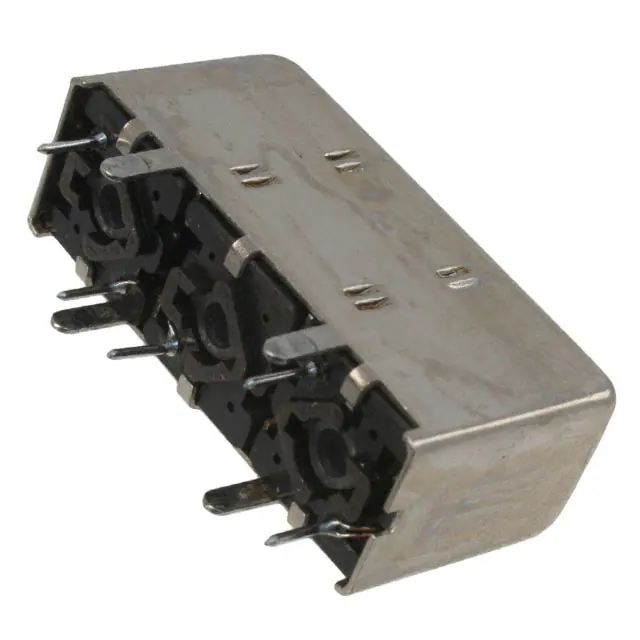

272MT-1080AHELICAL FILTER 223MHZ CENTER |
217 |
|
Datasheet |
CBT | Bulk | Obsolete | 223 MHz | 2.6 MHz | 40dB (+20MHz) 28dB (-10MHz) | 0.5dB | 6dB | Through Hole |
|
CT5HTF-460TRI TUNED TNBLE BAND PASS FILTER |
250 |
|
Datasheet |
CT5HTF | Bulk | Active | 460 MHz | 18 MHz | 25dB (+50MHz) 28dB (-50MHz) | 1dB | 4dB | Through Hole |
|

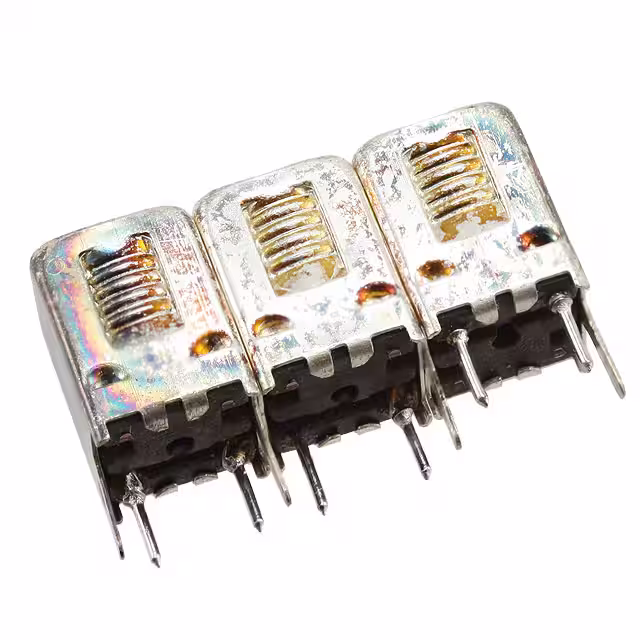

5HT-83050F-830HELICAL FILTER 830MHZ CENTER |
22 |
|
Datasheet |
5HT | Bulk | Obsolete | 830 MHz | 15 MHz | 22dB (+50MHz) 26dB (-50MHz) | 1dB | 4dB | Through Hole |
|

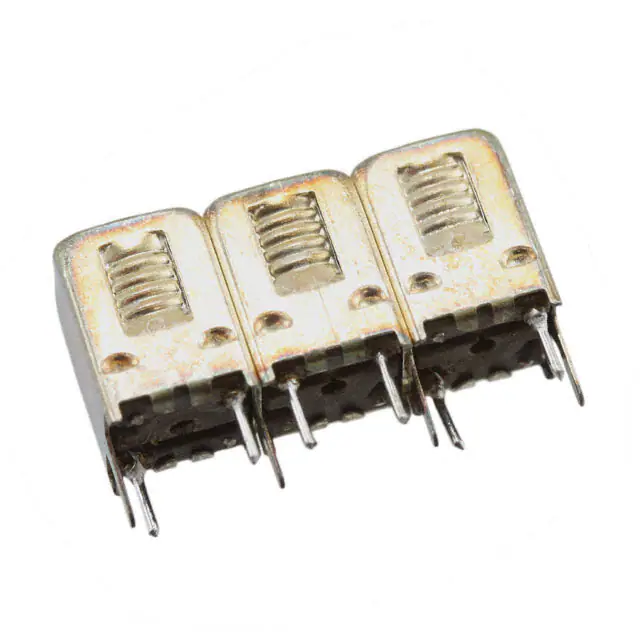

5HT-36020AS-360HELICAL FILTER 360MHZ CENTER |
45 |
|
Datasheet |
5HT | Bulk | Obsolete | 360 MHz | 16 MHz | 25dB (+50MHz) 33dB (-50MHz) | 1dB | 4dB | Through Hole |
|

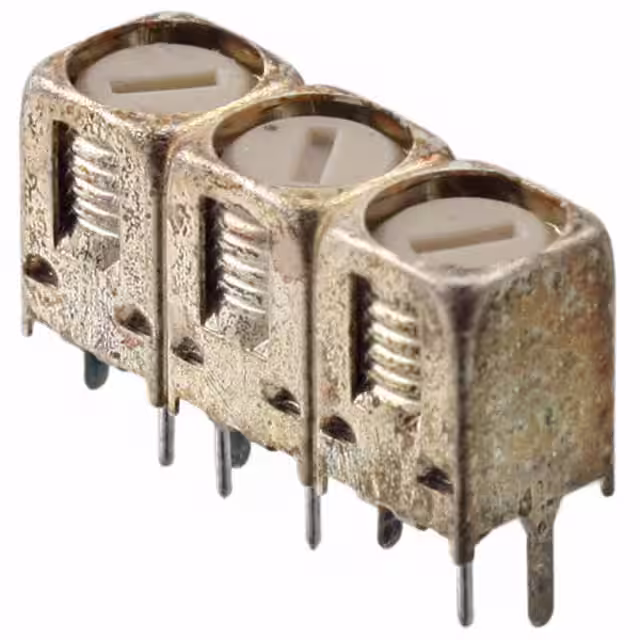

5HT-51535AS-515HELICAL FILTER 515MHZ CENTER |
21 |
|
Datasheet |
5HT | Bulk | Obsolete | 515 MHz | 16 MHz | 20dB (+50MHz) 25dB (-50MHz) | 1dB | 4dB | Through Hole |
|

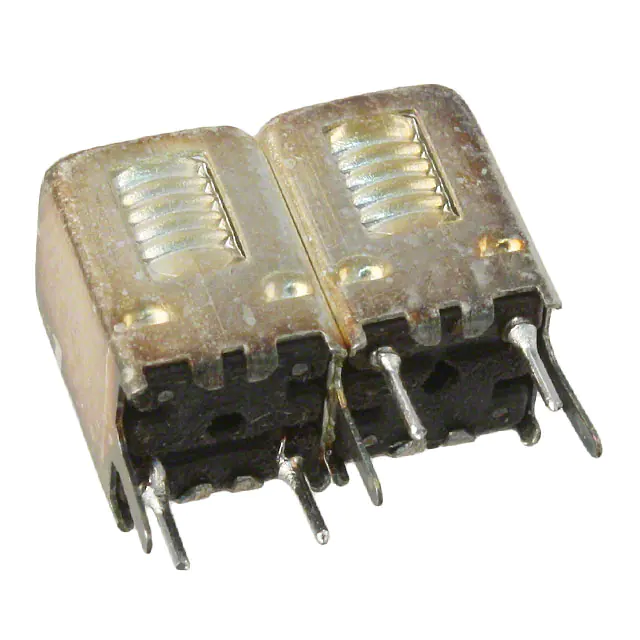

#5HW-88560A-914HELICAL FILTER 914MHZ CENTER |
70 |
|
- |
5HW | Bulk | Obsolete | 914 MHz | 18 MHz | 19dB (+100MHz) 24dB (-100MHz) | 1dB | 3.5dB | Through Hole |
|

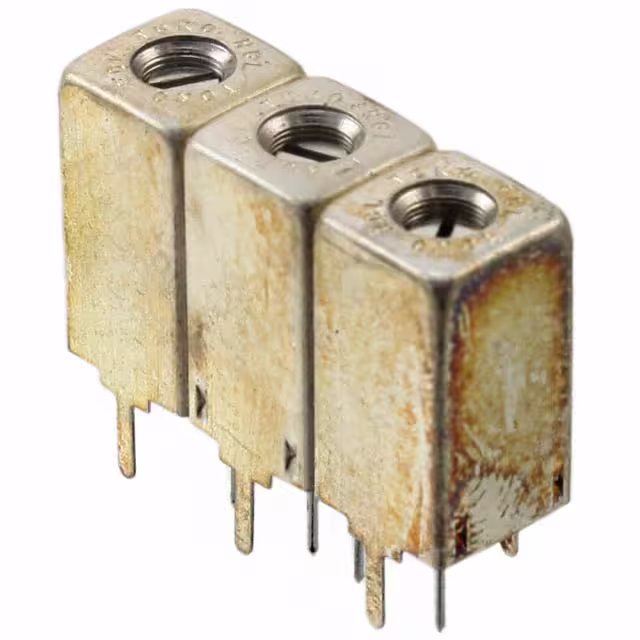

302HXPK-1341D1HELICAL FILTER 813MHZ CENTER |
22 |
|
- |
7HT | Bulk | Obsolete | 813 MHz | 17 MHz | 16dB (+50MHz) 23dB (-50MHz) | 0.5dB | 3dB | Through Hole |
