Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.2mmX1.60mmX.70mm.jpg)
|
HFC32632AGTPFUSE CHIP 6.3A 76VDC 1206 |
7,071 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Surface Mount | - | 6.3 A | - | 76 V | - | 50A | - | CSA, UL | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) | |
|
0217015.TXPFUSE GLASS 15A 250VAC 5X20MM |
5,135 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 15 A | 250 V | - | Fast Blow | 150A | 607.135 | CE, PSE, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0287001.HFUSE AUTO 1A 32VDC BLADE ATO/ATC |
90 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 1 A | - | 32 V | Fast Blow | 1kA | 0.4 | UL | -40°C ~ 105°C | Black | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0287040.HFUSE AUTO 40A 32VDC BLADE ATO |
77 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 32 V | - | - | 3310.0 | CSA, UL | -40°C ~ 105°C | Orange | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
03121.75HXPFUSE GLASS 1.75A 250VAC 3AB 3AG |
35 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.75 A | 250 V | - | Fast Blow | 100A | 3.6 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
031201.8HXPFUSE GLASS 1.8A 250VAC 3AB 3AG |
28 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.8 A | 250 V | - | Fast Blow | 100A | 3.85 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0697H6300-05FUSE BRD MNT 6.3A 350VAC 72VDC |
5 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 6.3 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 180.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
|
031201.6HXPFUSE GLASS 1.6A 250VAC 3AB 3AG |
93 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.6 A | 250 V | - | Fast Blow | 100A | 2.8 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0297002.HFUSE AUTOMOTIVE 2A 32VDC BLADE |
100 |
|
Datasheet |
MINI® 297 | Box | Active | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 2.8 | UR | -40°C ~ 125°C | Gray | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297004.HFUSE AUTOMOTIVE 4A 32VDC BLADE |
99 |
|
Datasheet |
MINI® 297 | Box | Active | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 17.0 | UR | -40°C ~ 125°C | Pink | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297020.LFUSE AUTO 20A 32VDC BLADE MINI |
87 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 380.0 | UR | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0327030.LXSFUSE AUTO 30A 32VDC BLADE MICRO |
50 |
|
Datasheet |
MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | - | 1kA | 1028.0 | - | -40°C ~ 125°C | Green | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0297015.HFUSE AUTO 15A 32VDC BLADE MINI |
42 |
|
Datasheet |
MINI® 297 | Box | Active | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 270.0 | UR | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0327005.LXSFUSE AUTO 5A 32VDC BLADE 50 PC |
40 |
|
Datasheet |
MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | - | 1kA | 17.0 | - | -40°C ~ 125°C | Orange | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0034.6031FUSE BOARD MNT 50MA 250VAC RAD |
24 |
|
Datasheet |
MSF 250 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 50 mA | 250 V | - | Fast Blow | 35A | 4.0E-4 | CCC, cURus, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.335" H (8.50mm x 8.50mm) | |
|
MRT 1.6-BULKFUSE BOARD MNT 1.6A 250VAC RAD |
2,463 |
|
Datasheet |
MRT | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.6 A | 250 V | - | Slow Blow | 50A | 17.0 | AEC-Q200, CCC, CE, CSA, cURus, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.329" Dia x 0.303" H (8.35mm x 7.70mm) | |
|

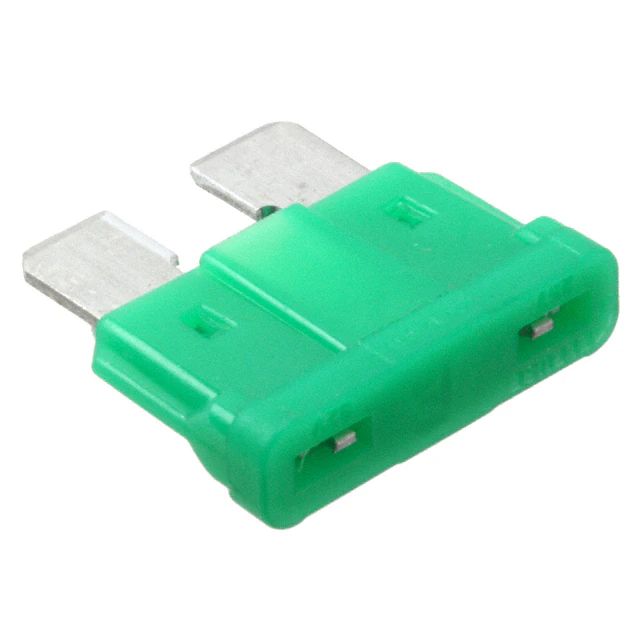

0287030.LFUSE AUTO 30A 32VDC BLADE ATO |
17 |
|
Datasheet |
ATOF® | Box | Active | Requires Holder | Automotive | 30 A | - | 32 V | - | - | 1510.0 | CSA, UL | -40°C ~ 105°C | Green | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
02351.25HXPFUSE GLASS 1.25A 250VAC 5X20MM |
2,911 |
|
Datasheet |
235 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | - | Fast Blow | 100A | 1.085 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0235.700HXPFUSE GLASS 700MA 250VAC 5X20MM |
16 |
|
Datasheet |
235 | Bulk | Active | Requires Holder | Cartridge, Glass | 700 mA | 250 V | - | Fast Blow | 35A | 0.156 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
36916300440FUSE BOARD MNT 6.3A 300VAC RAD |
16 |
|
Datasheet |
TE5® 369 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 6.3 A | 300 V | - | Slow Blow | 50A | 126.0 | cULus | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
