Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0695025.PXPSFUSE BRD MNT 25A 32VDC AUTO LINK |
2,854 |
|
Datasheet |
MCASE™ 695 | Bulk | Active | Requires Holder | Board Mount (Cartridge Style Excluded) | 25 A | - | 32 V | Slow Blow | 1kA | 1370.0 | - | -40°C ~ 125°C | Light Pink | 0.421" L x 0.244" W x 0.689" H (10.70mm x 6.20mm x 17.50mm) | |
|
0465001.DRFUSE BOARD MOUNT 1A 250VAC 2SMD |
17 |
|
Datasheet |
NANO²® 465 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Slow Blow | 100A | 2.8 | PSE, UMF | -55°C ~ 125°C | - | 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm) | |
|
0449.750MRFUSE BRD MT 750MA 125VAC/VDC SMD |
4 |
|
Datasheet |
NANO²® 449 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Slow Blow | 50A | 0.847 | cULus | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0324012.MXPFUSE CERM 12A 250VAC 125VDC 3AB |
2,093 |
|
Datasheet |
324 | Bulk | Active | Through Hole | Cartridge, Ceramic | 12 A | 250 V | 125 V | Fast Blow | 750A AC, 10kA DC | 570.0 | CE, CSA, K-MARK, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
BK/MDA-4-RFUSE CERAMIC 4A 250VAC 3AB 3AG |
3 |
|
Datasheet |
MDA | Bulk | Active | Requires Holder | Cartridge, Ceramic | 4 A | 250 V | - | Slow Blow | 200A | 37.2 | CE, CSA, UL | - | Black | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0326.250HXPFUSE CERM 250MA 250VAC 125VDC |
18 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 250 mA | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 0.432 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0326007.MXPFUSE CERAMIC 7A 250VAC 3AB 3AG |
7,901 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 7 A | 250 V | - | Slow Blow | 400A | 47.3 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0326012.MXPFUSE CERM 12A 250VAC 60VDC 3AB |
7,229 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 12 A | 250 V | 60 V | Slow Blow | 400A AC, 500A DC | 129.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0326025.MXPFUSE CERM 25A 250VAC 125VDC 3AB |
2,443 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 25 A | 250 V | 125 V | Slow Blow | 400A AC, 600A DC | 1030.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0326030.MXPFUSE CERM 30A 250VAC 125VDC 3AB |
4,528 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 30 A | 250 V | 125 V | Slow Blow | 400A AC, 600A DC | 1690.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0473.500MRT1LFUSE BRD MT 500MA 125VAC/VDC AXL |
5,312 |
|
Datasheet |
PICO® II 473 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Slow Blow | 50A | 0.21 | CSA, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) | |
|
0224001.HXPFUSE GLASS 1A 250VAC 125VDC 2AG |
8 |
|
Datasheet |
224 | Bulk | Active | Through Hole | Cartridge, Glass | 1 A | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 2.22 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
0217.063MXPFUSE GLASS 63MA 250VAC 5X20MM |
2,977 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 63 mA | 250 V | - | Fast Blow | 35A | 5.6E-4 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0453012.MRFUSE BRD MNT 12A 65VAC 65VDC SMD |
13 |
|
- |
NANO²® 453 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | 65 V | 65 V | Fast Blow | 50A | 47.97 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0ADKP9100-REFUSE CERM 10A 600VAC 500VDC 5X20 |
4,947 |
|
Datasheet |
0ADKP | Bulk | Active | Through Hole | Cartridge, Ceramic | 10 A | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 400.0 | cURus | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
0312.150HXPFUSE GLASS 150MA 250VAC 3AB 3AG |
13 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 150 mA | 250 V | - | Fast Blow | 35A | 0.0055 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
047303.5MRT1LFUSE BRD MNT 3.5A 125VAC/VDC AXL |
4 |
|
Datasheet |
PICO® II 473 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.5 A | 125 V | 125 V | Slow Blow | 50A | 26.8 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) | |
|

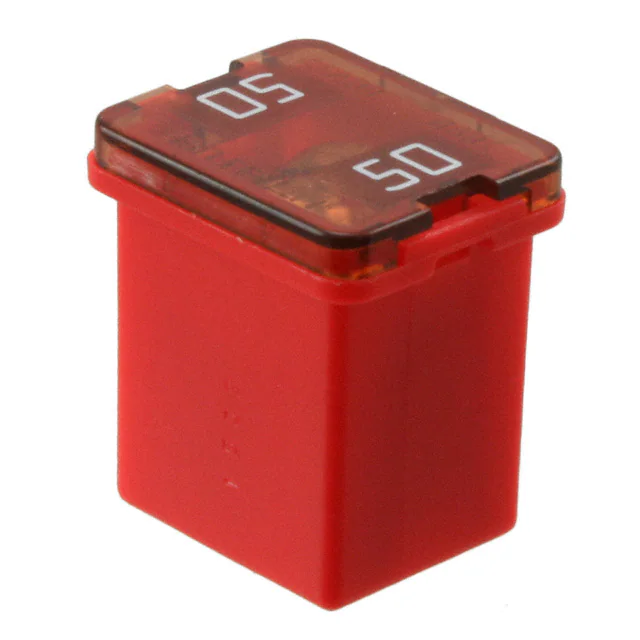

0895050.ZFUSE AUTO 50A 58VDC AUTO LINK |
5,807 |
|
Datasheet |
JCASE® | Bulk | Active | Requires Holder | Automotive | 50 A | - | 58 V | - | 1kA | 4880.0 | UL | -40°C ~ 125°C | Red | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
|
0224.500MXPFUSE GLASS 500MA 250VAC 125VDC |
4,193 |
|
Datasheet |
224 | Bulk | Active | Through Hole | Cartridge, Glass | 500 mA | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 0.365 | CE, CSA, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
AGC-2-RFUSE GLASS 2A 250VAC 3AB 3AG |
9,543 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Fast Blow | 100A | 17.52 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
