Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BK-AMH-500FUSE AUTO 500A 125VDC AUTO LINK |
15 |
|
Datasheet |
AMH | Tray | Active | Bolt Mount | Automotive | 500 A | - | 125 V | - | 20kA | - | cURus, UL | -40°C ~ 105°C | - | 0.787" L x 0.787" W x 0.472" H (20.00mm x 20.00mm x 12.00mm) | |
|

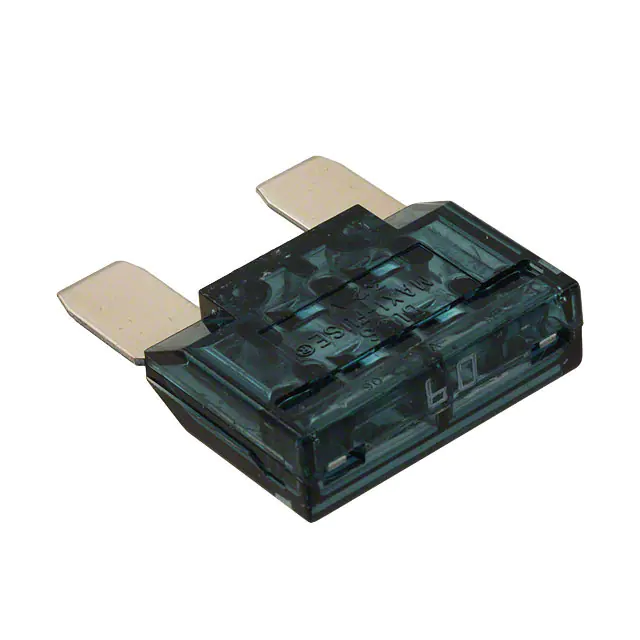

MAX-60FUSE AUTO 60A 32VDC BLADE MAX |
81 |
|
Datasheet |
MAX | Bulk | Active | Requires Holder | Automotive | 60 A | - | 32 V | Fast Blow | 1kA | - | - | - | Blue | 1.150" L x 0.350" W x 0.850" H (29.21mm x 8.89mm x 21.59mm) | |
|
3298060.HFUSE BRD MNT 60A 32VDC MOD 100PC |
88 |
|
Datasheet |
ZCASE® SMZ | Box | Active | Bolt Mount | Board Mount (Cartridge Style Excluded) | 60 A | - | 32 V | - | 2kA | 18000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
|
3298150.HFUSE BRD MT 150A 32VDC MOD 100PC |
63 |
|
Datasheet |
ZCASE® SMZ | Box | Active | Bolt Mount | Board Mount (Cartridge Style Excluded) | 150 A | - | 32 V | - | 2kA | 75000.0 | - | -40°C ~ 125°C | - | - | |
|
BK/GBB-10-RFUSE CERM 10A 250VAC 125VDC 3AB |
6 |
|
Datasheet |
GBB | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | 125 V | Fast Blow | 10kA | - | CSA, UR | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
.jpg)
|
ZCAS100.XPFUSE BRD MT 100A 32VDC 1-PC CA |
7 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Board Mount (Cartridge Style Excluded) | 100 A | - | 32 V | - | 2kA | - | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
142.5395.6122FUSE AUTO 125A 58VDC AUTO LINK |
8 |
|
Datasheet |
BF2 | Bulk | Active | Bolt Mount | Automotive | 125 A | - | 58 V | Slow Blow | 1kA | 118100.0 | cURus | - | Green | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
AMI-50FUSE AUTO 50A 32VDC AUTO LINK |
16 |
|
Datasheet |
AMI | Bulk | Active | Bolt Mount | Automotive | 50 A | - | 32 V | - | 2kA | - | - | - | Red | 0.630" L x 0.472" W x 0.236" H (16.00mm x 12.00mm x 6.00mm) | |
|
|
BK/GBB-30-RFUSE CERM 30A 250VAC 125VDC 3AB |
85 |
|
Datasheet |
GBB | Bulk | Active | Requires Holder | Cartridge, Ceramic | 30 A | 250 V | 125 V | Fast Blow | 10kA | - | CSA, UR | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
BK/SC-15FUSE CERAMIC 15A 600VAC 170VDC |
97 |
|
Datasheet |
SC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 600 V | 170 V | Slow Blow | 100kA AC, 10kA DC | - | CE, CSA, UL | - | - | 0.410" Dia x 1.310" L (10.41mm x 33.27mm) | |
|
AMG-250FUSE AUTO 250A 32VDC AUTO LINK |
9 |
|
Datasheet |
AMG | Bulk | Active | Bolt Mount | Automotive | 250 A | - | 32 V | - | 1kA | - | - | - | - | 1.150" L x 0.606" W x 0.354" H (29.20mm x 15.40mm x 9.00mm) | |
|
|
SC-10FUSE CERAMIC 10A 600VAC 170VDC |
10 |
|
Datasheet |
SC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 600 V | 170 V | Slow Blow | 100kA AC, 10kA DC | - | CE, CSA, UL | - | - | 0.410" Dia x 1.310" L (10.41mm x 33.27mm) | |
|
0273.015VFUSE BRD MT 15MA 125VAC/VDC RAD |
60 |
|
Datasheet |
MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 15 mA | 125 V | 125 V | Fast Blow | 10kA | 1.23E-6 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
0279.010VFUSE BRD MT 10MA 125VAC/VDC RAD |
10 |
|
Datasheet |
MICRO™ 279 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 10 mA | 125 V | 125 V | Fast Blow | 10kA | 4.62E-7 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
0230004.HXPFUSE GLASS 4A 125VAC/VDC AXIAL |
34 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 4 A | 125 V | 125 V | Slow Blow | 400A | 148.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
.jpg)
|
MFU0603FF01750P100FUSE BOARD MNT 1.75A 32VDC 0603 |
1,662 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.75 A | - | 32 V | Fast Blow | 50A | 0.0077 | UL | -55°C ~ 125°C | - | 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm) | |
|
|
MFU0603FF05000P1ATFUSE BOARD MOUNT 5A 32VDC 0603 |
1,724 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 32 V | Fast Blow | 50A | 0.2275 | CSA, cURus, UL | -55°C ~ 125°C | - | 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm) | |
|
|
MFU0603FF02000P1ATFUSE BOARD MOUNT 2A 50VDC 0603 |
1,690 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | - | 50 V | Fast Blow | 50A | 0.0101 | CSA, cURus, UL | -55°C ~ 125°C | - | 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm) | |
|
|
MFU0603FF02500P1ATFUSE BOARD MOUNT 2.5A 50VDC 0603 |
1,594 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | - | 50 V | Fast Blow | 50A | 0.0157 | CSA, cURus, UL | -55°C ~ 125°C | - | 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm) | |
|
5HT 630-RFUSE CERAMIC 630MA 250VAC 5X20MM |
852 |
|
Datasheet |
5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 630 mA | 250 V | - | Slow Blow | 1.5kA | 0.7 | CCC, CE, CSA, cULus | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
