Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
153.5395.6202FUSE AUTO 200A 32VDC AUTO LINK |
86 |
|
Datasheet |
BF2 | Bulk | Active | Bolt Mount | Automotive | 200 A | - | 32 V | Slow Blow | 2kA | 288000.0 | - | - | Blue | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
BK/ABC-V-15-RFUSE CERM 15A 250VAC 125VDC 3AB |
55 |
|
Datasheet |
ABC | Bulk | Active | Through Hole | Cartridge, Ceramic | 15 A | 250 V | 125 V | Fast Blow | 750A AC, 10kA DC | 200.2 | CSA, UL | - | - | 0.266" Dia x 1.292" L (6.76mm x 32.82mm) | |
|
JCAS040.XFUSE AUTO 40A 32VAC 32VDC |
45 |
|
Datasheet |
JCASE® | Bulk | Active | Requires Holder | Automotive | 40 A | 32 V | 32 V | Slow Blow | - | - | - | - | Green | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
BK/AGC-2/10-RFUSE GLASS 200MA 250VAC 3AB 3AG |
70 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 200 mA | 250 V | - | Fast Blow | 35A | 0.008 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0273.125HFUSE BOARD MNT 125MA 125VAC/VDC |
94 |
|
Datasheet |
MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 125 mA | 125 V | 125 V | Fast Blow | 10kA | 9.61E-4 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
153.5395.6252FUSE AUTO 250A 32VDC AUTO LINK |
88 |
|
Datasheet |
BF2 | Bulk | Active | Bolt Mount | Automotive | 250 A | - | 32 V | Slow Blow | 2kA | 292500.0 | - | - | Pink | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
BK-AMX-350FUSE AUTO 350A 125VDC AUTO LINK |
40 |
|
Datasheet |
AMX | Tray | Active | Bolt Mount | Automotive | 350 A | - | 125 V | - | 3kA | - | cURus, UL | -40°C ~ 105°C | - | 0.630" L x 0.472" W x 0.335" H (16.00mm x 12.00mm x 8.50mm) | |
|
BK/S506-12.5-RFUSE GLASS 12.5A 250VAC 5X20MM |
93 |
|
Datasheet |
S506 | Bulk | Active | Requires Holder | Cartridge, Glass | 12.5 A | 250 V | - | Slow Blow | 125A | 1019.5 | cULus, PSE/JET | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0251005.VXLFUSE BRD MNT 5A 125VAC/VDC AXIAL |
35 |
|
Datasheet |
PICO® II 251 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 4.14 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|
0MEG100.LFUSE AUTO 100A 32VAC/VDC 50PK |
29 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 100 A | 32 V | 32 V | Slow Blow | - | - | - | - | Yellow | 1.149" L x 0.770" W x 0.390" H (29.20mm x 19.50mm x 9.90mm) | |
|
PCB-2-1/2-RFUSE BRD MNT 2.5A 250VAC 450VDC |
2 |
|
Datasheet |
PC-Tron® | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.3 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
0606040.UXTHPFUSE CARTRIDGE 40A 500VAC |
86 |
|
Datasheet |
606 | Tray | Active | Through Hole | Cartridge | 40 A | 500 V | - | - | 2kA | 2500.0 | cURus | -55°C ~ 125°C | - | 0.482" Dia x 1.315" L (12.25mm x 33.40mm) | |
|
BK-S505H-V-1-RFUSE CERM 1A 600VAC 400VDC 5X20 |
39 |
|
Datasheet |
S505H | Bulk | Active | Through Hole | Cartridge, Ceramic | 1 A | 600 V | 400 V | Slow Blow | 1.5kA | 1.28 | cULus, PSE/JET | -40°C ~ 85°C | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
BK/MDL-2/10-RFUSE GLASS 200MA 250VAC 3AB 3AG |
93 |
|
Datasheet |
MDL | Bulk | Active | Requires Holder | Cartridge, Glass | 200 mA | 250 V | - | Slow Blow | 35A | 0.314 | CE, CSA, UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
153.5395.6101FUSE AUTO 100A 32VDC AUTO LINK |
10 |
|
Datasheet |
BF2 | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 32 V | Slow Blow | 2kA | 46800.0 | - | - | Yellow | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
0272.250HFUSE BOARD MNT 250MA 125VAC/VDC |
75 |
|
Datasheet |
MICRO™ 272 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 10kA | 0.0064 | CSA, QPL, UL | -55°C ~ 125°C | - | 0.235" Dia x 0.287" H (5.97mm x 7.30mm) | |
|
|
0272.100HFUSE BOARD MNT 100MA 125VAC/VDC |
53 |
|
Datasheet |
MICRO™ 272 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 100 mA | 125 V | 125 V | Fast Blow | 10kA | 3.85E-4 | CSA, QPL, UL | -55°C ~ 125°C | - | 0.235" Dia x 0.287" H (5.97mm x 7.30mm) | |
|

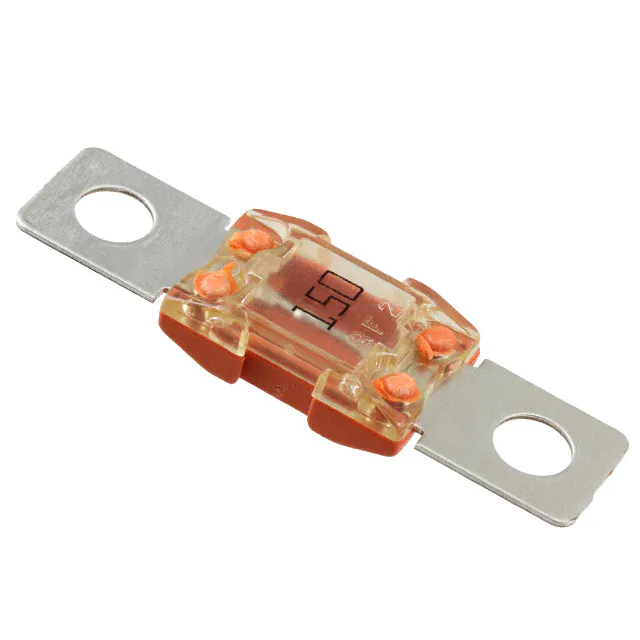

153.5395.6151FUSE AUTO 150A 32VDC AUTO LINK |
35 |
|
Datasheet |
BF2 | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 32 V | Slow Blow | 2kA | 113400.0 | - | - | Orange | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
|
0272001.HFUSE BRD MNT 1A 125VAC/VDC RAD |
90 |
|
Datasheet |
MICRO™ 272 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 10kA | 0.0648 | CSA, QPL, UL | -55°C ~ 125°C | - | 0.235" Dia x 0.287" H (5.97mm x 7.30mm) | |
|
|
0272003.HFUSE BRD MNT 3A 125VAC/VDC RAD |
80 |
|
Datasheet |
MICRO™ 272 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 125 V | Fast Blow | 10kA | 0.759 | CSA, QPL, UL | -55°C ~ 125°C | - | 0.235" Dia x 0.287" H (5.97mm x 7.30mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
