Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0891030.UFUSE AUTO 30A 58VDC BLADE MINI |
465 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 30 A | - | 58 V | Fast Blow | 1kA | 1110.0 | - | -40°C ~ 125°C | Green | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
BK/AGX-6FUSE GLASS 6A 250VAC 8AG |
334 |
|
Datasheet |
AGX | Bulk | Active | Requires Holder | Cartridge, Glass | 6 A | 250 V | - | Fast Blow | 200A | - | cULus | - | - | 0.250" Dia x 1.042" L (6.35mm x 26.47mm) | |
.jpg)
|
MFU0805FF00800P100FUSE BOARD MNT 800MA 32VDC 0805 |
1,839 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 800 mA | - | 32 V | Fast Blow | 50A | 0.0023 | UL | -55°C ~ 125°C | - | 0.079" L x 0.049" W x 0.018" H (2.00mm x 1.25mm x 0.45mm) | |
|
BK1/GMA-7-RFUSE GLASS 7A 125VAC 5X20MM |
930 |
|
Datasheet |
GMA | Bulk | Active | Requires Holder | Cartridge, Glass | 7 A | 125 V | - | Fast Blow | 200A | 150.0 | CSA, PSE, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0225.750MXPFUSE GLASS 750MA 250VAC 125VDC |
479 |
|
Datasheet |
225 | Bulk | Active | Requires Holder | Cartridge, Glass | 750 mA | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 1.05 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
3404.0122.11FUSE BRD MNT 6.3A 125VAC/VDC SMD |
387 |
|
Datasheet |
OMT 125 | - | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 6.3 A | 125 V | 125 V | Slow Blow | 100A | 25.4 | cULus | -40°C ~ 85°C | - | 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm) | |
|
SS-5H-6.3A-APFUSE BOARD MNT 6.3A 250VAC RAD |
311 |
|
Datasheet |
SS-5H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 6.3 A | 250 V | - | Slow Blow | 100A | 176.0 | CQC, cURus, KC, PSE, TUV, VDE | -40°C ~ 125°C | - | 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) | |
|
0891015.UFUSE AUTO 15A 58VDC BLADE MINI |
261 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 58 V | Fast Blow | 10kA | 198.0 | - | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
02291.25HXPFUSE GLASS 1.25A 250VAC 125VDC |
93 |
|
Datasheet |
229 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 9.8 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0034.6703FUSE BRD MNT 63MA 250VAC 125VDC |
993 |
|
Datasheet |
MST 250 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 63 mA | 250 V | 125 V | Slow Blow | 35A AC, 50A DC | 0.05 | CCC, cURus, KC, VDE | -55°C ~ 125°C | - | 0.335" Dia x 0.335" H (8.50mm x 8.50mm) | |
|
0680L0500-01FUSE BRD MT 500MA 125VAC/VDC SMD |
681 |
|
Datasheet |
0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Slow Blow | 50A AC, 100A DC | 0.27 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|
SS-5H-1.25A-APHFUSE BRD MNT 1.25A 300VAC RADIAL |
657 |
|
Datasheet |
SS-5H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.25 A | 300 V | - | Slow Blow | 100A | 12.75 | CQC, cURus, KC, PSE, TUV, VDE | -40°C ~ 125°C | - | 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) | |
|
0891020.UFUSE AUTO 20A 58VDC BLADE MINI |
472 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 58 V | Fast Blow | 1kA | 420.0 | - | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
BK/AGA-7-1/2FUSE GLASS 7.5A 125VAC 1AG |
339 |
|
Datasheet |
AGA | Bulk | Active | Requires Holder | Cartridge, Glass | 7.5 A | 125 V | - | Fast Blow | 1kA | - | UR | - | - | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | |
|

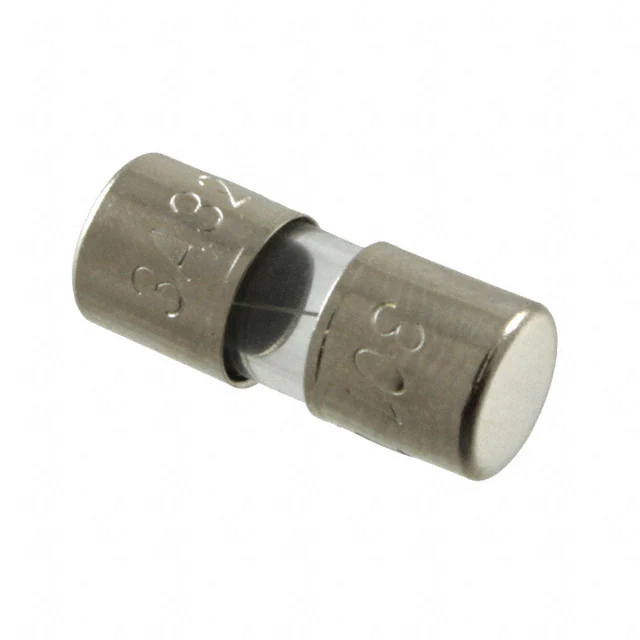

0AGA02.5VFUSE GLASS 2.5A 32VAC/VDC 1AG |
67 |
|
Datasheet |
AGA | Bulk | Active | Requires Holder | Cartridge, Glass | 2.5 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | |
|
02163.15MXESPPFUSE CERAMIC 3.15A 250VAC 5X20MM |
728 |
|
Datasheet |
216SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 3.15 A | 250 V | - | Fast Blow | 1.5kA | 6.7 | CE, CSA, CQC, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
8020.5069FUSE CERM 1.25A 500VAC 3AB 3AG |
577 |
|
Datasheet |
SHF 6.3x32 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1.25 A | 500 V | - | Fast Blow | 1.5kA | 2.9 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
0034.3106FUSE GLASS 80MA 250VAC 5X20MM |
373 |
|
Datasheet |
FST 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 80 mA | 250 V | - | Slow Blow | 35A | 0.057 | CCC, cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0SFE030.VFUSE GLASS 30A 32VAC 32VDC |
331 |
|
Datasheet |
SFE | Bulk | Active | Requires Holder | Cartridge, Glass | 30 A | 32 V | 32 V | Fast Blow | - | - | - | - | - | 0.250" Dia x 1.437" L (6.35mm x 36.50mm) | |
|
|
0225007.MXUPFUSE GLASS 7A 125VAC 2AG |
104 |
|
Datasheet |
225 | Bulk | Active | Requires Holder | Cartridge, Glass | 7 A | 125 V | - | Fast Blow | 500A | 40.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
