Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS-5H-2.5A-APHFUSE BOARD MNT 2.5A 300VAC RAD |
434 |
|
Datasheet |
SS-5H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 300 V | - | Slow Blow | 100A | 40.3 | CQC, cURus, KC, PSE, TUV, VDE | -40°C ~ 125°C | - | 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) | |
|
0311010.HFUSE GLASS 10A 32VAC 3AB 3AG |
167 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 32 V | - | Fast Blow | - | - | CSA, UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
SF-1206SP500-2FUSE BOARD MOUNT 5A 32VDC 1206 |
444 |
|
Datasheet |
SinglFuse™ SF-1206SP | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 32 V | Slow Blow | 50A | 5.51 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | |
|
37005000000FUSE BRD MNT 500MA 250VAC RADIAL |
136 |
|
Datasheet |
TR5® 370 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | - | Fast Blow | 35A | 0.042 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0287004.LFUSE AUTO 4A 32VDC BLADE ATO/ATC |
70 |
|
Datasheet |
ATOF® | Box | Active | Requires Holder | Automotive | 4 A | - | 32 V | - | 1kA | 14.0 | UL | -40°C ~ 105°C | Pink | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
3413.0116.22FUSE BOARD MNT 1.25A 32VAC 63VDC |
1,283 |
|
Datasheet |
USF 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | 32 V | 63 V | Fast Blow | 50A | 0.12 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm) | |
|
3414.0112.26FUSE BOARD MNT 375MA 32VDC 0402 |
637 |
|
Datasheet |
USF 0402 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | - | 32 V | Fast Blow | 35A | 0.003 | cURus | -55°C ~ 125°C | - | 0.040" L x 0.020" W x 0.019" H (1.00mm x 0.50mm x 0.48mm) | |
|
0287025.LFUSE AUTO 25A 32VDC BLADE ATO |
67 |
|
Datasheet |
ATOF® | Box | Active | Requires Holder | Automotive | 25 A | - | 32 V | - | - | 1080.0 | CSA, UL | -40°C ~ 105°C | Clear | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
3412.0113.11FUSE BRD MT 500MA 63VAC/VDC 0603 |
877 |
|
Datasheet |
USF 0603 | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 63 V | 63 V | Fast Blow | 50A | 0.02 | cURus | -55°C ~ 90°C | - | 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm) | |
|
3405.0171.11FUSE BRD MNT 3.15A 250VAC 125VDC |
599 |
|
Datasheet |
UMF 250 | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3.15 A | 250 V | 125 V | Fast Blow | 100A | 5.17 | cURus, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
3412.0121.11FUSE BRD MNT 3A 32VAC 32VDC 0603 |
540 |
|
Datasheet |
USF 0603 | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 32 V | 32 V | Fast Blow | 50A | 0.58 | cURus | -55°C ~ 90°C | - | 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm) | |
|
|
3405.0169.11FUSE BRD MT 2A 250VAC 125VDC SMD |
531 |
|
Datasheet |
UMF 250 | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 125 V | Fast Blow | 100A | 3.26 | cURus, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
3412.0124.11FUSE BRD MNT 5A 32VAC 32VDC 0603 |
480 |
|
Datasheet |
USF 0603 | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 32 V | 32 V | Fast Blow | 50A | 1.5 | cURus | -55°C ~ 90°C | - | 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm) | |
|

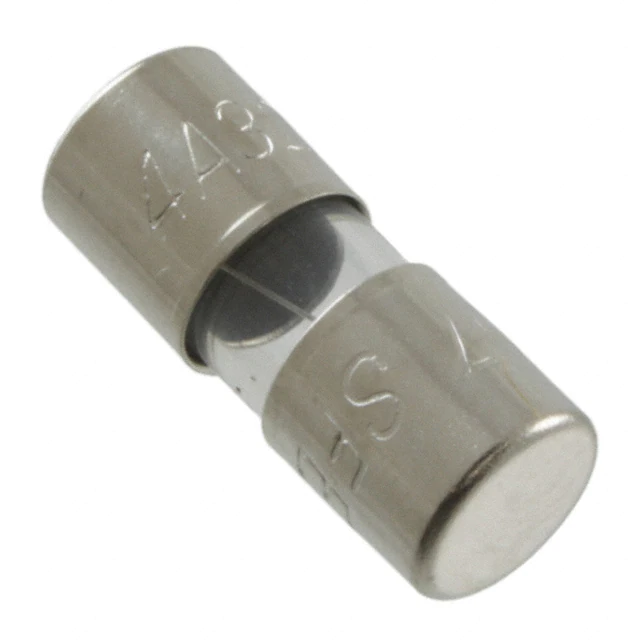

0SFE004.VFUSE GLASS 4A 32VAC/VDC 1AG |
163 |
|
Datasheet |
SFE | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 32 V | 32 V | Fast Blow | - | - | - | - | - | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | |
|
BK/GMA-1.25-RFUSE GLASS 1.25A 250VAC 5X20MM |
199 |
|
Datasheet |
GMA | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | - | Fast Blow | 100A | 0.84 | CSA, PSE, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0001.1013FUSE CERAMIC 8A 250VAC 5X20MM |
93 |
|
Datasheet |
SP 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 8 A | 250 V | - | Fast Blow | 1.5kA | 81.9 | cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
BK/AGA-10FUSE GLASS 10A 125VAC 1AG |
871 |
|
Datasheet |
AGA | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 125 V | - | Fast Blow | 1kA | - | - | - | - | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | |
|
SF-0603HI075F-2FUSE BRDMT 750MA 35VAC/65DC 0603 |
860 |
|
Datasheet |
SinglFuse™ SF-0603HIxxxF | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 35 V | 65 V | - | 50A AC, 13A DC | 0.036 | UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.014" H (1.60mm x 0.80mm x 0.36mm) | |
|
SF-0603S250M-2FUSE BOARD MOUNT 2.5A 32VDC 0603 |
599 |
|
Datasheet |
SinglFuse™ SF-0603SxxxM | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | - | 32 V | Slow Blow | 35A | 0.1 | - | -55°C ~ 125°C | - | 0.063" L x 0.031" W x 0.037" H (1.60mm x 0.80mm x 0.95mm) | |
|
0891010.UFUSE AUTO 10A 58VDC BLADE MINI |
544 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 58 V | Fast Blow | 1kA | 102.0 | - | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) |
