Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0618.500MXPFUSE GLASS 500MA 250VAC 5X20MM |
900 |
|
Datasheet |
618 | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Slow Blow | 35A | 2.825 | CCC, CE, CSA, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0297005.WXTFUSE AUTOMOTIVE 5A 32VDC BLADE |
806 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 25.0 | UR | -40°C ~ 125°C | Orange | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297015.WXTFUSE AUTO 15A 32VDC BLADE MINI |
653 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 270.0 | UR | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297030.WXTFUSE AUTO 30A 32VDC BLADE MINI |
449 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | 1130.0 | UR | -40°C ~ 125°C | Green | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0618010.MXPFUSE GLASS 10A 250VAC 5X20MM |
176 |
|
Datasheet |
618 | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 250 V | - | Slow Blow | 100A | 568.0 | CE, CSA, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0618001.MXPFUSE GLASS 1A 250VAC 5X20MM |
844 |
|
Datasheet |
618 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Slow Blow | 35A | 6.73 | CCC, CE, CSA, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0618.630MXPFUSE GLASS 630MA 250VAC 5X20MM |
935 |
|
Datasheet |
618 | Bulk | Active | Requires Holder | Cartridge, Glass | 630 mA | 250 V | - | Slow Blow | 35A | 4.675 | CCC, CE, CSA, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
031201.6MXPFUSE GLASS 1.6A 250VAC 3AB 3AG |
620 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.6 A | 250 V | - | Fast Blow | 100A | 2.8 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0327005.YX2SFUSE AUTO 5A 32VDC BLADE MICRO |
491 |
|
Datasheet |
MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | - | - | 17.0 | - | -40°C ~ 125°C | Tan | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
029707.5UFUSE AUTO 7.5A 32VDC BLADE MINI |
348 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | Fast Blow | 1kA | 68.0 | UR | -40°C ~ 125°C | Brown | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0034.6017FUSE BOARD MNT 2A 250VAC RADIAL |
892 |
|
Datasheet |
MSF 250 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | - | Fast Blow | 35A | 1.3 | CCC, cURus, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.335" H (8.50mm x 8.50mm) | |
|
0287001.UFUSE AUTO 1A 32VDC BLADE ATO/ATC |
878 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 1 A | - | 32 V | - | 1kA | 0.4 | - | -40°C ~ 105°C | Black | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|

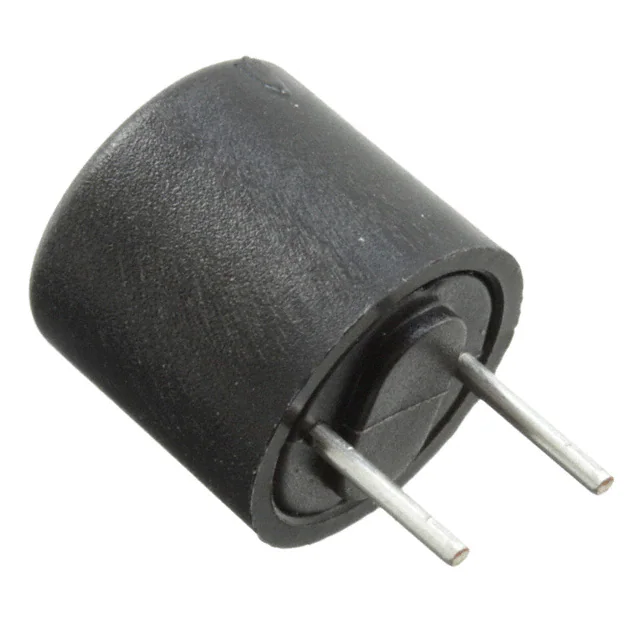

0034.6011FUSE BRD MNT 500MA 250VAC RADIAL |
610 |
|
Datasheet |
MSF 250 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | - | Fast Blow | 35A | 0.09 | CCC, cURus, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.335" H (8.50mm x 8.50mm) | |
|
0287025.UFUSE AUTO 25A 32VDC BLADE ATO |
373 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 25 A | - | 32 V | - | 1kA | 1080.0 | - | -40°C ~ 105°C | White | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
028707.5UFUSE AUTO 7.5A 32VDC BLADE ATO |
162 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | - | 1kA | 60.0 | - | -40°C ~ 105°C | Brown | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0217008.MXPFUSE GLASS 8A 250VAC 5X20MM |
842 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 8 A | 250 V | - | Fast Blow | 80A | 198.16 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0287025.PXCNFUSE AUTO 25A 32VDC BLADE ATO |
706 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 25 A | - | 32 V | - | - | 1080.0 | CSA, UL | -40°C ~ 105°C | Clear | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0034.1515FUSE GLASS 800MA 250VAC 5X20MM |
687 |
|
Datasheet |
FSF 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 800 mA | 250 V | - | Fast Blow | 35A | 0.508 | CCC, cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
021702.5MXPFUSE GLASS 2.5A 250VAC 5X20MM |
456 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 2.5 A | 250 V | - | Fast Blow | 35A | 9.46 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
3AG 1.5-RFUSE GLASS 1.5A 250VAC 3AB 3AG |
427 |
|
Datasheet |
3AG | Bulk | Active | Requires Holder | Cartridge, Glass | 1.5 A | 250 V | - | Fast Blow | 200A | - | CE, CSA, cULus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) |
