Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0235003.HXPFUSE GLASS 3A 250VAC 5X20MM |
487 |
|
Datasheet |
235 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Fast Blow | 100A | 8.395 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
SF-1206F500-2FUSE BOARD MOUNT 5A 32VDC 1206 |
878 |
|
Datasheet |
SinglFuse™ SF-1206F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 32 V | Fast Blow | 50A | 0.966 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | |
|
SF-2410SP200W-2FUSE BRD MT 2A 250VAC/125DC 2410 |
863 |
|
Datasheet |
SinglFuse™ SF-2410SPxxxW | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 125 V | Slow Blow | 100A AC, 50A DC | 3.0 | UL | -55°C ~ 125°C | - | 0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm) | |
|
8020.5014FUSE CERAMIC 2A 500VAC |
606 |
|
Datasheet |
SHT 6.3X32 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | 500 V | - | Slow Blow | 1.5kA | 10.5 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
38312000000FUSE BOARD MNT 2A 300VAC RADIAL |
1,011 |
|
Datasheet |
TR5® 383 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 300 V | - | Slow Blow | 100A | 12.0 | cURus, PSE | -65°C ~ 125°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0467.500NRFUSE BRD MT 500MA 32VAC 32VDC |
87 |
|
Datasheet |
467 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 32 V | 32 V | Fast Blow | 50A | 0.0087 | CSA, UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm) | |
|
0157002.DRTFUSE BRD MNT 2A 125VAC/VDC 2SMD |
93 |
|
Datasheet |
NANO²® 157T | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Slow Blow | 50A | 8.2 | cULus, PSE | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
|
1025HC50-RTRFUSE BOARD MOUNT 50A 60VAC 2SMD |
92 |
|
Datasheet |
1025HC | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 A | 60 V | - | Fast Blow | 600A | 600.0 | cURus | -55°C ~ 125°C | - | 0.177" Dia x 0.488" L (4.50mm x 12.40mm) | |
|

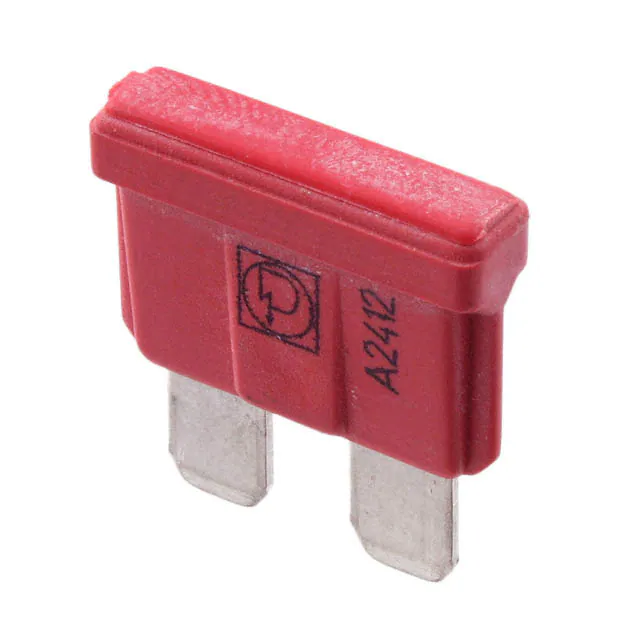

166.7000.5102FUSE AUTO 10A 80VDC BLADE ATO |
46 |
|
Datasheet |
FKS ATO® | Bulk | Active | Requires Holder | Automotive | 10 A | - | 80 V | Fast Blow | 1kA | 86.4 | cULus | - | Red | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|

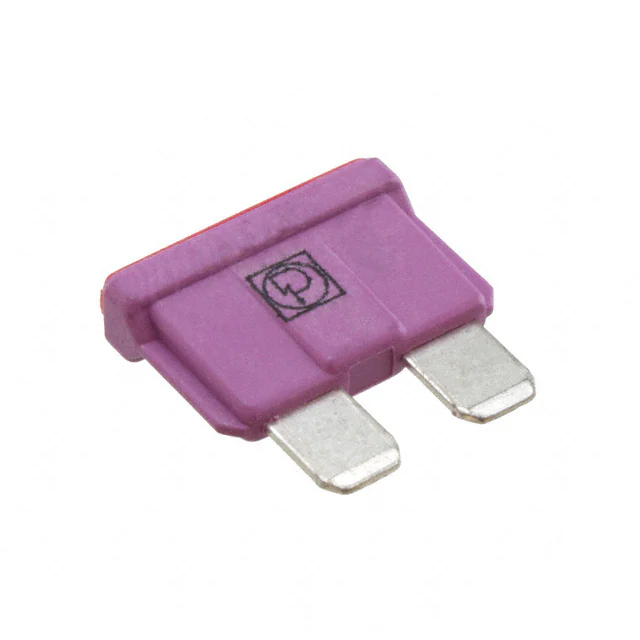

166.7000.4302FUSE AUTO 3A 80VDC BLADE ATO/ATC |
31 |
|
Datasheet |
FKS ATO® | Bulk | Active | Requires Holder | Automotive | 3 A | - | 80 V | Slow Blow | 1kA | 8.1 | cULus | - | Violet | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
0508001.MXPFUSE CERM 1A 1KVAC 1000VDC 3AB |
80 |
|
Datasheet |
508 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1 A | 1 kV | 1000 V | Fast Blow | 10kA | 0.449 | CE, cULus | -55°C ~ 125°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
0617004.MXPFUSE GLASS 4A 250VAC 5X20MM |
861 |
|
Datasheet |
617 | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 250 V | - | Fast Blow | 40A | 29.165 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
06173.15MXPFUSE GLASS 3.15A 250VAC 5X20MM |
820 |
|
Datasheet |
617 | Bulk | Active | Requires Holder | Cartridge, Glass | 3.15 A | 250 V | - | Fast Blow | 35A | 17.71 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
061702.5MXPFUSE GLASS 2.5A 250VAC 5X20MM |
211 |
|
Datasheet |
617 | Bulk | Active | Requires Holder | Cartridge, Glass | 2.5 A | 250 V | - | Fast Blow | 35A | 9.46 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0617.400MXPFUSE GLASS 400MA 250VAC 5X20MM |
121 |
|
Datasheet |
617 | Bulk | Active | Requires Holder | Cartridge, Glass | 400 mA | 250 V | - | Fast Blow | 35A | 0.125 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0617008.MXPFUSE GLASS 8A 250VAC 5X20MM |
865 |
|
Datasheet |
617 | Bulk | Active | Requires Holder | Cartridge, Glass | 8 A | 250 V | - | Fast Blow | 80A | 198.16 | CE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0617010.MXPFUSE GLASS 10A 250VAC 5X20MM |
781 |
|
Datasheet |
617 | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 250 V | - | Fast Blow | 100A | 217.635 | CE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0617005.MXPFUSE GLASS 5A 250VAC 5X20MM |
306 |
|
Datasheet |
617 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Fast Blow | 50A | 42.795 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
3.2mmX1.60mmX.70mm.jpg)
|
SBF32102ASTPFUSE CHIP 1A 63VDC 1206 |
720 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Surface Mount | - | 1 A | - | 63 V | - | 50A | - | CSA, UL | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.026" H (3.20mm x 1.60mm x 0.65mm) | |
|
061801.6MXPFUSE GLASS 1.6A 250VAC 5X20MM |
669 |
|
Datasheet |
618 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.6 A | 250 V | - | Slow Blow | 35A | 23.35 | CCC, CE, CSA, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
