Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0154.062DRLFUSE BRD MNT 62MA 125VAC/VDC SMD |
248 |
|
Datasheet |
OMNI-BLOK® 154L | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A | 1.9E-4 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
80815000000FUSE BRD MT 5A 250VAC 250VDC RAD |
1,971 |
|
Datasheet |
TE5® 808 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | 250 V | Fast Blow | 100A AC, 10kA DC | 1.1584 | cULus | -40°C ~ 125°C | - | 0.350" L x 0.183" W x 0.350" H (8.90mm x 4.65mm x 8.90mm) | |
|
BK1/TDC11-250-RFUSE GLASS 250MA 1KVAC 3AB 3AG |
947 |
|
Datasheet |
TDC11 | Bulk | Active | Requires Holder | Cartridge, Glass | 250 mA | 1 kV | - | Slow Blow | 2.5A | - | - | - | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
BK/S505-4-RFUSE CERAMIC 4A 250VAC 5X20MM |
621 |
|
Datasheet |
S505 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 4 A | 250 V | - | Slow Blow | 1.5kA | 38.45 | BSI, CCC/CQC, CSA, cULus, IMQ, KC, PSE/JET, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
SF-2923HC40C-2FUSE BOARD MOUNT 40A 60VDC 2SMD |
434 |
|
Datasheet |
SinglFuse™ SF-2923HC-C | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 40 A | - | 60 V | Fast Blow | 300A | 416.0 | UL | -55°C ~ 125°C | - | 0.287" L x 0.228" W x 0.157" H (7.30mm x 5.80mm x 4.00mm) | |
|
0ADBC0315-BEFUSE CERM 315MA 1KVAC 1KVDC 3AB |
748 |
|
Datasheet |
0ADBC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 315 mA | 1 kV | 1 kV | Fast Blow | 10kA | 0.05 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
0ADBC1250-BEFUSE CERM 1.25A 1KVAC 1KVDC 3AB |
746 |
|
Datasheet |
0ADBC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1.25 A | 1 kV | 1 kV | Fast Blow | 10kA | 3.0 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
BK/MDL-3/10-RFUSE GLASS 300MA 250VAC 3AB 3AG |
285 |
|
Datasheet |
MDL | Bulk | Active | Requires Holder | Cartridge, Glass | 300 mA | 250 V | - | Slow Blow | 35A | 0.412 | CE, CSA, UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0ADBC1600-BEFUSE CERM 1.6A 1KVAC 1KVDC 3AB |
871 |
|
Datasheet |
0ADBC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1.6 A | 1 kV | 1 kV | Fast Blow | 10kA | 3.72 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
0202002.URGFUSE BOARD MOUNT 2A 250VAC 2SMD |
229 |
|
Datasheet |
FLAT-PAK® 202 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | - | Fast Blow | 50A | 1.07 | CSA, UL | -55°C ~ 125°C | - | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) | |
|

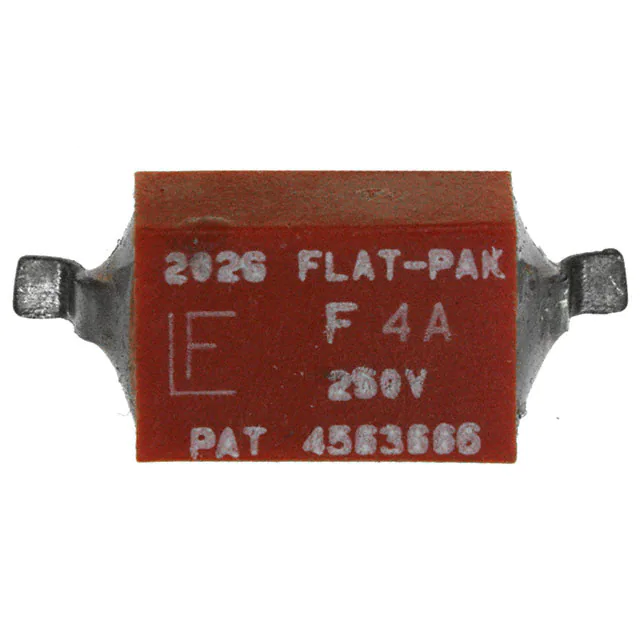

0202004.HXGFUSE BOARD MOUNT 4A 250VAC 2SMD |
200 |
|
Datasheet |
FLAT-PAK® 202 | Tube | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 250 V | - | Fast Blow | 50A | 3.0 | CSA, UL | -55°C ~ 125°C | - | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) | |
|
BK/GMD-1.25-RFUSE GLASS 1.25A 250VAC 5X20MM |
145 |
|
Datasheet |
GMD | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | - | Slow Blow | 100A | 16.0 | CSA, PSE/JET, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
BK/GMD-750-RFUSE GLASS 750MA 250VAC 5X20MM |
175 |
|
Datasheet |
GMD | Bulk | Active | Requires Holder | Cartridge, Glass | 750 mA | 250 V | - | Slow Blow | 35A | 4.7 | CSA, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0034.0903FUSE CERAMIC 1.6A 250VAC 5X20MM |
771 |
|
Datasheet |
SA 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1.6 A | 250 V | - | Fast Blow | 1.5kA | 0.384 | - | -40°C ~ 85°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
|
0034.0908FUSE CERAMIC 5A 250VAC 5X20MM |
197 |
|
Datasheet |
SA 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 5 A | 250 V | - | Fast Blow | 1.5kA | 1.78 | - | -40°C ~ 85°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
|
0034.0911FUSE CERAMIC 10A 250VAC 5X20MM |
141 |
|
Datasheet |
SA 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | - | Fast Blow | 1.5kA | 17.0 | - | -40°C ~ 85°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
0507008.MXEPFUSE CERAMIC 8A 650VDC AXIAL |
895 |
|
Datasheet |
507 | Bulk | Active | Through Hole | Cartridge, Ceramic | 8 A | - | 650 V | - | 150A | 53.0 | CE, cURus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0507001.MXPFUSE CERAMIC 1A 650VDC SMD |
668 |
|
Datasheet |
507 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1 A | - | 650 V | - | 150A | 0.6 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
051406.3MXPFUSE CERAMIC 6.3A 500VAC 3AB 3AG |
243 |
|
Datasheet |
514 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | 500 V | - | Fast Blow | 5kA | 13.5 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
BK/ABC-V-30-RFUSE CERM 30A 250VAC 125VDC 3AB |
116 |
|
Datasheet |
ABC | Bulk | Active | Through Hole | Cartridge, Ceramic | 30 A | 250 V | 125 V | Fast Blow | 200A AC, 400A DC | 1429.0 | CSA, UL | - | - | 0.266" Dia x 1.292" L (6.76mm x 32.82mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
