Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-103-107FUSE BRD MNT 1A 125VAC/VDC 2SMD |
4,410 |
|
Datasheet |
MGA-A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.008 | cURus, UL | -55°C ~ 125°C | - | 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm) | |
|
|
3-103-109FUSE BRD MNT 1.5A 125VAC/VDC SMD |
200 |
|
Datasheet |
MGA-A | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.014 | cURus, UL | -55°C ~ 125°C | - | 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm) | |
|
0224.375HXPFUSE GLASS 375MA 250VAC 125VDC |
71 |
|
Datasheet |
224 | Bulk | Active | Through Hole | Cartridge, Glass | 375 mA | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 0.171 | CE, CSA, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
0157.375DRTFUSE BRD MT 375MA 125VAC/VDC SMD |
2,825 |
|
Datasheet |
NANO²® 157T | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Slow Blow | 50A | 0.101 | cULus | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
|
35813150029FUSE CERM 3.15A 500VAC 3AB 3AG |
638 |
|
Datasheet |
358 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 500 V | - | Slow Blow | 1.5kA | 18.0 | cULus | -25°C ~ 85°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
0001.2532FUSE GLASS 6.3A 250VAC 63VDC 3AB |
608 |
|
Datasheet |
SPT 6.3x32 | Bulk | Active | Requires Holder | Cartridge, Glass | 6.3 A | 250 V | 63 V | Slow Blow | 1.5kA AC, 20kA DC | 224.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
0001.2531FUSE GLASS 5A 250VAC 63VDC 3AB |
434 |
|
Datasheet |
SPT 6.3x32 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | 63 V | Slow Blow | 1.5kA AC, 20kA DC | 127.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|

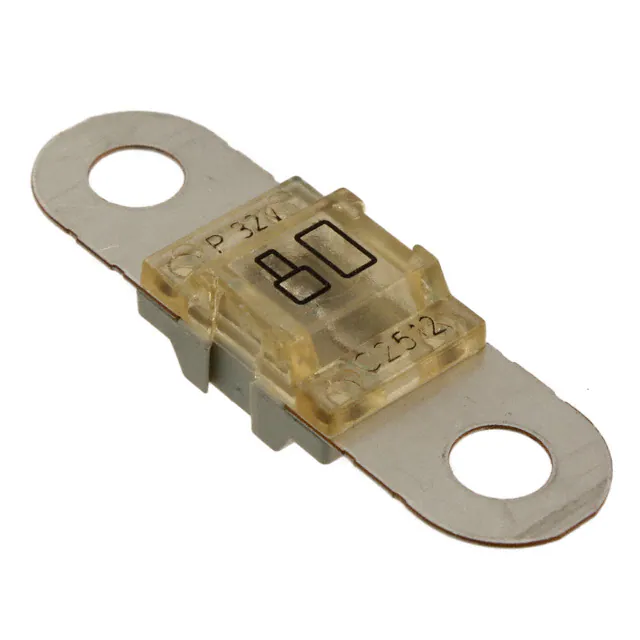

153.5631.5801FUSE AUTO 80A 32VDC AUTO LINK |
195 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 32 V | Slow Blow | 2kA | 25600.0 | ISO, UL | - | Clear | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
0299030.TXNFUSE AUTO 30A 32VDC BLADE MAX |
102 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | Slow Blow | 1kA | 4070.0 | DIN, ISO, SAE | -40°C ~ 125°C | Green | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
80812500000FUSE BRD MNT 2.5A 250VAC 450VDC |
1,438 |
|
Datasheet |
TE5® 808 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 250 V | 450 V | Fast Blow | 100A AC, 10kA DC | 0.0898 | cULus | -40°C ~ 125°C | - | 0.350" L x 0.183" W x 0.350" H (8.90mm x 4.65mm x 8.90mm) | |
|
0ADEP9250-REFUSE CERM 25A 500VAC 500VDC 3AB |
501 |
|
Datasheet |
0ADEP | Bulk | Active | Through Hole | Cartridge, Ceramic | 25 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 200.0 | cURus | -50°C ~ 105°C | - | 0.268" Dia x 1.291" L (6.81mm x 32.79mm) | |
|
SF-3812F2000T-2FUSE BRD MT 20A 250VAC/80DC 2SMD |
2,411 |
|
Datasheet |
SinglFuse™ SF-3812F-T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 250 V | 80 V | Fast Blow | 100A AC, 130A DC | 356.0 | cUL, UL | -55°C ~ 125°C | - | 0.398" L x 0.122" W x 0.122" H (10.10mm x 3.10mm x 3.10mm) | |
 Series.jpg)
|
BK/PCC-3/4-RFUSE BRD MNT 750MA 250VAC 450VDC |
715 |
|
Datasheet |
PC-Tron® | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 750 mA | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.016 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
08851.25DRFUSE BOARD MNT 1.25A 500VDC 2SMD |
1,466 |
|
Datasheet |
NANO²® 885 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | - | 500 V | - | 100A | 1.25 | cURus, TUV | -40°C ~ 85°C | - | 0.428" L x 0.188" W x 0.188" H (10.86mm x 4.78mm x 4.78mm) | |
|
0460.750URFUSE BRD MT 750MA 125VAC/VDC SMD |
235 |
|
Datasheet |
PICO® 460 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Slow Blow | 50A | 0.76 | CSA, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
TR-1350HV5-RFUSE BRD MT 5A 350VAC 500VDC SMD |
7,747 |
|
Datasheet |
1350HV | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 350 V | 500 V | Fast Blow | 100A | 11.5 | - | -40°C ~ 125°C | - | 0.520" L x 0.199" W x 0.199" H (13.20mm x 5.05mm x 5.05mm) | |
|
BK/C519-4-RFUSE GLASS 4A 125VAC 2AG |
145 |
|
Datasheet |
C519 | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 125 V | - | Slow Blow | 400A | 233.346 | UL | - | - | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | |
|
|
SF-3812F2500T-2FUSE BRD MT 25A 250VAC/80DC 2SMD |
4,982 |
|
Datasheet |
SinglFuse™ SF-3812F-T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 25 A | 250 V | 80 V | Fast Blow | 100A AC, 130A DC | 625.0 | cUL, UL | -55°C ~ 125°C | - | 0.398" L x 0.122" W x 0.122" H (10.10mm x 3.10mm x 3.10mm) | |
|
23016300021PFUSE CERAMIC 6.3A 250VAC 5X20MM |
200 |
|
Datasheet |
230 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | 250 V | - | Fast Blow | 1kA | 5.0 | - | -25°C ~ 70°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
80812000000FUSE BRD MT 2A 250VAC 450VDC RAD |
1,930 |
|
Datasheet |
TE5® 808 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 450 V | Fast Blow | 100A AC, 10kA DC | 0.061 | cULus | -40°C ~ 125°C | - | 0.350" L x 0.183" W x 0.350" H (8.90mm x 4.65mm x 8.90mm) |
