Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BK/S505-V-500-RFUSE CERAMIC 500MA 250VAC 5X20MM |
8,308 |
|
Datasheet |
S505 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 500 mA | 250 V | - | Slow Blow | 1.5kA | 0.188 | BSI, CCC/CQC, CSA, cULus, IMQ, SEMKO, VDE | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
|
BK/S505-V-5-RFUSE CERAMIC 5A 250VAC 5X20MM |
7,943 |
|
Datasheet |
S505 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 5 A | 250 V | - | Slow Blow | 1.5kA | 71.3 | BSI, CCC/CQC, CSA, cULus, IMQ, KC, PSE/JET, SEMKO, VDE | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
|
BK/S505-V-800-RFUSE CERAMIC 800MA 250VAC 5X20MM |
4,794 |
|
Datasheet |
S505 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 800 mA | 250 V | - | Slow Blow | 1.5kA | 0.632 | BSI, CCC/CQC, CSA, cULus, IMQ, SEMKO, VDE | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
BK1/MCRW12AFUSE BOARD MOUNT 12A 125VAC/VDC |
6,141 |
|
Datasheet |
Microtron® MCRW | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 12 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 35.0 | CSA, UL | - | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|
|
BK1/MCRW15AFUSE BOARD MOUNT 15A 125VAC/VDC |
6,322 |
|
Datasheet |
Microtron® MCRW | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 15 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 63.0 | CSA, UL | - | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|
|
BK1/MCRW200MAFUSE BRD MT 200MA 125VAC/VDC AXL |
3,189 |
|
- |
Microtron® MCRW | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 200 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.002 | CSA, UL | - | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|

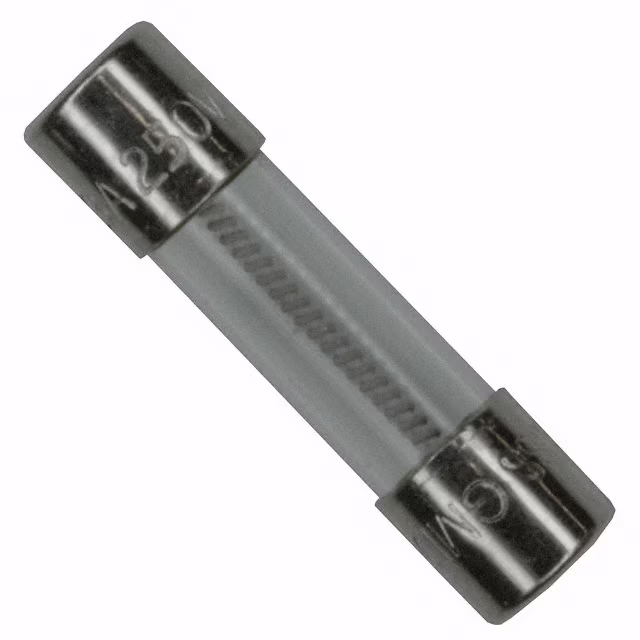

GMD-200-RFUSE GLASS 200MA 250VAC 5X20MM |
2,980 |
|
Datasheet |
GMD | Bulk | Active | Requires Holder | Cartridge, Glass | 200 mA | 250 V | - | Slow Blow | 35A | 0.2 | CSA, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
KTQ-2FUSE CERAMIC 2A 600VAC |
3,334 |
|
Datasheet |
KTQ | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 2 A | 600 V | - | Fast Blow | 10kA | - | UL | - | - | 0.406" Dia x 1.378" L (10.30mm x 35.00mm) | |
|
|
KTQ-3FUSE CERAMIC 3A 600VAC |
5,732 |
|
Datasheet |
KTQ | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 3 A | 600 V | - | Fast Blow | 10kA | - | UL | - | - | 0.406" Dia x 1.378" L (10.30mm x 35.00mm) | |
|
|
KTQ-4FUSE CERAMIC 4A 600VAC |
8,655 |
|
Datasheet |
KTQ | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 4 A | 600 V | - | Fast Blow | 10kA | - | UL | - | - | 0.406" Dia x 1.378" L (10.30mm x 35.00mm) | |
|
|
KTQ-5FUSE CERAMIC 5A 600VAC |
8,081 |
|
Datasheet |
KTQ | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 5 A | 600 V | - | Fast Blow | 10kA | - | UL | - | - | 0.406" Dia x 1.378" L (10.30mm x 35.00mm) | |
|
|
KTQ-6FUSE CERAMIC 6A 600VAC |
4,441 |
|
Datasheet |
KTQ | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 6 A | 600 V | - | Fast Blow | 10kA | - | UL | - | - | 0.406" Dia x 1.378" L (10.30mm x 35.00mm) | |
|
04611.25EERFUSE BRD MNT 600VAC 80VDC 2SMD |
3,961 |
|
- |
Telelink® 461E | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | 600 V | 80 V | Slow Blow | 60A AC, 100A DC | 16.5 | CSA, UL | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
0316.500NAT1FUSE BRD MT 500MA 125VAC/VDC AXL |
4,482 |
|
Datasheet |
PICO® II 316 | Tape & Box (TB) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 50A | 0.0598 | CCC | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0316002.NAT1FUSE BRD MNT 2A 125VAC/VDC AXIAL |
8,529 |
|
Datasheet |
PICO® II 316 | Tape & Box (TB) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Fast Blow | 50A | 0.405 | CCC | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
0674.100MXEPFUSE CERAMIC 100MA 250VAC AXIAL |
3,200 |
|
Datasheet |
674 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 100 mA | 250 V | - | Fast Blow | 50A | 0.00192 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0674.125MXEPFUSE CERAMIC 125MA 250VAC AXIAL |
4,413 |
|
Datasheet |
674 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 125 mA | 250 V | - | Fast Blow | 50A | 0.00299 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0674.200MXEPFUSE CERAMIC 200MA 250VAC AXIAL |
2,463 |
|
Datasheet |
674 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 200 mA | 250 V | - | Fast Blow | 50A | 0.0114 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0674.250MXEPFUSE CERAMIC 250MA 250VAC AXIAL |
5,079 |
|
Datasheet |
674 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 250 mA | 250 V | - | Fast Blow | 50A | 0.0225 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0674.300MXEPFUSE CERAMIC 300MA 250VAC AXIAL |
8,008 |
|
Datasheet |
674 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 300 mA | 250 V | - | Fast Blow | 50A | 0.0295 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) |
