Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

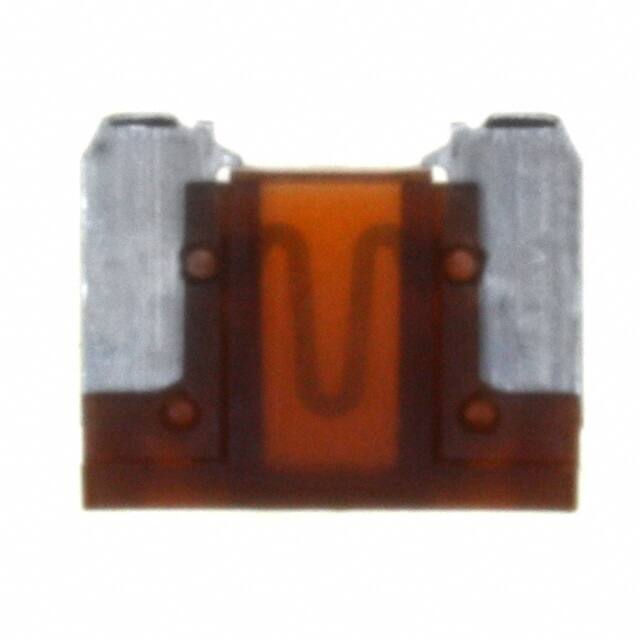

089707.5NFUSE AUTO 7.5A 58VDC BLADE MINI |
3,345 |
|
Datasheet |
MINI® 897 | Bulk | Obsolete | Requires Holder | Automotive | 7.5 A | - | 58 V | Fast Blow | 1kA | - | - | -40°C ~ 125°C | Brown | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
0897030.NFUSE AUTO 30A 58VDC BLADE MINI |
5,718 |
|
Datasheet |
MINI® 897 | Bulk | Obsolete | Requires Holder | Automotive | 30 A | - | 58 V | Fast Blow | 1kA | - | - | -40°C ~ 125°C | Green | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
|
0897025.NFUSE AUTO 25A 58VDC BLADE MINI |
8,559 |
|
Datasheet |
MINI® 897 | Bulk | Obsolete | Requires Holder | Automotive | 25 A | - | 58 V | Fast Blow | 1kA | - | - | -40°C ~ 125°C | Clear | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
0897015.NFUSE AUTO 15A 58VDC BLADE MINI |
7,638 |
|
Datasheet |
MINI® 897 | Bulk | Obsolete | Requires Holder | Automotive | 15 A | - | 58 V | Fast Blow | 1kA | - | - | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
|
0897003.NFUSE AUTOMOTIVE 3A 58VDC BLADE |
2,516 |
|
Datasheet |
MINI® 897 | Bulk | Obsolete | Requires Holder | Automotive | 3 A | - | 58 V | Fast Blow | 1kA | - | - | -40°C ~ 125°C | Violet | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
0897010.NFUSE AUTO 10A 58VDC BLADE MINI |
3,667 |
|
Datasheet |
MINI® 897 | Bulk | Obsolete | Requires Holder | Automotive | 10 A | - | 58 V | Fast Blow | 1kA | - | - | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
|
0897005.NFUSE AUTOMOTIVE 5A 58VDC BLADE |
8,789 |
|
Datasheet |
MINI® 897 | Bulk | Obsolete | Requires Holder | Automotive | 5 A | - | 58 V | Fast Blow | 1kA | - | - | -40°C ~ 125°C | Tan | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
|
0897004.NFUSE AUTOMOTIVE 4A 58VDC BLADE |
6,942 |
|
Datasheet |
MINI® 897 | Bulk | Obsolete | Requires Holder | Automotive | 4 A | - | 58 V | Fast Blow | 1kA | - | - | -40°C ~ 125°C | Pink | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) | |
|
0216008.MRET1PFUSE CERAMIC 8A 250VAC 5X20MM |
6,343 |
|
Datasheet |
216 | Tape & Reel (TR) | Discontinued at Digi-Key | Through Hole | Cartridge, Ceramic | 8 A | 250 V | - | Fast Blow | 1.5kA | 64.315 | CE, CSA, KC, PSE, SEMKO, TUV, UR | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
F0603C0R20FWTRFUSE BOARD MNT 200MA 32VDC 0603 |
8,891 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 200 mA | - | 32 V | Fast Blow | 50A | - | cUL, UL | -55°C ~ 125°C | - | 0.065" L x 0.031" W x 0.028" H (1.65mm x 0.80mm x 0.70mm) | |
|
|
F0805B0R15FWTRFUSE BOARD MNT 150MA 63VDC 0805 |
7,425 |
|
Datasheet |
Accu-Guard® II | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 150 mA | - | 63 V | Fast Blow | 50A | - | cUL, UL | -55°C ~ 125°C | - | 0.083" L x 0.050" W x 0.035" H (2.10mm x 1.27mm x 0.90mm) | |
|
TR/3216TD2-RFUSE BRD MNT 2A 32VAC 32VDC 1206 |
8,454 |
|
Datasheet |
CHIP 3216TD | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 32 V | 32 V | Slow Blow | 35A | 1.3 | cULus | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.039" H (3.20mm x 1.60mm x 1.00mm) | |
|
|
TR/3216TD3-RFUSE BRD MNT 3A 32VAC 32VDC 1206 |
9,994 |
|
Datasheet |
CHIP 3216TD | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 32 V | 32 V | Slow Blow | 35A | 3.3 | cULus | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.039" H (3.20mm x 1.60mm x 1.00mm) | |
|
|
TR/3216TD4-RFUSE BRD MNT 4A 32VAC 32VDC 1206 |
6,608 |
|
Datasheet |
CHIP 3216TD | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 32 V | 32 V | Slow Blow | 35A | 5.2 | cULus | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.039" H (3.20mm x 1.60mm x 1.00mm) | |
|
|
TR/3216TD5-RFUSE BRD MNT 5A 32VAC 32VDC 1206 |
9,057 |
|
Datasheet |
CHIP 3216TD | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 32 V | 32 V | Slow Blow | 35A | 8.4 | cULus | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.039" H (3.20mm x 1.60mm x 1.00mm) | |
|
MDA-15/100-RFUSE CERM 150MA 250VAC 3AB 3AG |
7,464 |
|
Datasheet |
MDA | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 150 mA | 250 V | - | Slow Blow | - | - | - | - | Black | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
TR1/6125TD3.5-RFUSE BRD MT 3.5A 125VAC 60VDC |
8,149 |
|
Datasheet |
BRICK 6125TD | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 3.5 A | 125 V | 60 V | Slow Blow | 50A | 14.5 | CSA, UL | - | - | 0.240" L x 0.107" W x 0.107" H (6.10mm x 2.72mm x 2.72mm) | |
|
TR2/6125FA3.5AFUSE BRD MNT 3.5A 125VAC/VDC SMD |
8,352 |
|
Datasheet |
BRICK 6125FA | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 3.5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 3.3 | CSA, UL | - | - | 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm) | |
|
|
TR2/6125FA375MAFUSE BRD MT 375MA 125VAC/VDC SMD |
7,315 |
|
Datasheet |
BRICK 6125FA | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.03 | CSA, UL | - | - | 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm) | |
|
0034.5244.PTFUSE GLASS 8A 250VAC |
9,520 |
|
Datasheet |
FST 6.3x32 | Bulk | Obsolete | Through Hole | Cartridge, Glass | 8 A | 250 V | - | Slow Blow | 200A | - | CSA, UL | -55°C ~ 125°C | - | - |
