Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0999025.ZXNFUSE AUTO 25A 58VDC BLADE MAX |
608 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 25 A | - | 58 V | Slow Blow | 1kA | 2087.0 | - | -40°C ~ 125°C | Gray | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0999035.ZXNFUSE AUTO 35A 58VDC BLADE MAX |
1,229 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 35 A | - | 58 V | Slow Blow | 1kA | 6032.0 | - | -40°C ~ 125°C | Brown | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0999080.ZXNFUSE AUTO 80A 58VDC BLADE MAX |
142 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 80 A | - | 58 V | Slow Blow | 1kA | 8800.0 | - | -40°C ~ 125°C | Clear | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
2908366FUSE AUTO 25A 32VDC BLADE ATO |
144 |
|
Datasheet |
- | Bulk | Active | Requires Holder | Automotive | 25 A | - | 32 V | - | - | - | EAC | - | - | 0.752" L x 0.197" W x 0.740" H (19.10mm x 5.00mm x 18.80mm) | |
|
SF-3812F1500T-2FUSE BRD MT 15A 250VAC/80DC 2SMD |
6,005 |
|
Datasheet |
SinglFuse™ SF-3812F-T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 250 V | 80 V | Fast Blow | 100A AC, 130A DC | 141.75 | cUL, UL | -55°C ~ 125°C | - | 0.398" L x 0.122" W x 0.122" H (10.10mm x 3.10mm x 3.10mm) | |
|
0505012.MXPFUSE CERM 12A 450VAC 250VDC 3AB |
1,179 |
|
Datasheet |
505 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 12 A | 450 V | 250 V | Fast Blow | 20kA AC, 1kA DC | 192.0 | CE, cULus, SEMKO | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0ADEP9200-REFUSE CERM 20A 500VAC 500VDC 3AB |
552 |
|
Datasheet |
0ADEP | Bulk | Active | Through Hole | Cartridge, Ceramic | 20 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 120.0 | cURus | -50°C ~ 105°C | - | 0.268" Dia x 1.291" L (6.81mm x 32.79mm) | |
|
BK/C520-125-RFUSE GLASS 125MA 250VAC 2AG |
279 |
|
Datasheet |
C520 | Bulk | Active | Requires Holder | Cartridge, Glass | 125 mA | 250 V | - | Fast Blow | 35A | 0.0019 | CSA, UL | - | - | 0.205" Dia x 0.570" L (5.20mm x 14.48mm) | |
|
37000500410FUSE BOARD MNT 50MA 250VAC RAD |
417 |
|
Datasheet |
TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 50 mA | 250 V | - | Fast Blow | 50A | 3.5E-4 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0ADAC9100-BEFUSE CERM 10A 600VAC 600VDC 3AB |
3,334 |
|
Datasheet |
0ADAC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 600 V | 600 V | Fast Blow | 10kA | 101.4 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
0ADAC4000-BEFUSE CERM 4A 600VAC 600VDC 3AB |
887 |
|
Datasheet |
0ADAC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 4 A | 600 V | 600 V | Fast Blow | 10kA | 15.5 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
0ADAC0400-BEFUSE CERM 400MA 600VAC/VDC 3AB |
485 |
|
Datasheet |
0ADAC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 400 mA | 600 V | 600 V | Fast Blow | 10kA | 0.038 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
0ADAC0200-BEFUSE CERM 200MA 600VAC/VDC 3AB |
456 |
|
Datasheet |
0ADAC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 200 mA | 600 V | 600 V | Fast Blow | 10kA | 0.003 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
0ADAC3000-BEFUSE CERM 3A 600VAC 600VDC 3AB |
345 |
|
Datasheet |
0ADAC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3 A | 600 V | 600 V | Fast Blow | 10kA | 7.74 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
142.5631.5402FUSE AUTO 40A 58VDC AUTO LINK |
1,347 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 40 A | - | 58 V | Slow Blow | 1kA | 6800.0 | cUL | - | Green | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
142.7010.6152FUSE AUTO 150A 58VDC AUTO LINK |
649 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 58 V | - | 1kA | 83400.0 | cURus | - | Gray | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|

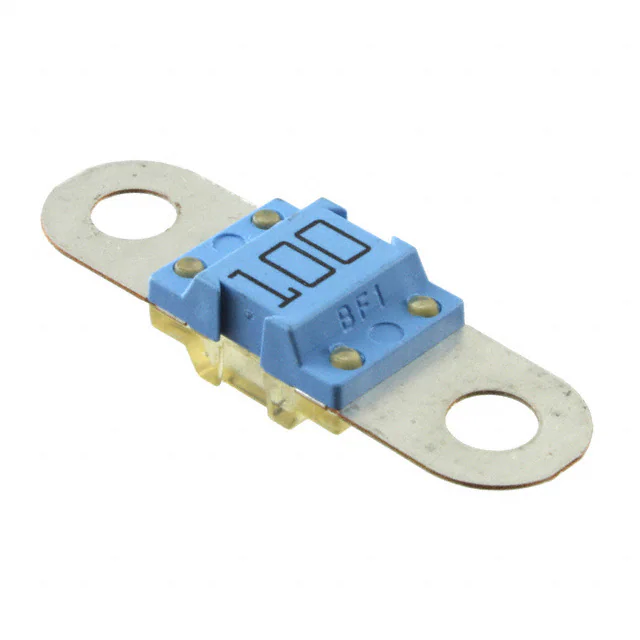

142.5631.6102FUSE AUTO 100A 58VDC AUTO LINK |
321 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 58 V | Slow Blow | 1kA | 42500.0 | cUL | - | Blue | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
|
142.7010.5502FUSE AUTO 50A 58VDC AUTO LINK |
181 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 50 A | - | 58 V | - | 1kA | 6900.0 | cURus | - | Red | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
|
37000400430FUSE BOARD MNT 40MA 250VAC RAD |
463 |
|
Datasheet |
TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 40 mA | 250 V | - | Fast Blow | 50A | 2.0E-4 | cURus, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0684L9400-01FUSE BOARD MOUNT 40A 350VAC |
8,766 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Requires Holder | Board Mount (Cartridge Style Excluded) | 40 A | 350 V | - | Fast Blow | 250A | 195.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.183" Dia x 0.476" L (4.65mm x 12.10mm) |
