Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7010.3440FUSE GLASS 2A 125VAC 5X20MM |
409 |
|
Datasheet |
D1 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 125 V | - | Fast Blow | 60A | 1.9 | - | -40°C ~ 70°C | - | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) | |
|
|
7010.3410FUSE GLASS 1A 220VAC 5X20MM |
299 |
|
Datasheet |
D1 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 220 V | - | Fast Blow | 60A | 0.81 | - | -40°C ~ 70°C | - | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) | |
|
|
7010.3430FUSE GLASS 1.6A 125VAC 5X20MM |
164 |
|
Datasheet |
D1 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.6 A | 125 V | - | Fast Blow | 60A | 0.93 | - | -40°C ~ 70°C | - | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) | |
|
0498200.MFUSE AUTO 200A 32VDC AUTO LINK |
1,878 |
|
Datasheet |
MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 200 A | - | 32 V | Slow Blow | 1kA | - | UL | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
0460003.URFUSE BRD MNT 3A 125VAC/VDC 2SMD |
885 |
|
Datasheet |
PICO® 460 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 125 V | Slow Blow | 50A | 21.0 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
|
0460.500URFUSE BRD MT 500MA 125VAC/VDC SMD |
505 |
|
Datasheet |
PICO® 460 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Slow Blow | 50A | 0.21 | CSA, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
3410.0031.02FUSE BRD MNT 1A 125VAC/VDC 2SMD |
1,427 |
|
Datasheet |
MGA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.035 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm) | |
|
|
3410.0037.01FUSE BRD MNT 3A 125VAC/VDC 2SMD |
1,100 |
|
Datasheet |
MGA | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.18 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm) | |
|
|
3410.0031.01FUSE BRD MNT 1A 125VAC/VDC 2SMD |
575 |
|
Datasheet |
MGA | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.035 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm) | |
|
|
3410.0027.01FUSE BRD MT 500MA 125VAC/VDC SMD |
470 |
|
Datasheet |
MGA | Bulk | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.0042 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm) | |
|

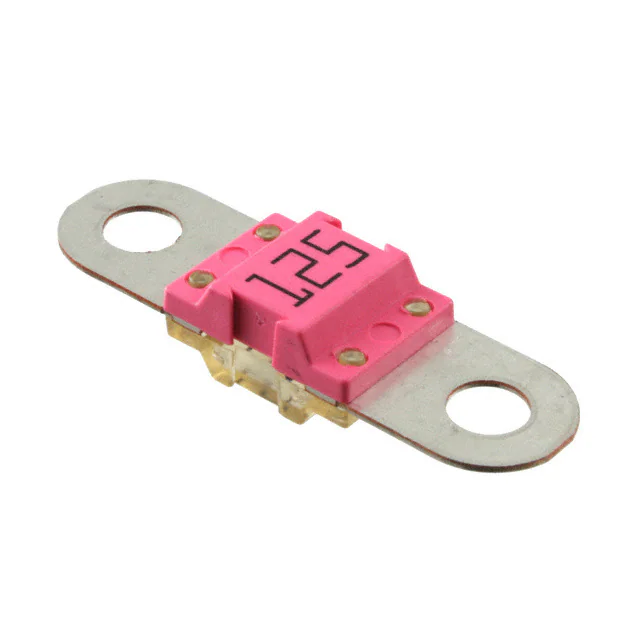

153.5631.6122FUSE AUTO 125A 32VDC AUTO LINK |
368 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 125 A | - | 32 V | Slow Blow | 2kA | 62500.0 | UL | - | Pink | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
|
3410.0033.01FUSE BRD MNT 1.5A 125VAC/VDC SMD |
360 |
|
Datasheet |
MGA | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.064 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm) | |
|
0453.125MRFUSE BRD MT 125MA 125VAC/VDC SMD |
3,188 |
|
- |
NANO²® 453 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 125 mA | 125 V | 125 V | Fast Blow | 50A | 0.00286 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0312.100MXPFUSE GLASS 100MA 250VAC 3AB 3AG |
1,255 |
|
Datasheet |
312 | Bulk | Active | Requires Holder | Cartridge, Glass | 100 mA | 250 V | - | Fast Blow | 35A | 0.00102 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0460.375URFUSE BRD MT 375MA 125VAC/VDC SMD |
304 |
|
Datasheet |
PICO® 460 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Slow Blow | 50A | 0.085 | CSA, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
0157003.DRFUSE BRD MNT 3A 125VAC/VDC 2SMD |
5,020 |
|
Datasheet |
NANO²® 157 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 125 V | Fast Blow | 50A | 1.65 | cULus, PSE | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
|
|
015706.3DRFUSE BRD MNT 6.3A 125VAC/VDC SMD |
3,540 |
|
Datasheet |
NANO²® 157 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 6.3 A | 125 V | 125 V | Fast Blow | 50A | 9.17 | cULus, PSE | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
|
|
0157001.DRFUSE BRD MNT 1A 125VAC/VDC 2SMD |
2,008 |
|
Datasheet |
NANO²® 157 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A | 0.459 | cULus, PSE | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
 Series.jpg)
|
0477008.MXEPFUSE CERM 8A 500VAC 400VDC 5X20 |
1,339 |
|
Datasheet |
477 | Bulk | Active | Through Hole | Cartridge, Ceramic | 8 A | 500 V | 400 V | Slow Blow | 100A AC, 500A DC | 203.52 | cULus, PSE, SEMKO | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
|
0498100.MFUSE AUTO 100A 32VDC AUTO LINK |
1,488 |
|
Datasheet |
MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 32 V | Slow Blow | 1kA | - | UL | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) |
