Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XFHCL2620-471LFIXED IND 470UH 3.5A 100.0 MOHM |
20 |
|
Datasheet |
XFHCL2620 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±15% | 3.5 A | - | Shielded | 100mOhm Max | - | 2.15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
XFHCL2620-101LFIXED IND 100UH 7.5A 25.0 MOHM S |
20 |
|
Datasheet |
XFHCL2620 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±15% | 7.5 A | - | Shielded | 25mOhm Max | - | 4.98MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
XFHCL2620-151LFIXED IND 150UH 6A 38.0 MOHM SMD |
20 |
|
Datasheet |
XFHCL2620 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±15% | 6 A | - | Shielded | 38mOhm Max | - | 3.9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
XFHCL2620-221LFIXED IND 220UH 5A 50.0 MOHM SMD |
20 |
|
Datasheet |
XFHCL2620 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±15% | 5 A | - | Shielded | 50mOhm Max | 12 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.807" W (27.00mm x 20.50mm) | 0.945" (24.00mm) |
|
|
XFHCL2620-470LFIXED IND 47UH 10.5A 13 MOHM SMD |
20 |
|
Datasheet |
XFHCL2620 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±15% | 10.5 A | - | Shielded | 13mOhm Max | - | 7.45MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
CTDAS1013F-100MSMD POWER INDUCTOR FOR DIG AMP |
8 |
|
Datasheet |
CTDAS1013F | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 8.6A | Shielded | 23.4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.413" (10.50mm) |
|

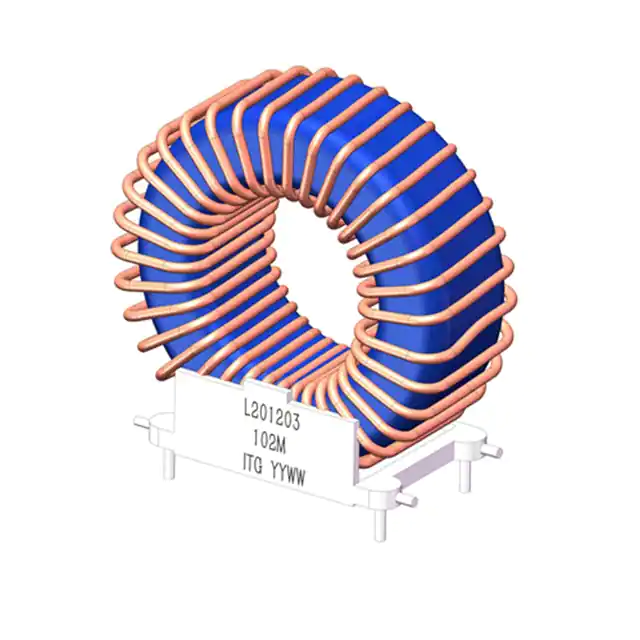

L201203-102MHFFIXED IND 1.17MH 7A 73 MOHM TH |
12 |
|
Datasheet |
L201203 | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Alloy Powder | 1.17 mH | ±20% | 7 A | 1.8A | Unshielded | 73mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.732" L x 0.811" W (44.00mm x 20.60mm) | 1.807" (45.90mm) |
|
CTSPT50LF-263M26UH SMT STD TOROIDAL INDUCTOR |
8 |
|
- |
CTSPT-L | Nonstandard | Bulk | Active | Toroidal | - | 26 µH | ±20% | 5.1 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
CTMMP8751F-100MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 10 µH | ±20% | 28 A | - | Shielded | 4.14mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
CTMMP8751F-101MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 100 µH | ±20% | 7 A | - | Shielded | 39.4mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
CTMMP8751F-2R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 48 A | - | Shielded | 1.25mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
CTMMP8751F-R47MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 0.47 µH | ±20% | 100 A | - | Shielded | 0.67mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
CTDAS0910AF-220MSMD SHLD PWR INDUCTOR FOR DIG AM |
25 |
|
Datasheet |
CTDAS0910AF | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.5 A | 3.3A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.413" (10.50mm) |
|
CTHR5F-680K68UH FILTER INDUCTOR |
10 |
|
Datasheet |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | 7.5 A | 9A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.860" Dia (21.84mm) | 1.125" (28.58mm) |
|
|
CTHR5F-101K100UH FILTER INDUCTOR |
3 |
|
Datasheet |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 7.5 A | 7A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.860" Dia (21.84mm) | 1.375" (34.93mm) |
|
|
CTHR5F-500K50UH FILTER INDUCTOR |
3 |
|
Datasheet |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 8 A | 10A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.840" Dia (21.34mm) | 1.125" (28.58mm) |
|
L301314A-151LHF150uH, 43mOhm, 2.6A Max. Toroida |
24 |
|
Datasheet |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 150 µH | ±15% | 6 A | 2.6A | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.102" L x 1.012" W (28.00mm x 25.70mm) | 0.630" (16.00mm) |
|
|
L301314A-690LHF69.63uH, 18.5mOhm, 3.8A Max. DI |
24 |
|
Datasheet |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 69.63 µH | ±15% | 9.5 A | 3.8A | Unshielded | 18.5mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.142" L x 1.012" W (29.00mm x 25.70mm) | 0.650" (16.50mm) |
|
|
L301314A-101LHF100uH, 26mOhm, 3.2A Max. DIP To |
24 |
|
Datasheet |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 100 µH | ±15% | 8 A | 3.2A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.142" L x 1.012" W (29.00mm x 25.70mm) | 0.650" (16.50mm) |
|
|
L301314A-301LHF300uH, 170mOhm, 1.8A Max. Toroid |
24 |
|
Datasheet |
L301314A | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 300 µH | ±15% | 2.9 A | 1.8A | Unshielded | 170mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.063" L x 1.012" W (27.00mm x 25.70mm) | 0.571" (14.50mm) |
