Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTH7F-120K12UH AXIAL PWR LINE INDUCTOR |
25 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 12 µH | ±10% | 1.3 A | 3.6A | Unshielded | 40mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-820K82UH AXIAL PWR LINE INDUCTOR |
20 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 82 µH | ±10% | 800 mA | 1.4A | Unshielded | 150mOhm Max | - | 4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-122K1200UH AXIAL PWR LINE INDUCTOR |
20 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 1.2 mH | ±10% | 200 mA | 350mA | Unshielded | 2.7Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-103K10000UH AXIAL PWR LINE INDUCTOR |
20 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 10 mH | ±10% | 50 mA | 120mA | Unshielded | 26Ohm Max | - | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-100K10UH AXIAL PWR LINE INDUCTOR |
20 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 10 µH | ±10% | 1.3 A | 4.1A | Unshielded | 30mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-471K470UH AXIAL PWR LINE INDUCTOR |
17 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 470 µH | ±10% | 320 mA | 590mA | Unshielded | 1.2Ohm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-123K12000UH AXIAL PWR LINE INDUCTOR |
15 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 12 mH | ±10% | 50 mA | 110mA | Unshielded | 30Ohm Max | - | 250kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-8R2K8.2UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±10% | 1.3 A | 4.5A | Unshielded | 30mOhm Max | - | 22MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-332K3300UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 3.3 mH | ±10% | 130 mA | 220mA | Unshielded | 6.6Ohm Max | - | 600kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-392K3900UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 3.9 mH | ±10% | 100 mA | 200mA | Unshielded | 8.6Ohm Max | - | 600kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-271K270UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 270 µH | ±10% | 400 mA | 770mA | Unshielded | 560mOhm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-822K8200UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 8.2 mH | ±10% | 70 mA | 130mA | Unshielded | 21Ohm Max | - | 350kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-470K47UH AXIAL PWR LINE INDUCTOR |
5 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 47 µH | ±10% | 800 mA | 1.8A | Unshielded | 110mOhm Max | - | 6MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|

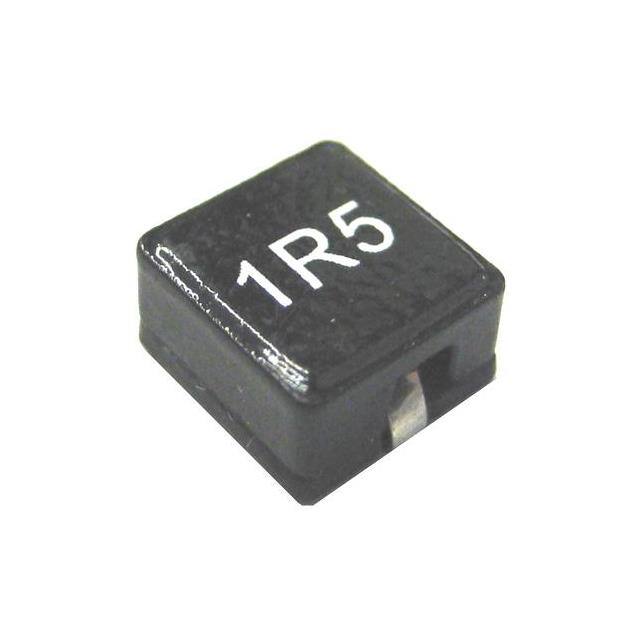

CTSFW7040F-4R7MSMD FLAT WIRE POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW7040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 6 A | 7A | Shielded | 21.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.173" (4.40mm) |
|
|
CTSFW7040F-1R0MSMD FLAT WIRE POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW7040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 15 A | 19A | Shielded | 5.1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.173" (4.40mm) |
|
CTSFW7050F-100MSMD FLAT WIRE POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW7050F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.5 A | 4A | Shielded | 36.3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.213" (5.40mm) |
|
|
CTSFW7050F-1R1MSMD FLAT WIRE POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW7050F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.1 µH | ±20% | 15 A | 13A | Shielded | 3.47mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.213" (5.40mm) |
|
CTH8VF-332K3300UH AXIAL PWR LINE INDUCTOR |
20 |
|
Datasheet |
CTH8VF | Axial | Bulk | Active | Wirewound | - | 3.3 mH | ±10% | 400 mA | 470mA | Unshielded | 2.6Ohm Max | - | 600kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.449" Dia x 0.898" L (11.40mm x 22.80mm) | - |
|
PQ108081-561MHFFIXED IND 560UH 4A 95 MOHM SMD |
20 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 560 µH | ±20% | 4 A | - | Shielded | 95mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-620MHFFIXED IND 62UH 12A 15 MOHM SMD |
20 |
|
Datasheet |
PQ108081 | Nonstandard, 3 Lead | Tray | Active | - | Ferrite | 62 µH | ±20% | 12 A | - | Shielded | 15mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
