Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPRX2520H-R60MCHIGH CURRENT THT POWER INDUCTOR |
0 |
|
Datasheet |
CPRX2520H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 0.6 µH | ±20% | 80 A | 350A | Shielded | 0.3mOhm Max | - | - | - | -55°C ~ 155°C | - | High Saturation | Through Hole | 2520 | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) | |
|
|
CPRX2520H-2R0MCHIGH CURRENT THT POWER INDUCTOR |
0 |
|
Datasheet |
CPRX2520H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 2 µH | ±20% | 62 A | 175A | Shielded | 0.95mOhm Max | - | - | - | -55°C ~ 155°C | - | High Current | Through Hole | 2520 | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) | |
|
|
CPRX2520H-1R5MCHIGH CURRENT THT POWER INDUCTOR |
0 |
|
Datasheet |
CPRX2520H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 1.5 µH | ±20% | 65 A | 210A | Shielded | 0.7mOhm Max | - | - | - | -55°C ~ 155°C | - | High Current | Through Hole | 2520 | 0.984" L x 0.819" W (25.00mm x 20.80mm) | 0.856" (21.75mm) | |
|
|
SMRF1010-047KEPOXY-COATED CHIP INDUCTOR |
0 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 47 nH | ±10% | 820 mA | - | Unshielded | 145mOhm Max | 42 @ 50MHz | 1.22GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
CL1108-3-50TR-RFIXED IND 50NH 80A 0.00028OHM SM |
0 |
|
Datasheet |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 3 Phase | Surface Mount | - | 1.063" L x 0.433" W (27.00mm x 11.00mm) | 0.315" (8.00mm) |
|
PFC3318QM-601K03E-00CHOKE COIL 600UH 2.8A TH |
0 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 600 µH | ±10% | 2.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.378" L x 1.102" W (35.00mm x 28.00mm) | 0.787" (20.00mm) |
|
|
PFC3318QM-601K03B-00CHOKE COMMON MODE |
0 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 600 µH | ±10% | 2.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.378" L x 1.102" W (35.00mm x 28.00mm) | 0.787" (20.00mm) |
|
|
PFC3318QM-451K04B-00CHOKE COMMON MODE |
0 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 450 µH | ±10% | 3.7 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.378" L x 1.102" W (35.00mm x 28.00mm) | 0.787" (20.00mm) |
|
|
050KM1003SMTOROIDAL INDUCTOR |
0 |
|
Datasheet |
KMSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 100 µH | ±10% | 3.14 A | 960mA | Shielded | 55mOhm Max | - | 4MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.405" (10.28mm) |
|

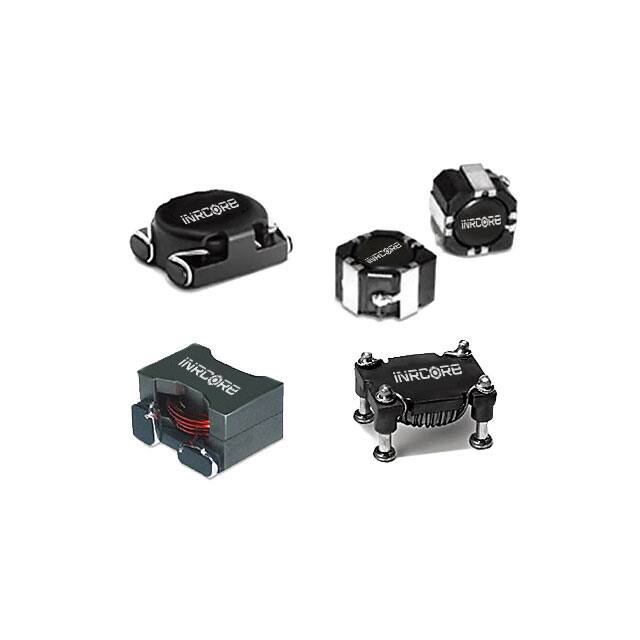

PL8150FIXED IND 1.25UH 14.3A 2.5 MOHM |
0 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 1.25 µH | - | 14.3 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8150NLFIXED IND 1.25UH 14.3A 2.5 MOHM |
0 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 1.25 µH | - | 14.3 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
SMT3106-151MSHIELDED TOROIDAL CHOKE |
0 |
|
Datasheet |
SMT3106 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 1.5 µH | ±20% | 3.8 A | 5.8A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.169" (4.30mm) |
|
|
SMT3106-221MSHIELDED TOROIDAL CHOKE |
0 |
|
Datasheet |
SMT3106 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 2.2 µH | ±20% | 3.4 A | 4.6A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.169" (4.30mm) |
|
|
SMT3106-101MSHIELDED TOROIDAL CHOKE |
0 |
|
Datasheet |
SMT3106 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 1 µH | ±20% | 4 A | 6.8A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.169" (4.30mm) |
|
|
26HF4003HHORIZONTAL TOROIDAL INDUCTOR |
0 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 400 µH | ±10% | 600 mA | 430mA | Unshielded | 700mOhm Max | - | 1.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|
|
26HF4003VVERTICAL TOROIDAL INDUCTOR |
0 |
|
Datasheet |
HF | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 400 µH | ±10% | 600 mA | 430mA | Unshielded | 700mOhm Max | - | 1.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia x 0.150" L (8.13mm x 3.81mm) | - |
|
|
IHM2EB153KFIXED IND 15MH 260MA 21.9 OHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 15 mH | ±10% | 260 mA | - | Unshielded | 21.9Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM153KFIXED IND 15MH 260MA 21.9 OHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 15 mH | ±10% | 260 mA | - | Unshielded | 21.9Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
DC1390-105KFIXED IND 1MH 3.32A 216 MOHM TH |
0 |
|
Datasheet |
DC1390 | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 1 mH | ±10% | 3.32 A | 4.24A | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.480" Dia (37.60mm) | 1.064" (27.03mm) |
|
|
DC1390-125KFIXED IND 1.2MH 3.21A 232MOHM TH |
0 |
|
Datasheet |
DC1390 | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 1.2 mH | ±10% | 3.21 A | 3.87A | Unshielded | 232mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.480" Dia (37.60mm) | 1.064" (27.03mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
