Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLP5025-270LTHIGH CURRENT T-LEVEL INDUCTOR |
0 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 270 nH | ±15% | 6.75 A | 6.75A | Unshielded | 8.5mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-151LTHIGH CURRENT T-LEVEL INDUCTOR |
0 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±15% | 4.45 A | 4.45A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-331LTHIGH CURRENT T-LEVEL INDUCTOR |
0 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±15% | 3.23 A | 3.23A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-470LTHIGH CURRENT T-LEVEL INDUCTOR |
0 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±15% | 6 A | 6A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-390LTHIGH CURRENT T-LEVEL INDUCTOR |
0 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 390 nH | ±15% | 6.25 A | 6.25A | Unshielded | 9.5mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
MLP5025-221LTHIGH CURRENT T-LEVEL INDUCTOR |
0 |
|
Datasheet |
MLP5025 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±15% | 3.7 A | 3.7A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
SML32S-100GMOLDED SHIELDED INDUCTOR |
0 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 100 nH | ±2% | 1.175 A | - | Shielded | 150mOhm Max | - | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|

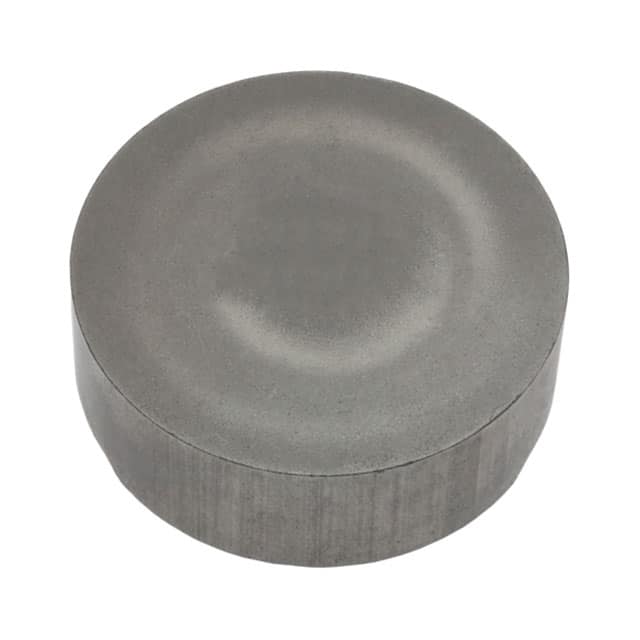

IHTH1500MZEB2R7M5AIHTH-1500MZ-5A 2.7 20% EB E2 |
0 |
|
Datasheet |
IHTH-1500MZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 2.7 µH | ±20% | 87.3 A | 96.7A | Shielded | 0.51mOhm Max | - | 14.1MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.502" (12.75mm) |
|
|
HL8527-305KMOLDED HIGH INDUCTANCE CHOKE |
0 |
|
Datasheet |
HL8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 30 mH | ±10% | 59 mA | - | Unshielded | 125Ohm Max | 55 @ 70kHz | 220kHz | - | -55°C ~ 125°C | 70 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
050KM1503HHORIZONTAL TOROIDAL INDUCTOR |
0 |
|
Datasheet |
KM | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 150 µH | ±10% | 2.33 A | 780mA | Shielded | 100mOhm Max | - | 2MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.300" (7.62mm) |
|
|
050KM2003VVERTICAL TOROIDAL INDUCTOR |
0 |
|
Datasheet |
KM | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 200 µH | ±10% | 1.97 A | 650mA | Shielded | 140mOhm Max | - | 1.7MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia x 0.300" L (15.88mm x 7.62mm) | - |
|
HTPT66R-393KFIXED IND 39UH 2.8A 73 MOHM TH |
0 |
|
Datasheet |
HTPT66R | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 39 µH | ±10% | 2.8 A | 3A | Shielded | 73mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
HTPT66-393KFIXED IND 39UH 2.8A 73 MOHM TH |
0 |
|
Datasheet |
HTPT66 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 39 µH | ±10% | 2.8 A | 3A | Shielded | 73mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
PL2058FIXED IND 10.2UH 12.5A 5.8 MOHM |
0 |
|
Datasheet |
- | Nonstandard | Tube | Active | Wirewound | - | 10.2 µH | ±10% | 12.5 A | 15A | Unshielded | 5.8mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PL2058NLFIXED IND 10.2UH 12.5A 5.8 MOHM |
0 |
|
Datasheet |
- | Nonstandard | Tube | Active | Wirewound | - | 10.2 µH | ±10% | 12.5 A | 15A | Unshielded | 5.8mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
SMP3316-101MMOLDED UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9.3 A | 11A | Unshielded | 6.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-331MMOLDED UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.5 A | 7A | Unshielded | 12.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-101MLFMOLDED UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9.3 A | 11A | Unshielded | 6.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-221MLFMOLDED UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 7.6 A | 7.8A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-151MMOLDED UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 8.3 A | 10.4A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
