Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM6530T-4R7M-HZFIXED IND 4.7UH 5.6A 39.38 MOHM |
1,640 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 5.6 A | 4.6A | Shielded | 39.38mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
CDRH127NP-390MCFIXED IND 39UH 2.75A 72.9MOHM SM |
1,500 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 2.75 A | - | Shielded | 72.9mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
74438366015FIXED IND 1.5UH 6.7A 21.3MOHM SM |
999 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 6.7 A | 9.5A | Shielded | 21.3mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
744383660082FIXED IND 820NH 8.8A 9.6MOHM SMD |
810 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 nH | ±20% | 8.8 A | 11A | Shielded | 9.6mOhm Max | - | 53.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
SBC6-152-451FIXED IND 1.5MH 450MA 1.8 OHM TH |
418 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 450 mA | 900mA | Unshielded | 1.8Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
7847110020WE-RCIT ROD CORE INDUCTOR THT 2. |
1,140 |
|
Datasheet |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | 2 µH | ±25% | 4 A | 5A | Unshielded | 11mOhm | - | 290MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.126" Dia x 0.484" L (3.20mm x 12.30mm) | - |
|
|
7847121020WE-RCIT ROD CORE INDUCTOR THT 2. |
202 |
|
Datasheet |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | 2 µH | ±25% | 10 A | 32A | Unshielded | 3.8mOhm | - | 150MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.299" Dia x 0.606" L (7.60mm x 15.40mm) | - |
|
PA5001.221NLTFIXED IND 220NH 16.8A 4.6MOHM SM |
5,933 |
|
Datasheet |
PA5001.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 220 nH | ±20% | 16.8 A | 19.5A | Shielded | 4.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
CDRH127NP-560MCFIXED IND 56UH 2.35A 110MOHM SMD |
653 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 2.35 A | - | Shielded | 110mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
MPI4015V2-2R2-RFIXED IND 2.2UH 2.9A 78 MOHM SMD |
3,273 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 2.9 A | 4.5A | Shielded | 78mOhm Max | - | 42MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.059" (1.50mm) |
|
|
SBC6-102-561FIXED IND 1MH 560MA 1.21 OHM TH |
308 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 560 mA | 1.1A | Unshielded | 1.21Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|

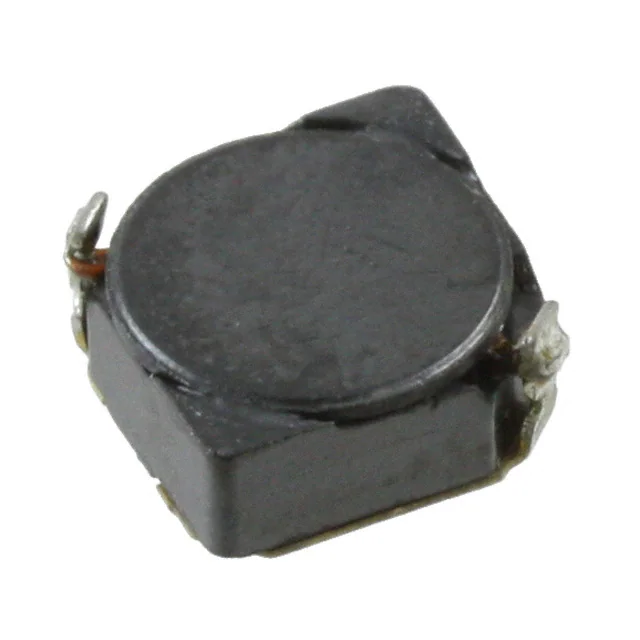

SD7030-100-RFIXED IND 10UH 2.1A 65 MOHM SMD |
3,012 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2.1 A | 1.7A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|

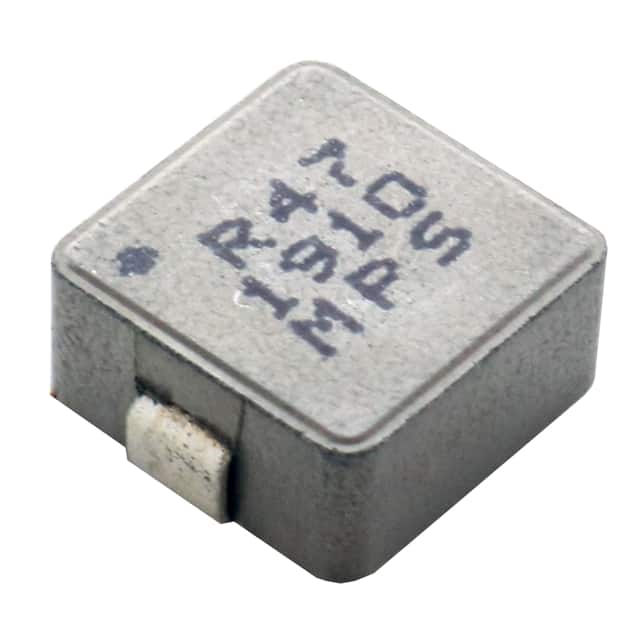

MPL-AY1050-1R0FIXED IND 1UH 19A 2.6 MOHM SMD |
1,490 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 1 µH | - | 19 A | 33A | Unshielded | 2.6mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
B82464P4333M000FIXED IND 33UH 1.85A 75 MOHM SMD |
538 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.85 A | 2.1A | Shielded | 75mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MPL-AY1050-5R6FIXED IND 5.6UH 9.8A 13 MOHM SMD |
396 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | - | 9.8 A | 14A | Unshielded | 13mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
7447480152FIXED IND 1.5MH 680MA 1.8 OHM TH |
222 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 680 mA | 600mA | Unshielded | 1.8Ohm Max | - | 950kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|

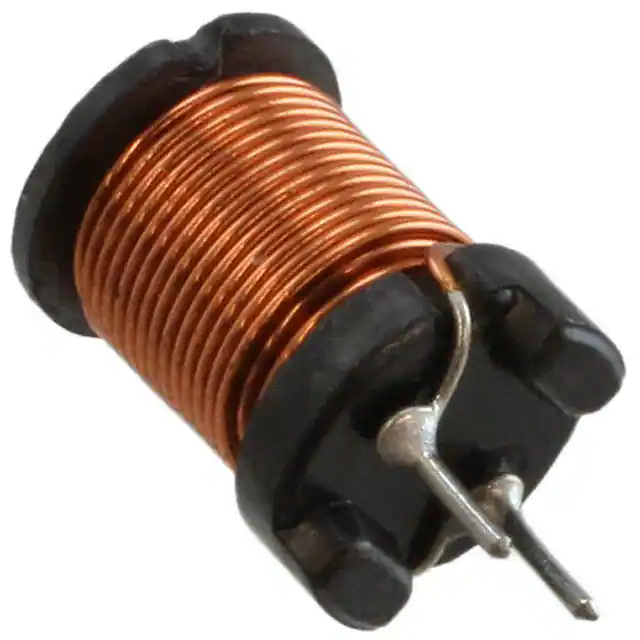

7447480151FIXED IND 150UH 2A 180 MOHM TH |
119 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 2 A | 2.1A | Unshielded | 180mOhm Max | - | 3.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
744134FIXED IND 92UH 5.4A 50 MOHM TH |
106 |
|
Datasheet |
WE-SI | Radial | Bulk | Active | Toroidal | Iron Powder | 92 µH | ±20% | 5.4 A | 2.3A | Unshielded | 50mOhm Max | - | 9MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.220" Dia x 0.531" W (31.00mm x 13.50mm) | - |
|
|
SPM6550T-100M-HZFIXED IND 10UH 4.9A 60.5MOHM SMD |
2,112 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 4.9 A | 3.2A | Shielded | 60.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
P1168.684NLTFIXED IND 680UH 500MA 1.824 OHM |
1,434 |
|
Datasheet |
P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 500 mA | 500mA | Shielded | 1.824Ohm Max | - | 2.1MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
