Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL110-330K-RCFIXED IND 33UH 2.9A 55 MOHM TH |
1,258 |
|
Datasheet |
RL110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 2.9 A | - | Unshielded | 55mOhm Max | 20 @ 2.52MHz | 6MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
IHLE4040DDER3R3M5AFIXED IND 3.3UH 11A 11.81MOHM SM |
745 |
|
Datasheet |
IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 11 A | 12A | Shielded | 11.81mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
MPI4020V2-R22-RFIXED IND 220NH 9.5A 6.6MOHM SMD |
12,028 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 9.5 A | 12.5A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
B82477P4682M000FIXED IND 6.8UH 6.6A 15 MOHM SMD |
4,086 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.6 A | 7.3A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
744306025FIXED IND 250NH 25A 0.00026OHM |
1,616 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 250 nH | ±20% | 25 A | 32.3A | Shielded | 0.26mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1052 | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.217" (5.50mm) |
|
744308020FIXED IND 200NH 25A 0.00037OHM |
827 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 200 nH | ±20% | 25 A | 50.4A | Shielded | 0.37mOhm | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1070 | 0.398" L x 0.276" W (10.10mm x 7.00mm) | 0.276" (7.00mm) |
|
SLF12575T-151M1R5-PFFIXED IND 150UH 1.6A 210MOHM SMD |
712 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.6 A | 1.5A | Shielded | 210mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
DRA127-101-RFIXED IND 100UH 1.888A 175 MOHM |
691 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.888 A | 3.46A | Shielded | 175mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
744307012FIXED IND 120NH 26A 0.00029OHM |
650 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±20% | 26 A | 48.5A | Shielded | 0.29mOhm | - | 400MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7070 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.295" (7.50mm) |
|
744301033FIXED IND 330NH 38A 0.00032OHM |
544 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 330 nH | ±20% | 38 A | 48.9A | Shielded | 0.32mOhm | - | 115MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1190 | 0.445" L x 0.433" W (11.30mm x 11.00mm) | 0.370" (9.40mm) |
|
|
B82477P4224M000FIXED IND 220UH 1.24A 305MOHM SM |
328 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.24 A | 1.35A | Shielded | 305mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|

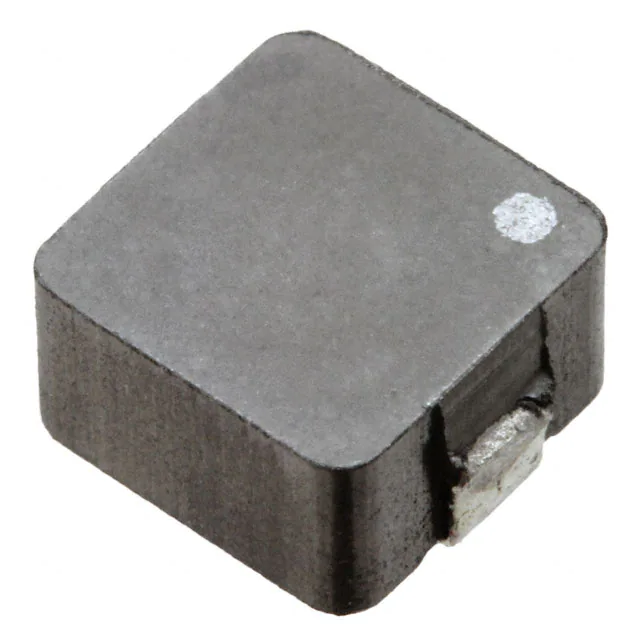

MPCH0740LR24FIXED IND 240NH 27A 1 MOHM SMD |
3,166 |
|
Datasheet |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 240 nH | ±20% | 27 A | 20A | Shielded | 1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
IHSR2525CZER56NM5AIHSR-2525CZ-5A .056 20% ER |
1,097 |
|
Datasheet |
IHSR-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 nH | ±20% | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - |
|
B82477R4682M100FIXED IND 6.8UH 6.6A 15 MOHM SMD |
381 |
|
Datasheet |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.6 A | 10.5A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
7687480332WE-TI HV RADIAL LEADED WIRE WOUN |
110 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 3.3 mH | ±5% | 350 mA | 500mA | Unshielded | 4Ohm Max | - | 750kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
ASPIAIG-F4020-R10M-TFIXED IND 100NH 18A 2.42MOHM SMD |
10,023 |
|
Datasheet |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 18 A | 33A | Shielded | 2.42mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
MPL-AL5050-8R2FIXED IND 8.2UH 5.8A 28 MOHM SMD |
7,374 |
|
Datasheet |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | - | 5.8 A | 7.2A | Unshielded | 28mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
7440650068FIXED IND 6.8UH 4.2A 33 MOHM SMD |
6,739 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.2 A | 3.6A | Shielded | 33mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065221FIXED IND 220UH 500MA 1 OHM SMD |
2,396 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 500 mA | 550mA | Shielded | 1Ohm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
MPL-AL5050-5R6FIXED IND 5.6UH 6.8A 20 MOHM SMD |
1,637 |
|
Datasheet |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | - | 6.8 A | 8A | Unshielded | 20mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
