Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB1-563RADIAL POWR LINE CHOKE |
0 |
|
Datasheet |
DB1 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 560 µH | ±20% | 1.1 A | 2.9A | Unshielded | 430mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.650" Dia (16.51mm) | 0.712" (18.08mm) |
|
|
GA30-682KLFHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 68 µH | ±10% | 3.111 A | 1.2A | Unshielded | 47mOhm Max | - | 2.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|

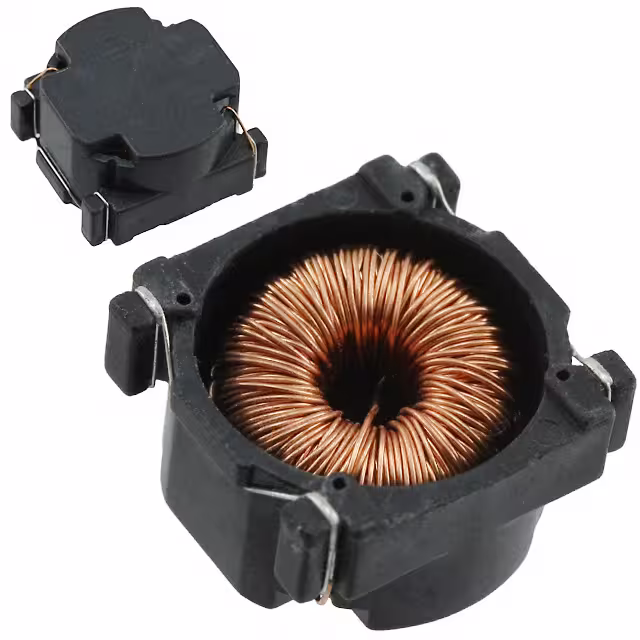

SH150S-0.36-375FIXED IND 375UH 360MA 1.3OHM SMD |
0 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 375 µH | ±20% | 360 mA | - | Unshielded | 1.3Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
|
LC20-7001SMTOROIDAL INDUCTOR |
0 |
|
Datasheet |
LCSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 7 µH | ±20% | 2.1 A | - | Shielded | 70mOhm Max | - | 55MHz | - | -30°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
|
21M221KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±10% | 680 mA | - | Unshielded | 500mOhm Max | 40 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M271KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±10% | 600 mA | - | Unshielded | 650mOhm Max | 40 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M221KLFMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±10% | 680 mA | - | Unshielded | 500mOhm Max | 40 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M391KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.9 µH | ±10% | 440 mA | - | Unshielded | 1.2Ohm Max | 40 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M151KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±10% | 925 mA | - | Unshielded | 280mOhm Max | 40 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M561KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±10% | 885 mA | - | Unshielded | 130mOhm Max | 35 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M101KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±10% | 1.29 A | - | Unshielded | 140mOhm Max | 65 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M181KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.8 µH | ±10% | 790 mA | - | Unshielded | 370mOhm Max | 40 @ 7.9MHz | 150MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M331KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.3 µH | ±10% | 480 mA | - | Unshielded | 1Ohm Max | 40 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M121KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±10% | 1.12 A | - | Unshielded | 190mOhm Max | 40 @ 7.9MHz | 180MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M471KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±10% | 360 mA | - | Unshielded | 1.8Ohm Max | 40 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M151KLFMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±10% | 925 mA | - | Unshielded | 280mOhm Max | 40 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
MLRF21M561KMIL MOLDED AXIAL RF COIL |
0 |
|
Datasheet |
MLRF21M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±10% | 885 mA | - | Unshielded | 130mOhm Max | 35 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
MLRF21M271KMIL MOLDED AXIAL RF COIL |
0 |
|
Datasheet |
MLRF21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±10% | 600 mA | - | Unshielded | 650mOhm Max | 40 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
MLRF21M471KMIL MOLDED AXIAL RF COIL |
0 |
|
Datasheet |
MLRF21M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±10% | 360 mA | - | Unshielded | 1.8Ohm Max | 40 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
21M681KMOLDED UNSHIELDED RF COILS AXL |
0 |
|
Datasheet |
21M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±10% | 710 mA | - | Unshielded | 200mOhm Max | 35 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
