Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1120-390K-RCFIXED IND 39UH 5.5A 30 MOHM TH |
0 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 5.5 A | - | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-3R3M-RCFIXED IND 3.3UH 11.4A 5 MOHM TH |
0 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 11.4 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-561K-RCFIXED IND 560UH 1.6A 388 MOHM TH |
0 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.6 A | - | Unshielded | 388mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-681K-RCFIXED IND 680UH 1.6A 430 MOHM TH |
0 |
|
Datasheet |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.6 A | - | Unshielded | 430mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-182K-RCFIXED IND 1.8MH 800MA 1.39OHM TH |
0 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 800 mA | - | Unshielded | 1.39Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-391K-RCIND0.62X.81X.84IN,390UH10%1.6A,N |
0 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1.6 A | - | Unshielded | 320mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-150K-RCIND0.62X.81X.84IN,150UH10%4A,NON |
0 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 9 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
IHLP5050EZRZ2R2ML1INDUCT WW SNGL COIL MISC |
0 |
|
Datasheet |
IHLP-5050EZ-L1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 20 A | 32A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|
IHLP5050EZRZ100ML1INDUCT WW SNGL COIL MISC |
0 |
|
Datasheet |
IHLP-5050EZ-L1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 9 A | 16A | Shielded | 25.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|
IHLP5050EZRZ150ML1INDUCT WW SNGL COIL MISC |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP5050EZRZ3R3ML1INDUCT WW SNGL COIL MISC |
0 |
|
Datasheet |
IHLP-5050EZ-L1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 15 A | 32A | Shielded | 9.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|
CSCF2014-R70MCSUPER HIGH CURRENT POWER INDUCTO |
0 |
|
Datasheet |
CSCF2014 | 3-SMD | Active | Wirewound | Ferrite | 0.7 µH | ±20% | 32 A | 75A | Shielded | 0.79mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) | |
|
TCK-069FIXED IND 33UH 1.2A 130MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 33 µH | ±20% | 1.2 A | - | Unshielded | 130mOhm Max | - | - | - | - | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
TCK-071FIXED IND 18UH 1.8A 100MOHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 18 µH | ±20% | 1.8 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CPL2-3-50TR-RFIXED IND 50NH 80A 0.28 MOHM SMD |
0 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.063" L x 0.335" W (27.00mm x 8.50mm) | 0.189" (4.80mm) |
|

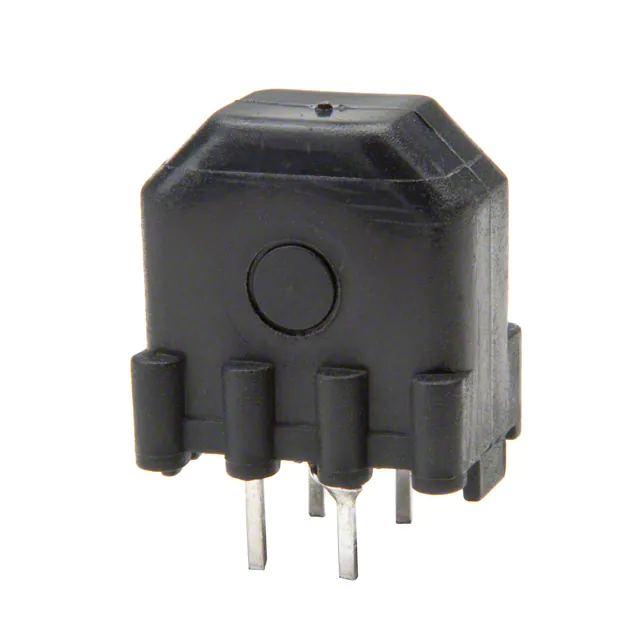

DPV-5.0-100FIXED IND 100UH 5A 59 MOHM TH |
0 |
|
Datasheet |
DP | Radial, Vertical, 4 Leads | Tray | Active | Toroidal | Iron Powder | 100 µH | ±15% | 5 A | - | Unshielded | 59mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.260" L x 0.807" W (32.00mm x 20.50mm) | 1.378" (35.00mm) |
|
DC780-102LFIXED IND 1UH 11.4A 3 MOHM TH |
0 |
|
Datasheet |
DC780 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±15% | 11.4 A | 110mA | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
|
DC780-122LFIXED IND 1.2UH 11.4A 3 MOHM TH |
0 |
|
Datasheet |
DC780 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±15% | 11.4 A | 108A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
|
DC780-152LFIXED IND 1.5UH 11.4A 3 MOHM TH |
0 |
|
Datasheet |
DC780 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±15% | 11.4 A | 89A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
|
DC780-182LFIXED IND 1.8UH 11.4A 3 MOHM TH |
0 |
|
Datasheet |
DC780 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±15% | 11.4 A | 81A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
