Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4341.822ANLTFIXED IND 8.2UH 4.5A 60 MOHM SMD |
2,835 |
|
Datasheet |
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 4.5 A | 6A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
EXLA1V0505-6R8-RIND MOLDED SHLD 6.8UH 4.8A |
1,564 |
|
Datasheet |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 6.4 A | 6.6A | Shielded | 28.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
SRU8028A-2R5YFIXED IND 2.5UH 4.5A 18 MOHM SMD |
1,500 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 4.5 A | 4.2A | Shielded | 18mOhm Max | 15 @ 7.96MHz | 65MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
PA5448.472NLTFIXED IND 4.7UH 9A 31 MOHM SMD |
1,448 |
|
Datasheet |
PA5448.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 9 A | 8A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.118" (3.00mm) |
|
744043270FIXED IND 27UH 890MA 200MOHM SMD |
1,196 |
|
Datasheet |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±30% | 890 mA | 600mA | Shielded | 200mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1919 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
EST0645T331MDGAFIXED IND 330UH 470MA 950MOHM SM |
922 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 470 mA | 360mA | Shielded | 950mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.248" L x 0.240" W (6.30mm x 6.10mm) | 0.177" (4.50mm) |
|
|
EXLA1V0606-2R2-RIND MOLDED SHLD 2.2UH 14.0A |
905 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 14 A | 12A | Shielded | 7.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
CLF7045T-4R7N-HFIXED IND 4.7UH 4.1A 20 MOHM SMD |
654 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 3.6A | Shielded | 20mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
IHLP1616ABERR47M11FIXED IND 470NH 6A 21 MOHM SMD |
523 |
|
Datasheet |
IHLP-1616AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 6 A | 5.7A | Shielded | 21mOhm Max | - | 117MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|

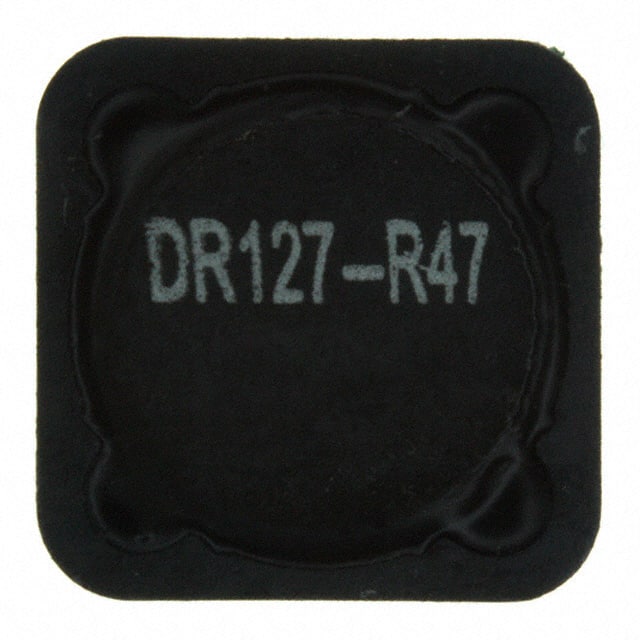

DR127-R47-RFIXED IND 470NH 17.9A 1.95 MOHM |
341 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 17.9 A | 56A | Shielded | 1.95mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
MPL-AY3020-1R5FIXED IND 1.5UH 3.4A 35 MOHM SMD |
9,911 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | - | 3.4 A | 5.9A | Unshielded | 35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
PM124SH-100M-RCFIXED IND 10UH 4A 32 MOHM SMD |
9,156 |
|
Datasheet |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 4A | Shielded | 32mOhm Max | 17 @ 2.52MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
74404031027AFIXED IND 2.7UH 1.85A 80MOHM SMD |
7,932 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±20% | 1.85 A | 1.66A | Shielded | 80mOhm | - | 121MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
RL622-471K-RCFIXED IND 470UH 460MA 1.1 OHM TH |
6,018 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 460 mA | - | Unshielded | 1.1Ohm Max | 20 @ 796kHz | 1.9MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
74404024015FIXED IND 1.5UH 1.9A 65 MOHM SMD |
5,130 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.9 A | 2.3A | Shielded | 65mOhm | - | 104MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
RL622-2R2K-RCFIXED IND 2.2UH 6.5A 21 MOHM TH |
3,454 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 6.5 A | - | Unshielded | 21mOhm Max | 20 @ 7.96MHz | 100MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
74404031470AFIXED IND 47UH 480MA 1.253OHM SM |
3,237 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 0.4 A | 410mA | Shielded | 1.253Ohm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
AIUR-06-470KFIXED IND 47UH 3.2A 63 MOHM TH |
3,055 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 3.2 A | 4.1A | Unshielded | 63mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
RL622-820K-RCFIXED IND 82UH 1.1A 230 MOHM TH |
2,901 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.1 A | - | Unshielded | 230mOhm Max | 30 @ 2.52MHz | 4.1MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
AIUR-06-102KFIXED IND 1MH 650MA 1.2 OHM TH |
2,868 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 650 mA | 880mA | Unshielded | 1.2Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
