Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH8D28NP-150NCFIXED IND 15UH 2.35A 69 MOHM SMD |
2,798 |
|
Datasheet |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 2.35 A | 1.9A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
CLF7045T-4R7N-DFIXED IND 4.7UH 3.6A 26 MOHM SMD |
2,641 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.6 A | 4.1A | Shielded | 26mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
DRA74-331-RFIXED IND 330UH 435MA 1.5OHM SMD |
2,178 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 435 mA | 514mA | Shielded | 1.5Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
HCMA0503-R20-RFIXED IND 200NH 22.2A 2.31 MOHM |
2,152 |
|
Datasheet |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±20% | 22.2 A | 21A | Shielded | 2.31mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
ETQ-P4M1R5KVCFIXED IND 1.5UH 17.4A 5.39 MOHM |
2,107 |
|
Datasheet |
PCC-M1040M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 17.4 A | 25A | Shielded | 5.39mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP3012TA-R56MFIXED IND 560NH 4.5A 36 MOHM SMD |
16,664 |
|
Datasheet |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 560 nH | ±20% | 4.5 A | 6.6A | Shielded | 36mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
IHLP1212BZEV1R2M5AFIXED IND 1.2UH 4.78A 38.99MOHM |
10,695 |
|
Datasheet |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 4.78 A | 2.97A | Shielded | 38.99mOhm Max | - | 67MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
CLF6045T-2R2N-HFIXED IND 2.2UH 4A 15 MOHM SMD |
4,787 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4 A | 3.9A | Shielded | 15mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|

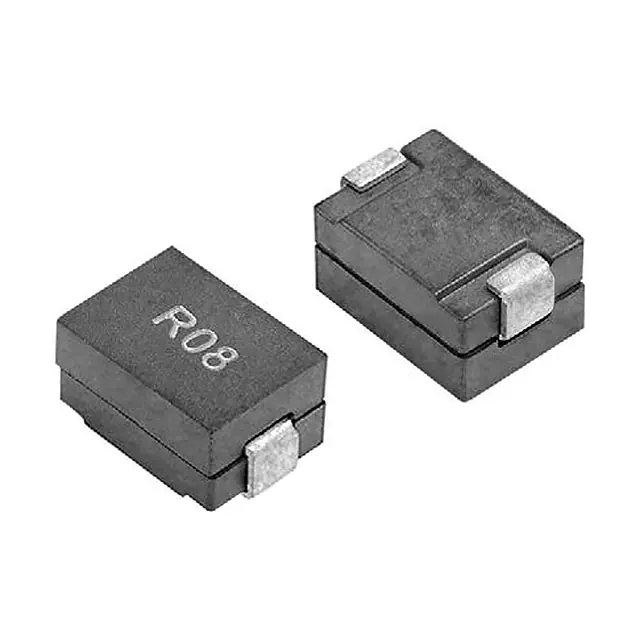

IFLR4027EZERR10M01FIXED IND 100NH 50A 0.42MOHM SMD |
4,401 |
|
Datasheet |
IFLR-4027EZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | 50 A | 70A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.402" W (7.00mm x 10.20mm) | 0.197" (5.00mm) |
|

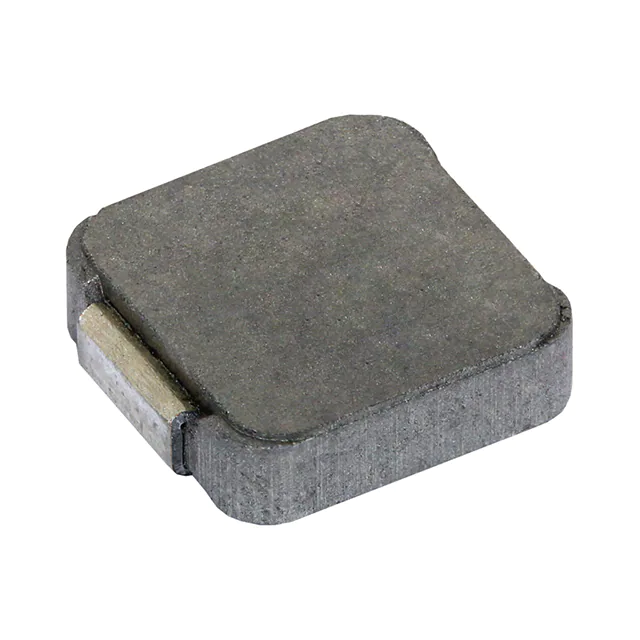

IHLP1212AZEVR10M5AFIXED IND 100NH 11.13A 8.81MOHM |
3,755 |
|
Datasheet |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 11.13 A | 7.38A | Shielded | 8.81mOhm Max | - | 440MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.039" (1.00mm) |
|
|
IHLP1212AZEVR47M5AFIXED IND 470NH 5.35A 27.92MOHM |
3,655 |
|
Datasheet |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 5.35 A | 4.43A | Shielded | 27.92mOhm Max | - | 152MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.039" (1.00mm) |
|
IHLP1212ABEVR22M5AFIXED IND 220NH 8.83A 12.22MOHM |
2,355 |
|
Datasheet |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 8.83 A | 6.76A | Shielded | 12.22mOhm Max | - | 235MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
|
CLF6045T-150M-HFIXED IND 15UH 2A 55 MOHM SMD |
2,000 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2 A | 1.5A | Shielded | 55mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|

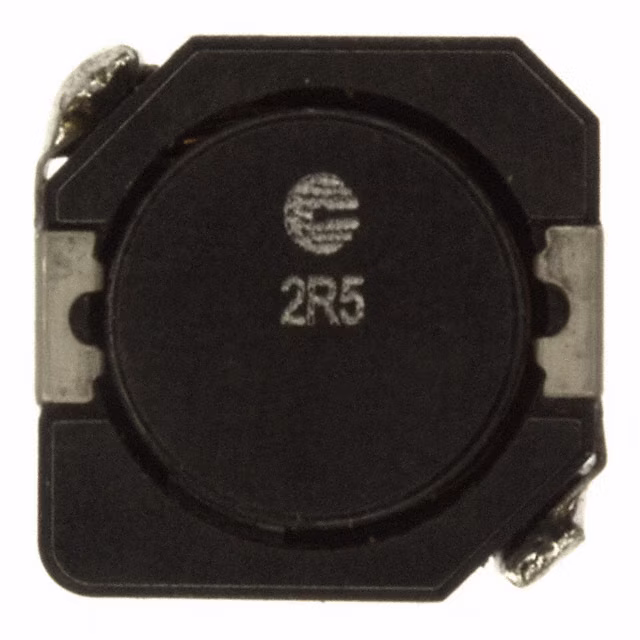

DR1040-2R5-RFIXED IND 2.5UH 6.1A 9 MOHM SMD |
1,681 |
|
Datasheet |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 6.1 A | 7.8A | Shielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
CMLE063T-8R2MSFIXED IND 8.2UH 5.1A 60MOHM SMD |
1,650 |
|
Datasheet |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 8.2 µH | ±20% | 5.1 A | 5.7A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CLF6045T-100M-HFIXED IND 10UH 2.4A 38 MOHM SMD |
1,445 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.4 A | 1.7A | Shielded | 38mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|
CDRH2D14NP-3R3NCFIXED IND 3.3UH 1.24A 125MOHM SM |
1,150 |
|
Datasheet |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.24 A | 1.2A | Shielded | 125mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|

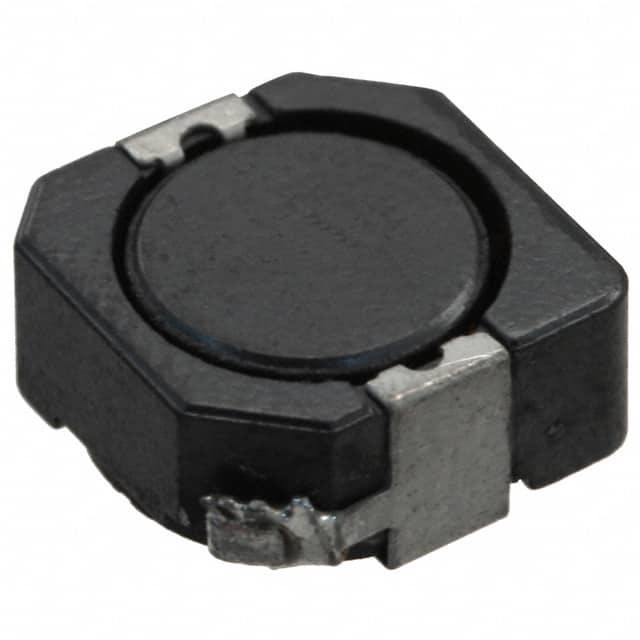

DR1050-2R2-RFIXED IND 2.2UH 7.52A 6.8MOHM SM |
909 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.52 A | 9.25A | Shielded | 6.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
DR125-560-RFIXED IND 56UH 2.31A 102MOHM SMD |
421 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2.31 A | 3A | Shielded | 102mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
SRP3012TA-1R0MFIXED IND 1UH 3.3A 60 MOHM SMD |
388 |
|
Datasheet |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 3.3 A | 5.5A | Shielded | 60mOhm Max | - | 65MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
