Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLF302515MT-4R7MFIXED IND 4.7UH 1.95A 90MOHM SMD |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.95 A | 1.03A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
|
VLF302515MT-100MFIXED IND 10UH 1.37A 180MOHM SMD |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.37 A | 710mA | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
|
VLF302515MT-150MFIXED IND 15UH 990MA 330MOHM SMD |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 990 mA | 560mA | Shielded | 330mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
|
VLF302515MT-220MFIXED IND 22UH 750MA 490MOHM SMD |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 750 mA | 460mA | Shielded | 490mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
LTF3020T-5R6N-DFIXED IND 5.6UH 1.07A 170MOHM SM |
0 |
|
Datasheet |
LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 1.07 A | 790mA | Shielded | 170mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|
|
LTF3020T-6R8N-DFIXED IND 6.8UH 920MA 220MOHM SM |
0 |
|
Datasheet |
LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 920 mA | 690mA | Shielded | 220mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|
|
LTF3020T-330M-DFIXED IND 33UH 490MA 730MOHM SMD |
0 |
|
Datasheet |
LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 490 mA | 320mA | Shielded | 730mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|
SPM5015T-1R5MFIXED IND 1.5UH 4.7A 43.7MOHM SM |
0 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 4.7 A | 5.2A | Shielded | 43.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
|
SPM5015T-3R3MFIXED IND 3.3UH 3.3A 89.1MOHM SM |
0 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 3.3 A | 4.2A | Shielded | 89.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
IHLP2525CZERR82M8AFIXED IND 820NH 13.8A 7.22 MOHM |
0 |
|
Datasheet |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 13.8 A | 16.8A | Shielded | 7.22mOhm Max | - | 72.9MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
MGV12033R3M-10FIXED IND 3.3UH 12A 12 MOHM SMD |
0 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 12 A | 27A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0404 (1010 Metric) | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.150" (3.80mm) |
|

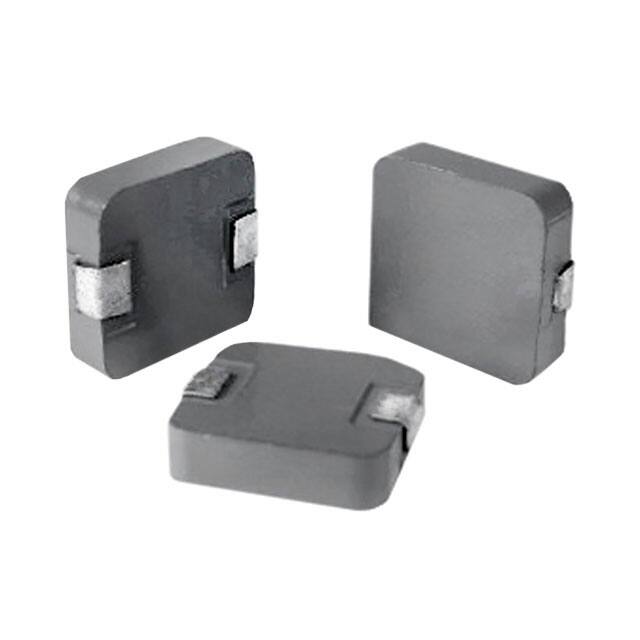

MGV12034R7M-10FIXED IND 4.7UH 10A 16 MOHM SMD |
0 |
|
Datasheet |
MGV | Nonstandard, 2 Lead | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 10 A | 24A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.150" (3.80mm) |
|
18R225CFIXED IND 2.2MH 300MA 2.2 OHM TH |
0 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 2.2 mH | ±10% | 300 mA | - | Unshielded | 2.2Ohm Max | 106 @ 50kHz | 1.41MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R254CFIXED IND 250UH 800MA 255MOHM TH |
0 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 250 µH | ±10% | 800 mA | - | Unshielded | 255mOhm Max | 40 @ 100kHz | 3.85MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R335CFIXED IND 3.3MH 220MA 3.5 OHM TH |
0 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 3.3 mH | ±10% | 220 mA | - | Unshielded | 3.5Ohm Max | 139 @ 50kHz | 1.04MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R472CFIXED IND 4.72UH 5.35A 9MOHM TH |
0 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 4.72 µH | ±10% | 5.35 A | - | Unshielded | 9mOhm Max | 106 @ 1MHz | 35.1MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R682CFIXED IND 6.8UH 4.15A 12MOHM TH |
0 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 6.8 µH | ±10% | 4.15 A | - | Unshielded | 12mOhm Max | 73 @ 500kHz | 26.3MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R685CFIXED IND 6.8MH 150MA 7 OHM TH |
0 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 6.8 mH | ±10% | 150 mA | - | Unshielded | 7Ohm Max | 143 @ 40kHz | 710kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
SRP1038C-R10YFIXED IND 100NH 53A 0.38MOHM SMD |
0 |
|
Datasheet |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 100 nH | ±30% | 53 A | 85A | Shielded | 0.38mOhm Max | 10 @ 100kHz | 215MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038C-R15MFIXED IND 150NH 45A 0.6 MOHM SMD |
0 |
|
Datasheet |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 150 nH | ±20% | 45 A | 80A | Shielded | 0.6mOhm Max | 10 @ 100kHz | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
