Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMG1812-022MLFMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 22 nH | ±20% | 1.23 A | - | Unshielded | 100mOhm Max | 40 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMG1812-022MMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 22 nH | ±20% | 1.23 A | - | Unshielded | 100mOhm Max | 40 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMG1812-082MLFMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 82 nH | ±20% | 700 mA | - | Unshielded | 250mOhm Max | 35 @ 50MHz | 750MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMG1812-012MLFMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 12 nH | ±20% | 1.23 A | - | Unshielded | 100mOhm Max | 40 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMG1812-082MMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 82 nH | ±20% | 700 mA | - | Unshielded | 250mOhm Max | 35 @ 50MHz | 750MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMG1812-010MLFMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 10 nH | ±20% | 1.23 A | - | Unshielded | 100mOhm Max | 40 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMG1812-012MMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 12 nH | ±20% | 1.23 A | - | Unshielded | 100mOhm Max | 40 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMRF1812-010MMOLDED UNSHIELDED INDUCTOR |
0 |
|
- |
SMRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Phenolic | 10 nH | ±20% | 1.23 A | - | Unshielded | 100mOhm Max | 40 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.138" (3.50mm) |
|
FP1308R3-R26-RFIXED IND 260NH 68A 0.18MOHM SMD |
0 |
|
Datasheet |
FLAT-PAC, FP1308R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 260 nH | ±10% | 68 A | 64A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.500" W (13.40mm x 12.70mm) | 0.315" (8.00mm) |
|
PM105-150M-RCFIXED IND 15UH 2.25A 80 MOHM SMD |
0 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.25 A | 4A | Unshielded | 80mOhm | 30 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-181K-RCFIXED IND 180UH 720MA 630MOHM SM |
0 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 720 mA | 1.3A | Unshielded | 630mOhm | 12 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
18R683CFIXED IND 68UH 1.35A 70 MOHM TH |
0 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | 1.35 A | - | Unshielded | 70mOhm Max | 27 @ 100kHz | 8.29MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R223CFIXED IND 22UH 2.42A 25 MOHM TH |
0 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 22 µH | ±10% | 2.42 A | - | Unshielded | 25mOhm Max | 51 @ 500kHz | 14.1MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
PM105-330K-RCFIXED IND 33UH 1.5A 120 MOHM SMD |
0 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.5 A | 2.9A | Unshielded | 120mOhm | 25 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|

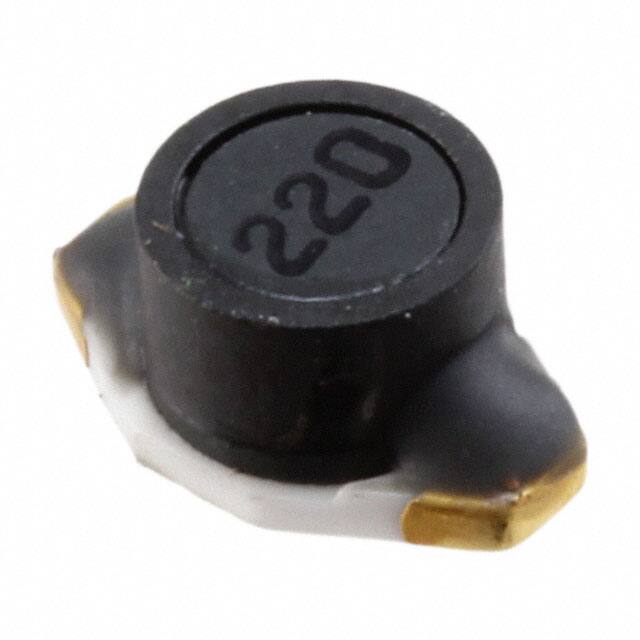

PM1608S-220M-RCFIXED IND 22UH 700MA 110MOHM SMD |
0 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | - | Shielded | 110mOhm Max | 40 @ 100kHz | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
VLF302515MT-R47NFIXED IND 470NH 4A 20 MOHM SMD |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 4 A | 3.18A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
|
VLF302515MT-1R0NFIXED IND 1UH 3.31A 30 MOHM SMD |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.31 A | 2.15A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
|
VLF302515MT-1R5NFIXED IND 1.5UH 3.14A 38MOHM SMD |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.14 A | 1.84A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
|
VLF302515MT-2R2MFIXED IND 2.2UH 2.71A 50MOHM SMD |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.71 A | 1.57A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
|
|
VLF302515MT-3R3MFIXED IND 3.3UH 2.25A 72MOHM SMD |
0 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.25 A | 1.23A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" (1.50mm) |
