Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC1008-331KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.3 µH | ±10% | 240 mA | - | Unshielded | 4.2Ohm | 22 @ 25MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-151KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.5 µH | ±10% | 325 mA | - | Unshielded | 2.3Ohm Max | 28 @ 7.9MHz | 200MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-560KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 560 nH | ±10% | 425 mA | - | Unshielded | 1.33Ohm Max | 45 @ 25MHz | 415MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-330KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 330 nH | ±10% | 475 mA | - | Unshielded | 1.05Ohm | 45 @ 100MHz | 570MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-391KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.9 µH | ±10% | 235 mA | - | Unshielded | 4.4Ohm Max | 20 @ 7.9MHz | 90MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-121KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.2 µH | ±10% | 345 mA | - | Unshielded | 2Ohm Max | 35 @ 7.9MHz | 250MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-820KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 820 nH | ±10% | 385 mA | - | Unshielded | 1.61Ohm | 45 @ 100MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-390KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 390 nH | ±10% | 460 mA | - | Unshielded | 1.12Ohm | 45 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-181KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.8 µH | ±10% | 305 mA | - | Unshielded | 2.6Ohm Max | 28 @ 7.9MHz | 160MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CF4H1008-102JFERRITE HP CHIP INDUCTOR |
0 |
|
Datasheet |
CF4H1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 325 mA | - | Unshielded | 2.4Ohm Max | 30 @ 25MHz | 80MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.120" L x 0.110" W (3.05mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-470KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 470 nH | ±10% | 450 mA | - | Unshielded | 1.19Ohm Max | 45 @ 25MHz | 450MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-101KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1 µH | ±10% | 370 mA | - | Unshielded | 1.75Ohm Max | 35 @ 25MHz | 290MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-680KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 680 nH | ±10% | 405 mA | - | Unshielded | 1.47Ohm Max | 45 @ 25MHz | 375MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-471KCERAMIC SMT CHIP INDUCTOR |
0 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.7 µH | ±10% | 220 mA | - | Unshielded | 4.9Ohm Max | 20 @ 7.9MHz | 90MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|

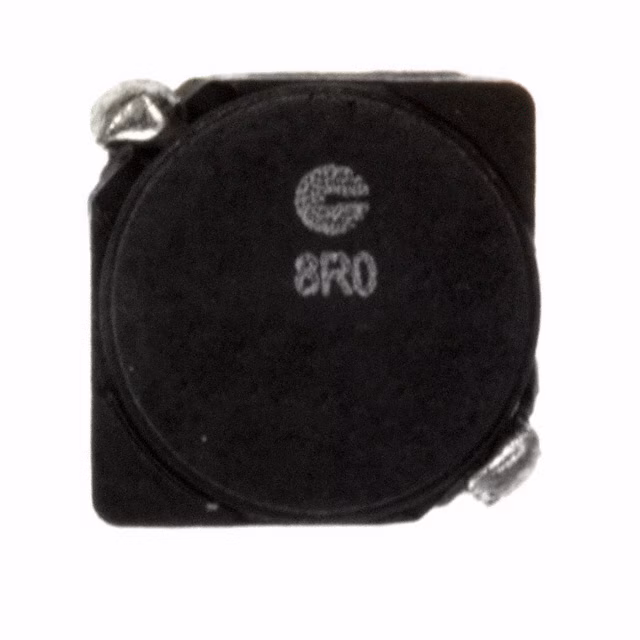

SD7030-8R0-RFIXED IND 7.8UH 2.2A 58 MOHM SMD |
0 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±30% | 2.2 A | 1.85A | Shielded | 58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
|
SD7030-120-RFIXED IND 11.5UH 1.9A 70MOHM SMD |
0 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 11.5 µH | ±30% | 1.9 A | 1.55A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
|
SD7030-121-RFIXED IND 115.2UH 670MA 755 MOHM |
0 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 115.2 µH | ±30% | 670 mA | 500mA | Shielded | 755mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
|
SD7030-150-RFIXED IND 14.6UH 1.7A 84MOHM SMD |
0 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 14.6 µH | ±30% | 1.7 A | 1.4A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
|
SD7030-180-RFIXED IND 17.3UH 1.7A 95MOHM SMD |
0 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 17.3 µH | ±30% | 1.7 A | 1.32A | Shielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
|
SD7030-181-RFIXED IND 174UH 540MA 966MOHM SM |
0 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 174 µH | ±30% | 540 mA | 400mA | Shielded | 966mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
